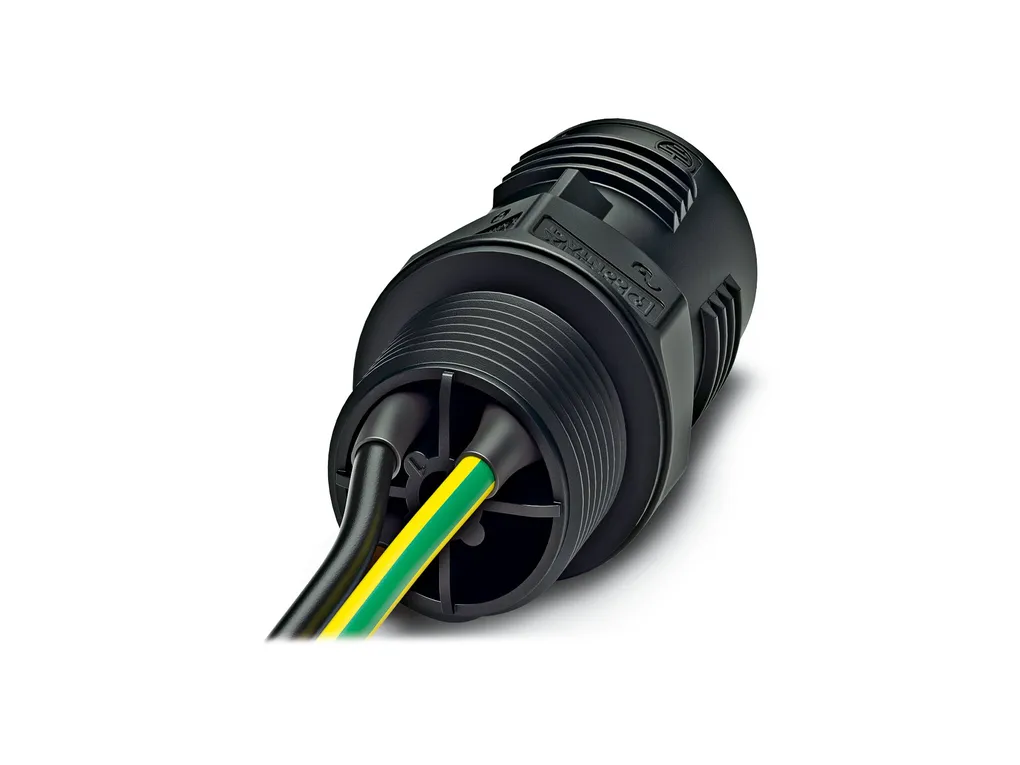

1410397 PHOENIX CONTACT -

QPD W 4PE6,0 M25 1,0 BK - Panel feed-through

QUICKON panel feed-through, 4+PE-pos., 2.5mm² ... 6.0mm²/690V/40A, without QUICKON nut, black, M25 connection thread with 5 welded-on 6.0mm² cable wires, 1.0m long, cut flat at the end.

Cod. Articolo: 1410397 copia - copy

Cod. Fornitore: 1410397 copia - copy

PHOENIX CONTACT

Product properties	Type: QPD 5x6,0 Product type: Panel feed-through Product family: QPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections: 10 Number of connections per position: 1 Series: QPD Coding: coded Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 2.5 mm² ... 6 mm² Conductor cross section solid: 2.5 mm² ... 6 mm² Connection cross section AWG: 14 ... 10 Tightening torque Union nut: 15 Nm Wrench size Union nut: 30 mm

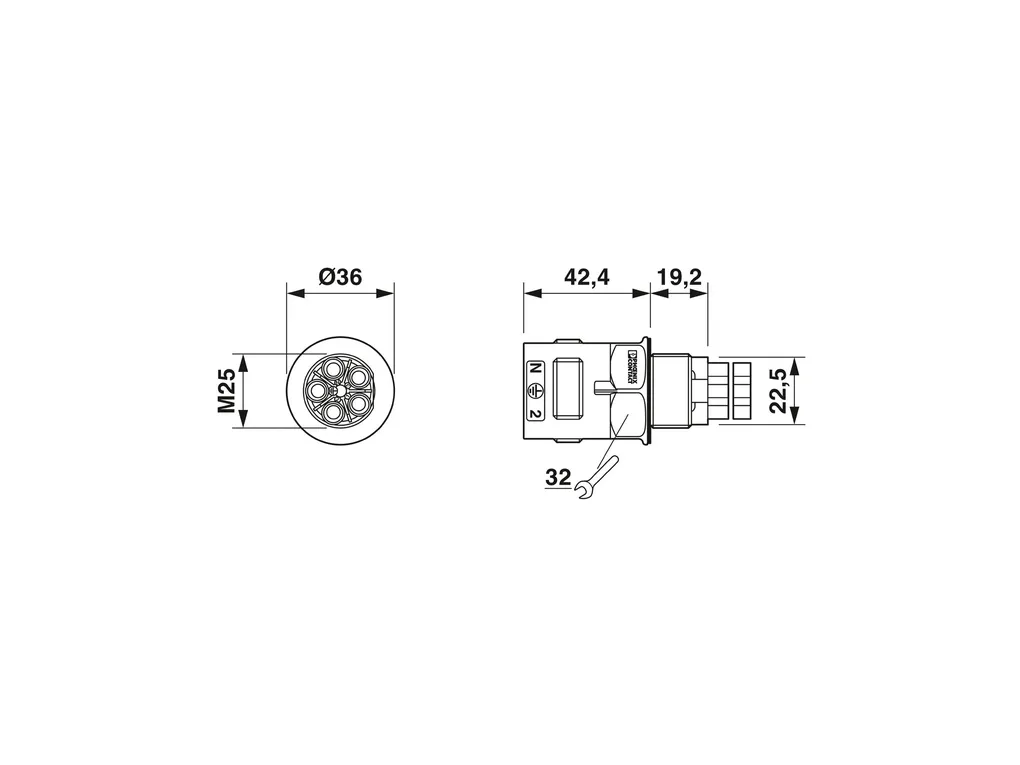

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/66e39ffbbe57064494e485c0449e7257/-S204x204-FJPG Width: 36 mm Height: 36 mm Length: 61.6 mm Diameter: 36 mm Wrench size for mounting: 30 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 40 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 VÃAC 690 VÃDC Nominal current I_N: 40 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50
Material specifications	Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE
Cable/line	Cable length: 1 m Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm Wire diameter including insulation: 2.95 mm ... 5 mm Position marking: 1, 2, 3, N, PE Single wire, color: black, brown, gray, blue, green/yellow Cable cross section: 6 mm² Material wire insulation: PVC/PE/TPE/rubber
Mounting	Mounting type: Front mounting M25 Wrench size: 30 mm Connection method: Single wires
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
