| Product properties | Product type: Y-distributor Sensor type: Ethernet hybrid Number of positions: 8 Application: Standard No. of cable outlets: 2 Shielded: yes Coding: Y Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC (Power and data) 30 VÃDC (Power and data) Nominal current IN: 6 A (Power) 1.5 A (Data) Transmission medium: Copper |
| Interfaces | Bus system: Ethernet Signal type/category: Ethernet hybrid CAT5 (IEC 11801), 100 Mbps |
| Signaling | Status display: No Status display present: No |

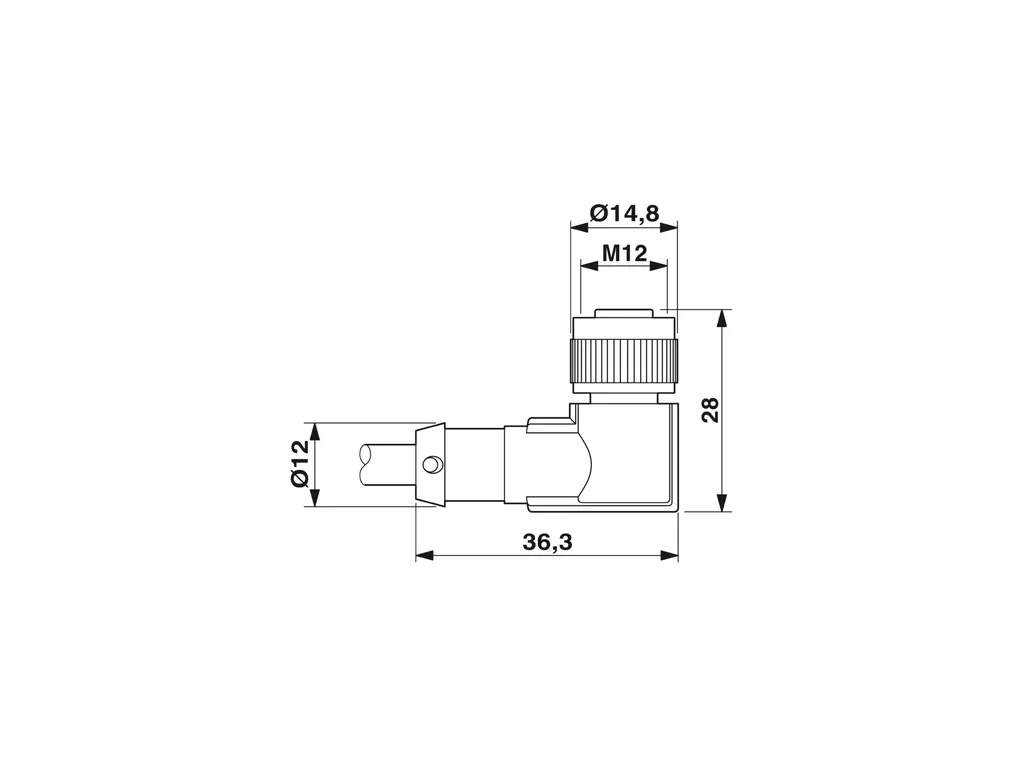

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8ce505506f39704e97ca3e757adb66a3/-S204x204-FJPG Center distance: 21 mm |
| Material specifications | Material: PP PA 6.6 TPE-U TPE-U Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Plug straight M12 Coding type: Y Connection 2 Type: Socket straight M12 Coding type: D |
| Cable/line | Signal type/category: Ethernet hybrid CAT5 (IEC 11801), 100 Mbps |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 IEC 61076-2-113 |
