| Product properties | Product type: Sensor/actuator cable Number of positions: 2 Application: Mobile hydraulics No. of cable outlets: 1 Shielded: no Coding: A |
| Material specifications | Flammability rating according to UL 94: HB Seal material: Silicon Material of grip body: TPU Contact material: CuZn (pin)/PhCuSn (socket) Contact surface material: nickel-plated Contact carrier material: PA 6.6 Material for screw connection: not available |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 24 VÃAC 24 VÃDC Nominal current IN: 8 A Protective circuit: unwired |
| Signaling | Status display: No Status display present: No |
| Connector | Connection 1 Type: Plug straight Superseal Clip locking Number of positions: 2 Coding type: A Locking type: Clip locking Connection 2 Type: Socket straight Superseal Clip locking Number of positions: 2 Locking type: Clip locking |

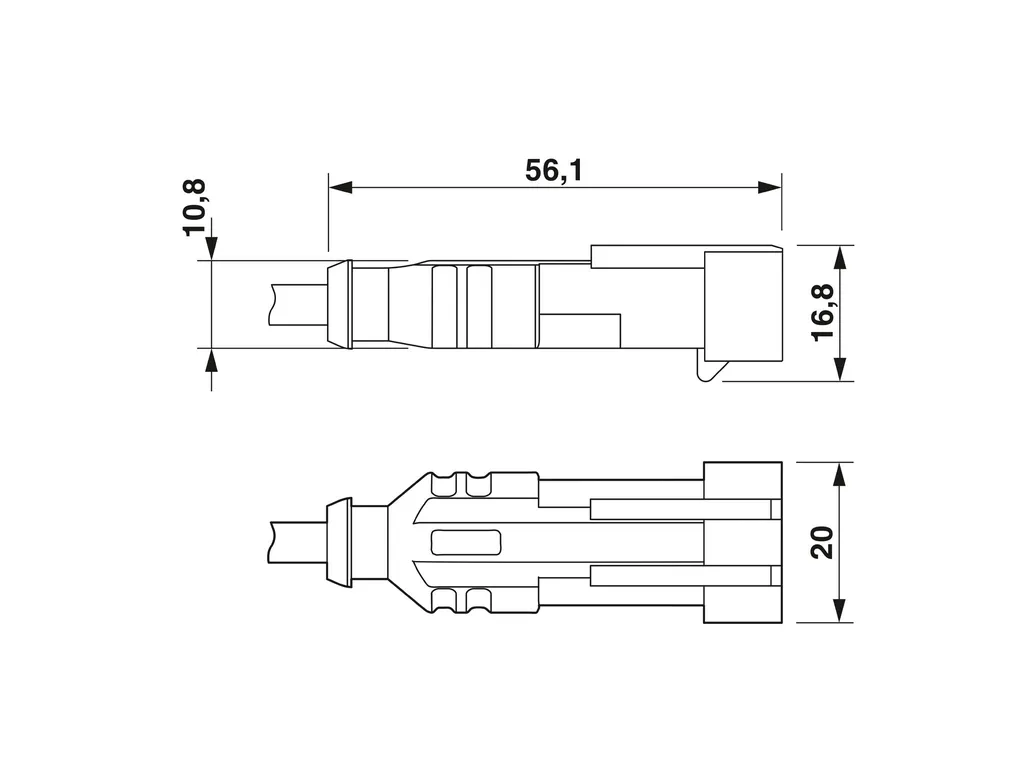

| Cable/line | Cable length: 0.6 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e148b2f0f6229d4c85b04a0a9a586e66/-S204x204-FJPG Cable weight: 33 kg/km UL AWM Style: 20549 / 10493 (80°C/300 V) Number of positions: 2 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 42x 0.15 mm AWG signal line: 18 Conductor cross section: 2x 0.75 mm² (Signal line) Wire diameter incl. insulation: 1.69 mm ñ0.05 mm (Signal line) External cable diameter: 4.8 mm ñ0.15Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, blue Thickness, insulation: ââ°¥ 0.21 mm Thickness, outer sheath: ââ°¥ 0.38 mm Overall twist: 2 wires, twisted Max. conductor resistance: ââ°¤ 26 é/km (at 20ðC) Insulation resistance: ââ°¥ 1 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 4000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 in accordance with DINÃENÃ50267-2-1 Flame resistance: according to ULÃ758/1581 (horizontal) in accordance with ULÃ758/1581 FT2 according to DINÃENÃ60332-2-2 Resistance to oil: According to DIN EN 60811-2-1, 168 h at 100°C According to UL 758, 168 h at 60°C Other resistance: hydrolysis and microbe resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Low adhesion abrasion-resistant Special properties: flexible Flexible cable conduit capable Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -25°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 IP69K Ambient temperature (operation): -20°C ... 85°C (Superseal) |
