| Notes | General: For contact inserts HC-D15, A10 |
| Product properties | Type: D15 Product type: Housing with locking latch Product family: HC-EVO-D Application: Standard No. of cable outlets: 1 Housing type: Coupling housings Cable outlet: straight Pg screw connection: none |

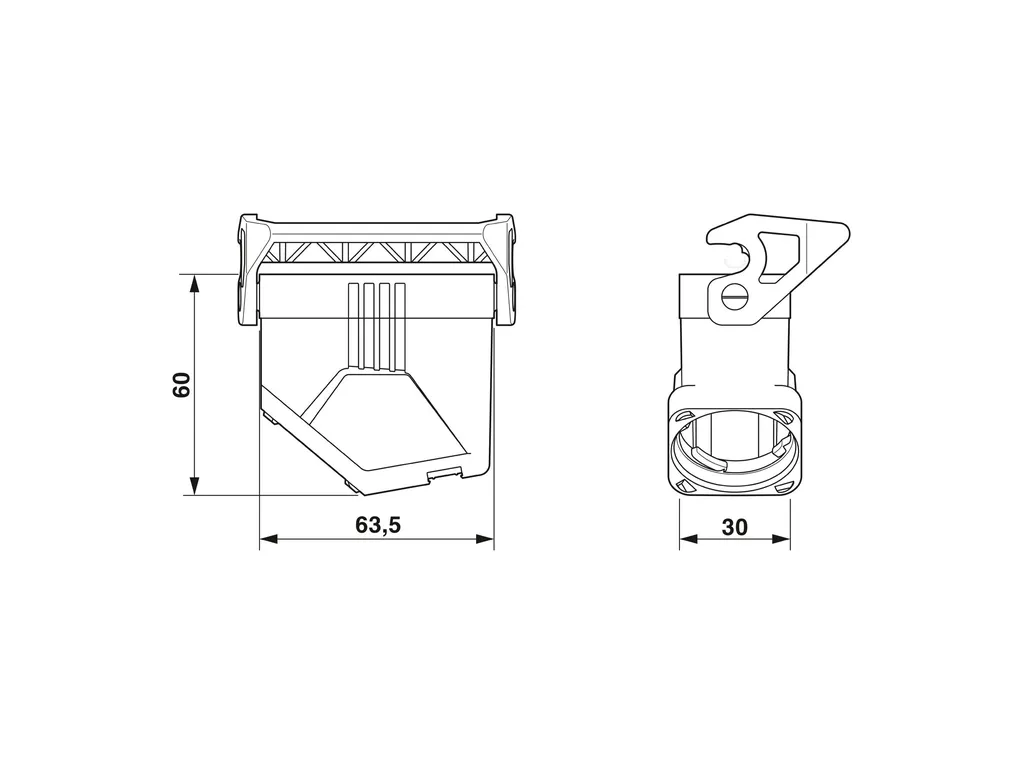

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/deda4cff56f7194c96adea26f4ed4b54/-S204x204-FJPG Width: 30 mm Height: 60 mm Length: 63.5 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) V0 (Interlock) Locking latch material: PA Impact strength: IK08 Housing material: PA |
| Mechanical properties | Mechanical data Locking type: Latch |
| Mounting | Assembly instructions: The coupling housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. The EVO screw connection is assembled by hand or using a pipe wrench, for example. |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 Enclosure rating (NEMA): 12 (ULÃ50e) Impact strength: IK08 Ambient temperature (operation): -40°C ... 125°C |
