1411455 PHOENIX CONTACT -

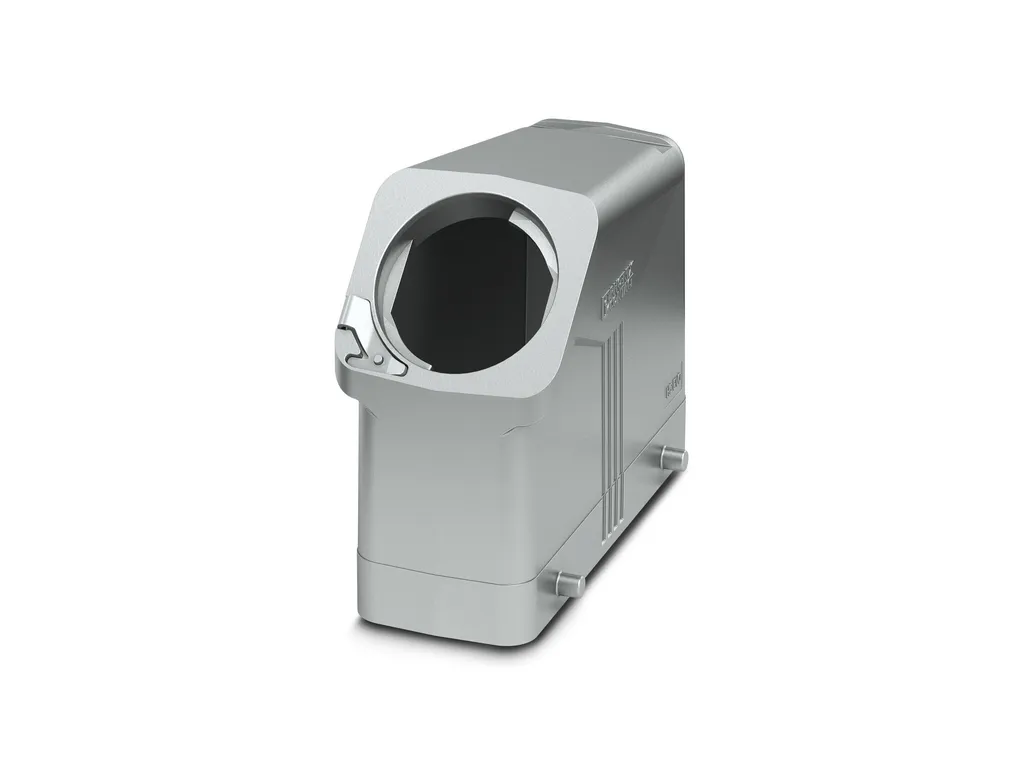

HC-EVO-B10-HLFD-EL-AL - Housing

HEAVYCON EVO sleeve housing, EMC version, without powder coating, with bayonet flange for EVO screw connection, B10, for double locking latch, height: 64mm, without EVO screw connection.

Cod. Articolo: 1411455 copia - copy

Cod. Fornitore: 1411455 copia - copy

PHOENIX CONTACT

Notes	General: For contact inserts HC-B10, BB18, DD42, M, K8/24
Product properties	Type: B10 Product type: Housing with locking latch Application: Standard No. of cable outlets: 1 Housing type: Sleeve housing Cable outlet: straight Pg screw connection: none
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a2534a1e42f38d45b6ec784ce596e061/-S204x204-FJPG Width: 44 mm Height: 64 mm Length: 73 mm
Material specifications	Housing surface material: uncoated Impact strength: IK09 Housing material: Die-cast aluminum, salt water resistant
Mechanical properties	Mechanical data Locking type: Pin
Mounting	Assembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench.
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP67 Enclosure rating (NEMA): 4 (ULÃ50e) 4X (ULÃ50e) 12 (ULÃ50e) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C
