1411882 PHOENIX CONTACT -

HC-HPR-B10-HHWH-1TTM25-EM-BK - Housing

HEAVYCON B10 sleeve housing, HPR series, with screw locking, with M25 thread, straight outlet, for increased environmental and EMC requirements

Cod. Articolo: 1411882 copia - copy

Cod. Fornitore: 1411882 copia - copy

PHOENIX CONTACT

Notes	General: For contact inserts HC-B10, BB18, DD42, M, K8/24
Product properties	Type: B10 Product type: Housing with screw locking Product family: HC-HPR-B Application: Railway applications No. of cable outlets: 1 Type of the screw connection: 1x M25 Housing type: Sleeve housing Protective cover: no Series: HPR-B10 Cable outlet: straight Pg screw connection: none

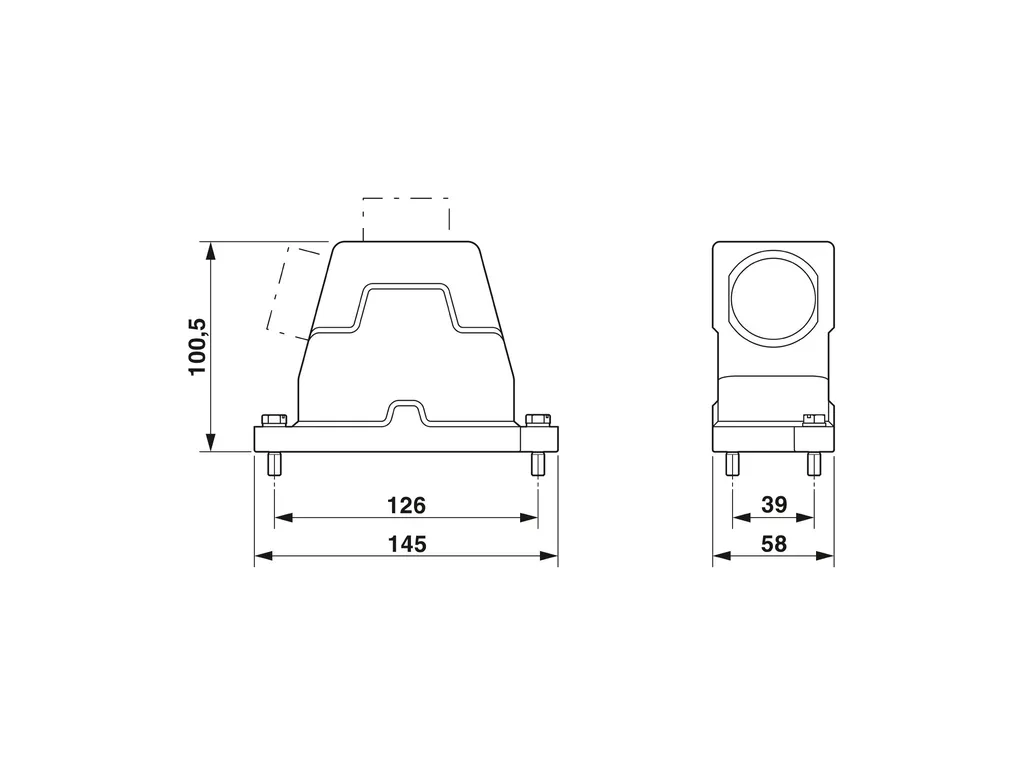

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1f2031852cb0d04087a8fc7171b5cd3f/-S204x204-FJPG Width: 58 mm Height: 100.5 mm Length: 145 mm
Material specifications	Housing surface material: Powder-coated, black Locking latch material: Stainless steel Impact strength: IK09 Housing material: die-cast aluminum
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (0.5Ãbar / 24Ãh) IP69 (ISOÃ20653:2013-02) Impact strength: IK09 Ambient temperature (operation): -40°C ... 125°C
Mechanical properties	Mechanical data Type of the screw connection: 1x M25 Locking type: Screw
Mounting	Assembly instructions: M6 locking screw, slotted hexagon head screw (SW10), tightening torque: 4 Nm
