1412019 PHOENIX CONTACT -

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

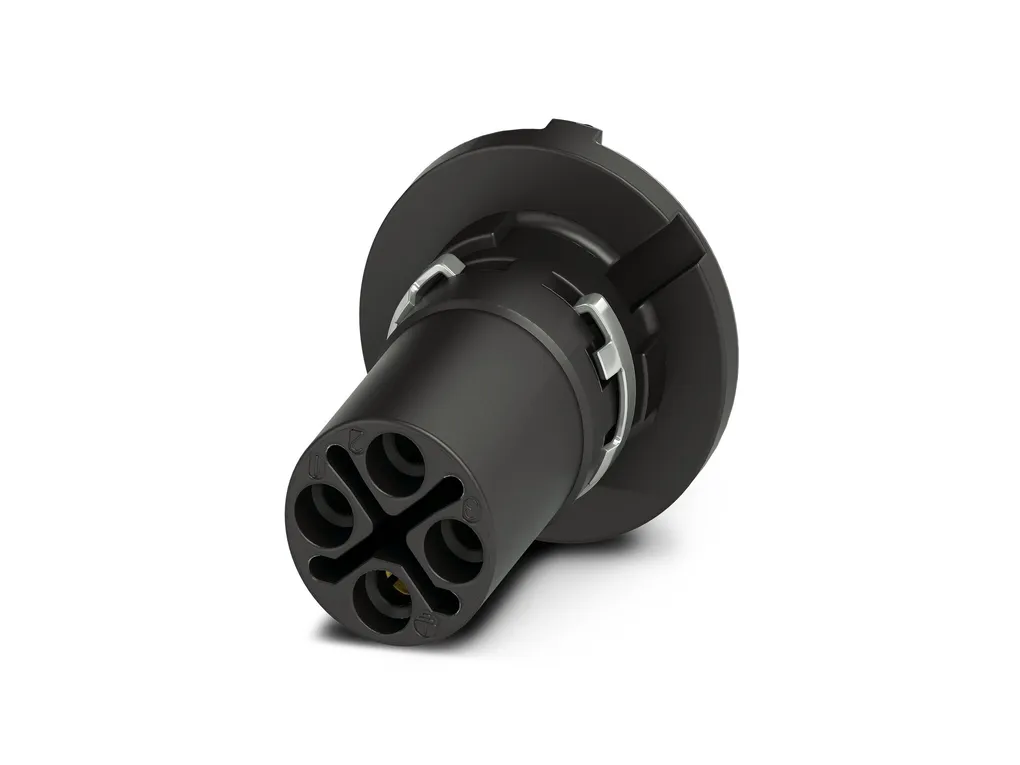

Product properties	Product type: Contact insert Sensor type: Power Number of positions: 4 Application: Power Seal present: no Shielded: yes Coding: T Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 1.5 kV Contact resistance: Ã¢Ã¢°¤ 3 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 63 V Nominal current I_N: 12 A
Interfaces	Signal type/category: Power
Material specifications	Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: Au Contact carrier material: PA
Connector	Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: T
Cable/line	Signal type/category: Power
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Environmental and real-life conditions	Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when plugged in Ambient temperature (operation): -25°C ... 105°C (Plug / socket) -55°C ... 105°C (without mechanical actuation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 Note: In line with

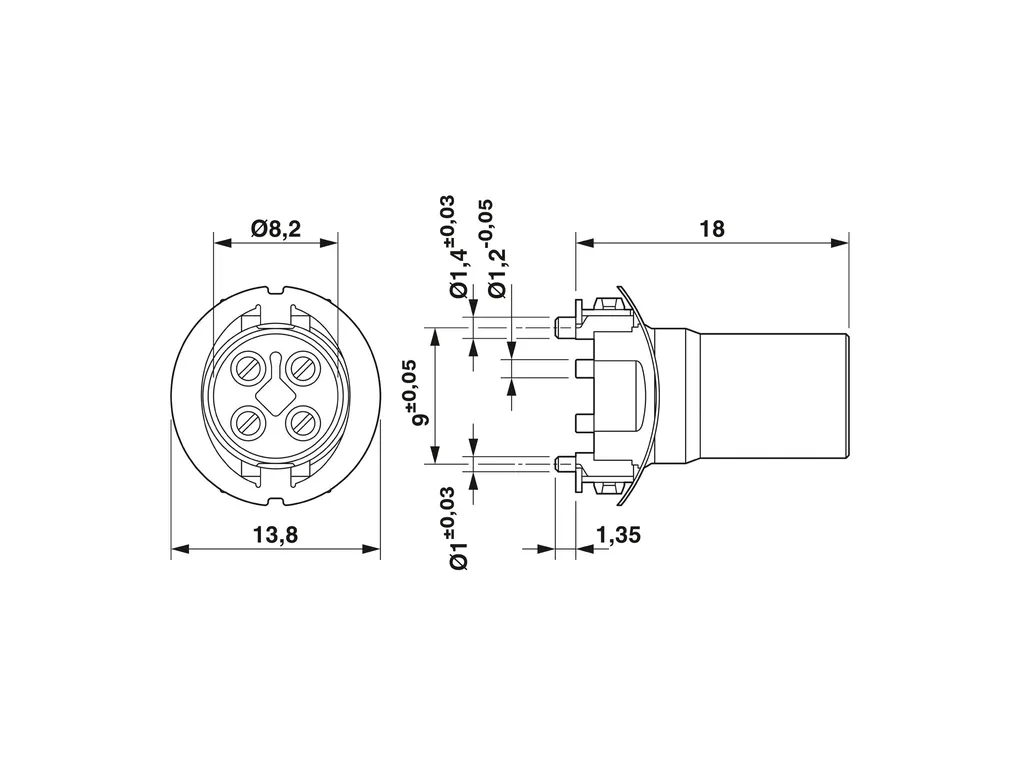

Mounting	Mounting type: PCB mounting Connection method: SMD
Packaging specifications	Type of packaging: Belt
