1412971 PHOENIX CONTACT -

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Number of slots: 1 Shielded: no Cable outlet: straight
Interfaces	Bus system: Ethernet Signal type/category: Ethernet CAT5 (IEC 11801:2002), 1 Gbps
Signaling	Status display: No Status display present: No
Electrical properties	Rated voltage (III/3): 72 V (DC) Nominal voltage U_N: 48 V Nominal current I_N: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002)
Material specifications	Flammability rating according to UL 94: V0 Outer sheath, material: PVC

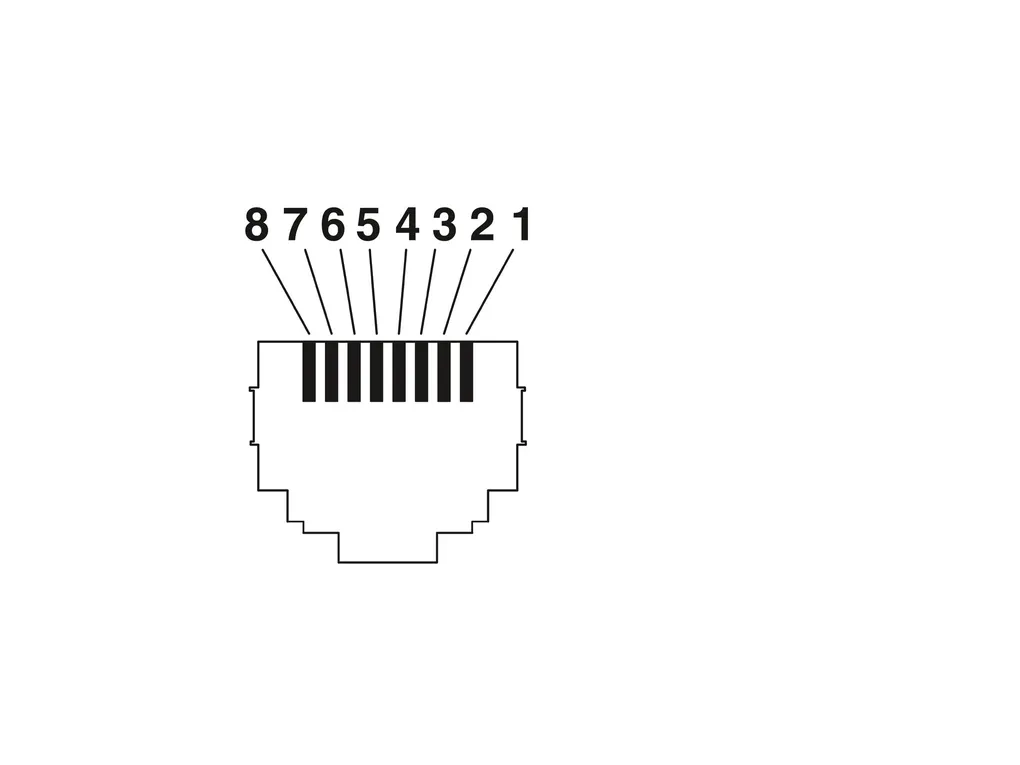

Connector	Connection 1 Type: Plug straight RJ45 / IP20 Number of positions: 8 (8) 8 Shielded: yes Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 750 Degree of protection: IP20 Ambient temperature (operation): -25°C ... 80°C Connection 2 Type: Plug straight RJ45 / IP20 Number of positions: 8 (8) 8 Shielded: yes Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Ambient temperature (operation): -25°C ... 80°C Degree of protection: IP20
Cable/line	Cable length: 15 m Cable type: Ethernet Cable structure: 4x2xAWG24/7; UTP Signal type/category: Ethernet CAT5 (IEC 11801:2002), 1 Gbps External cable diameter: 5.40 mm Outer sheath, material: PVC External sheath, color: gray Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Cable cross section: 0.22 mm² Conductor structure signal line: 7x 0.20 mm AWG signal line: 24
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 (RJ45 connector) IP20 Ambient temperature (operation): -25°C ... 80°C (RJ45 connector)
