Non disponibile
| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Number of slots: 1 Shielded: no Cable outlet: straight |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Nominal voltage UN: 48 V Nominal current IN: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 1 Gbps |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Flammability rating according to UL 94: V0 Outer sheath, material: PVC |

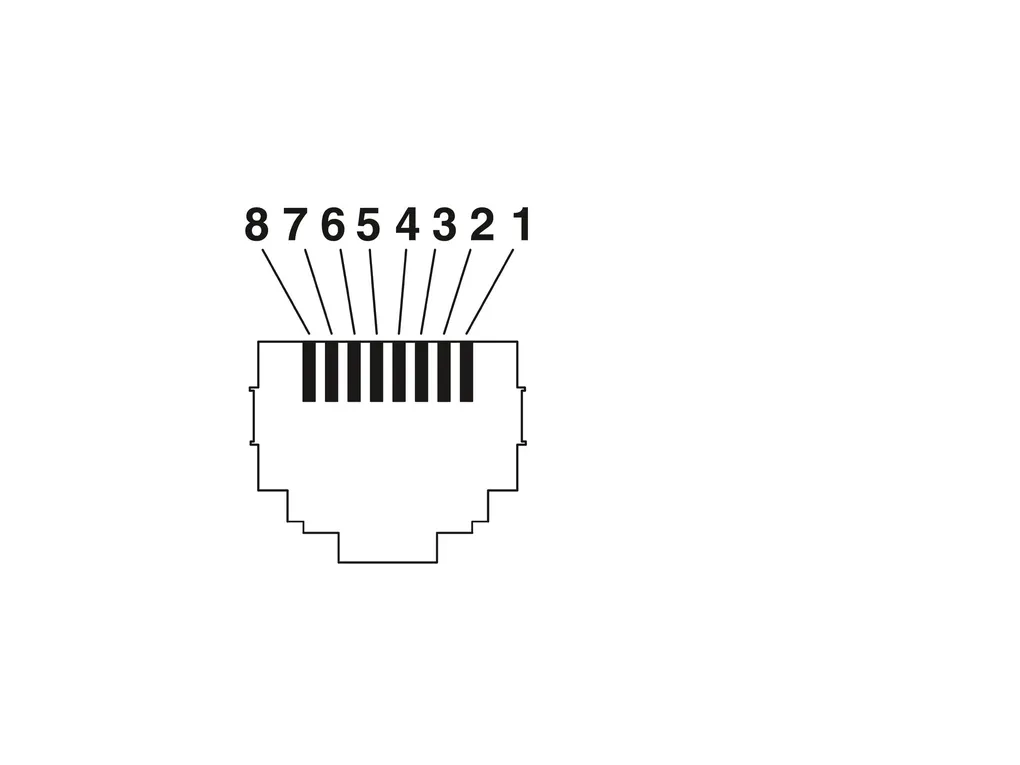

| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Handle color: gray Material: CuSn (Contact) Au (Contact surface) PVC (Housing) Insertion/withdrawal cycles: ââ°¥ 750 750 Degree of protection: IP20 Ambient temperature (operation): -25°C ... 80°C Number of positions: 8 Connection 2 Type: Plug straight RJ45 Shielded: yes Handle color: gray Material: CuSn (Contact) Au (Contact surface) PVC (Housing) Insertion/withdrawal cycles: ââ°¥ 750 Ambient temperature (operation): -25°C ... 80°C Number of positions: 8 Degree of protection: IP20 |
| Cable/line | Cable length: 10.00 m Cable type: Ethernet Cable structure: 4x2xAWG24/7; UTP External cable diameter: 5.40 mm Outer sheath, material: PVC External sheath, color: gray Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Cable cross section: 0.22 mm² Conductor structure signal line: 7x 0.20 mm AWG signal line: 24 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 (RJ45 connector) IP20 Ambient temperature (operation): -25°C ... 80°C (RJ45 connector) |
