| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: SC-RJ Product type: Panel mounting frame Number of positions: 2 Connection profile: SC-RJ Cable outlet: straight Insulation characteristics Degree of pollution: 2 |
| Electrical properties | Transmission medium: FO |
| Connection data | Connection technology Connection method: Push-Pull |

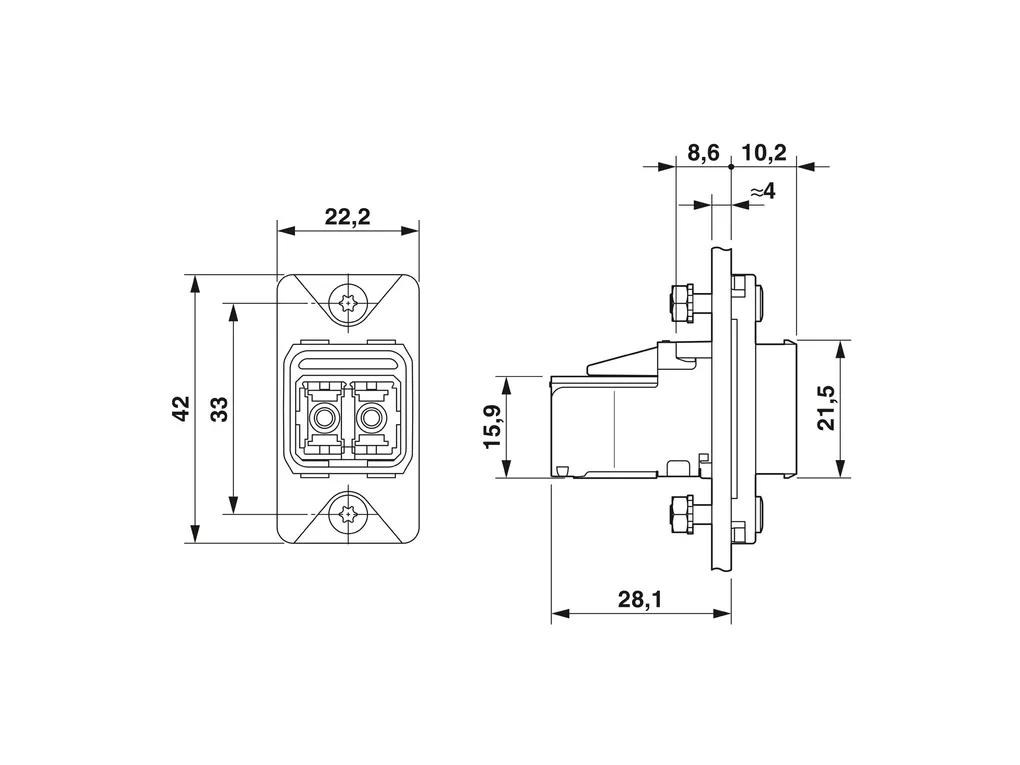

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/37b73274278e9947b1a37013a591ee60/-S204x204-FJPG Width: 22.2 mm Height: 42 mm Mechanical characteristics Ferrule diameter: 2.50 mm |
| Material specifications | Material: Metal Flammability rating according to UL 94: V0 Seal material: NBR Housing surface material: nickel-plated Housing material: Metal |
| Cable/line | External cable diameter: ââ°¤ 10 mm (of 5Ãmm) Resistance to oil: yes Flame resistance: yes FO cable Fiber type: GOF, PCF, POF |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Ambient temperature (assembly): -5°C ... 40°C Resistance to oil: yes |
| Standards and regulations | Flame resistance: yes Resistance to oil: yes |
| Mounting | Connection method: Push-Pull |
