1414361 PHOENIX CONTACT -

HC-M-02-CT-F - Contact insert module

Contact insert module, number of positions: 2, power contacts: 2, control contacts: 0, Socket, Crimp connection, 830 V, 40 A, 1.5 mm²...10 mm², application: Power

Cod. Articolo: 1414361 copia - copy

Cod. Fornitore: 1414361 copia - copy

PHOENIX CONTACT

Notes	General: For HEAVYCON housing type B6 to B48, HC-M-B...MF-... hinged module carrier frame required, CK4,0...... crimp contacts, crimp contacts not supplied as standard. Connectors may be operated only when there is no load/voltage.
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required
Product properties	Product type: Modular contact insert Number of positions: 2 Connection profile: 2 Contact numbering: 1 - 2 Application: Power Number of module slots: 1 No. of power contacts: 2 No. of control contacts: 0 Contact material type: turned Series: HC-M-02 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: Crimp connection Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 1.5 mm² ... 10 mm² Connection cross section AWG: 16 ... 8 Stripping length of the individual wire: 9 mm (for 1.5 ... 2.5Ãmm²) 14 mm (for 4 mm² ... 6 mm²) 14 mm (for 10 mm²)

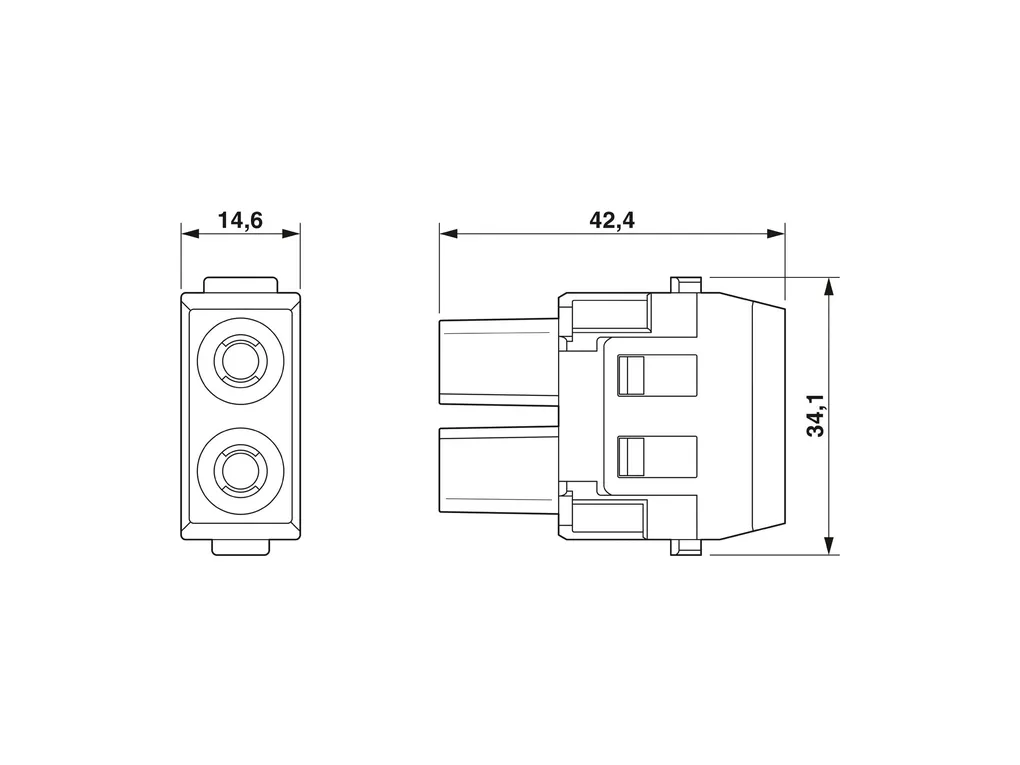

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/477dbf2374b2f84ba6ae5ae2f99ccf12/-S204x204-FJPG Width: 34.2 mm Height: 42.4 mm Length: 14.6 mm Mechanical characteristics Contact diameter: 4 mm
Electrical properties	Rated voltage (III/2) contacts: 1000 V Rated voltage (III/3): 830 V Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 8 kV Rated surge voltage: 8 kV Rated current: 40 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 500
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
Standards and regulations	Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3)
