| Mounting | Assembly instructions: 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Product properties | Product type: Full screw connection No. of conductors: 1 Manufacturer: BIMED Manufacturer Designation: BM-12 Shielded: no Execution of the strain relief: A |
| Characteristics | Category of shock impact: 2 Design, Strain relief: A |

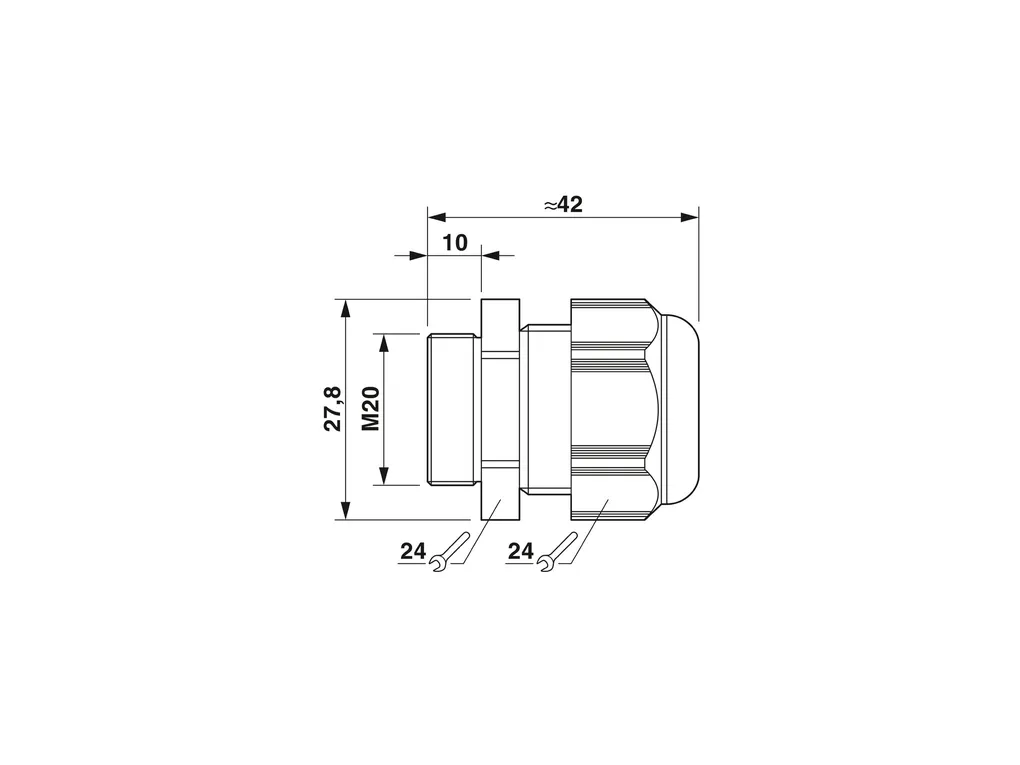

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b6ac5f166f64714981ae05203c6548a1/-S204x204-FJPG Length: 42 mm Length of the connecting thread: 10 mm Hole diameter: 20.1 mm ... 20.2 mm Wrench size, union nut: 24 mm Wrench size, support: 24 mm Hexagon angular dimension: 27.8 mm Thread type connection side: M20 x 1.5 Thread pitch: 1.5 mm |
| Connection data | Tightening torque: 4 Nm ñ0.5ÃNm (Cap nut) 3.5 Nm (Support sleeve) |
| Material specifications | Flammability rating according to UL 94: V2 Seal material Cable seal: CR Material for screw connection: PA |
| Cable/line | External cable diameter (Cable 1): 6 mm ... 12 mm External cable diameter (): 9 mm ... 12 mm (for UL 514 B) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (5Ãbar / 0.5Ãh) Enclosure rating (NEMA): 1 4 4X 12 13 Ambient temperature (operation): -40°C ... 100°C (static) |
