| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Assembly instructions: If the conductor is to be reconnected, it must be cut off above the last contact point. Connection method: Insulation displacement connection |
| Product properties | Product type: Cable connector Sensor type: Universal Number of positions: 8 No. of cable outlets: 2 Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 3 |

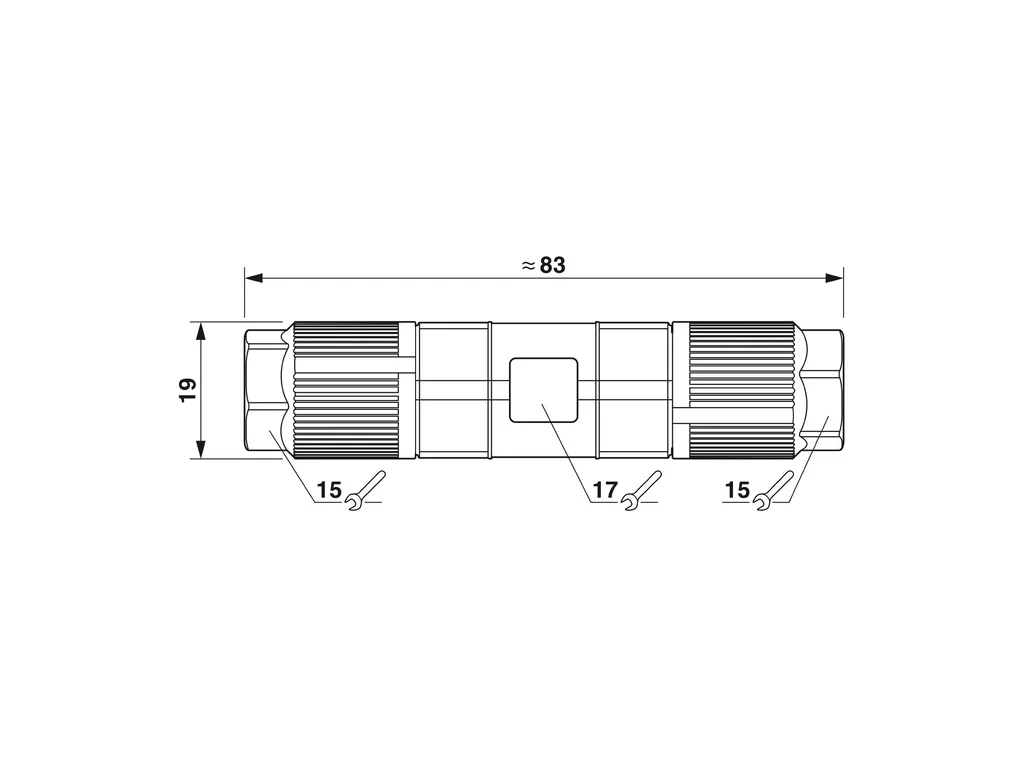

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1b966ecefe0bce429841613b6949efd2/-S204x204-FJPG Length: 83 mm Wrench size, union nut: 15 mm Wrench size, counter nut: 17 mm External dimensions Outside diameter: 5 mm ... 9.7 mm |
| Connection data | Connection technology Connection method: Insulation displacement connection Frequency of connections between conductors of the same cross section: 10 Conductor connection Conductor cross section flexible: 0.14 mm²0.5 mm² Conductor cross section AWG: 2620 Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: Class 2-6 Tightening torque: 5 Nm (Pressure nut) Wrench size, union nut: 15 mm Wrench size, contact carrier: 17 mm Wire diameter including insulation: 0.75 mm ... 2 mm Pin assignment Contact | Color (signal designation) | Contact (optional): 1 = WH 2 = BN 3 = GN 4 = YE 5 = GY 6 = PK 7 = BU 8 = RD |
| Electrical properties | Rated surge voltage: 0.8 kV Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 2 A |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: Zinc die-cast, nickel-plated Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) Wire insulation material: PVC / PE / PP / rubber |
| Connector | Connection 1 Head design: Cable connectors |
| Cable/line | Signal type/category: Universal |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (assembly): -5°C ... 50°C |
| Standards and regulations | Testing Standards/regulations: PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINÃENÃ45545-2 (Risk level HL1 - HL3) Standards/specifications: according to IEC 61076-2-101 ENÃ50155:2001 Standard designation: Shock, vibration |
