1414677 PHOENIX CONTACT -

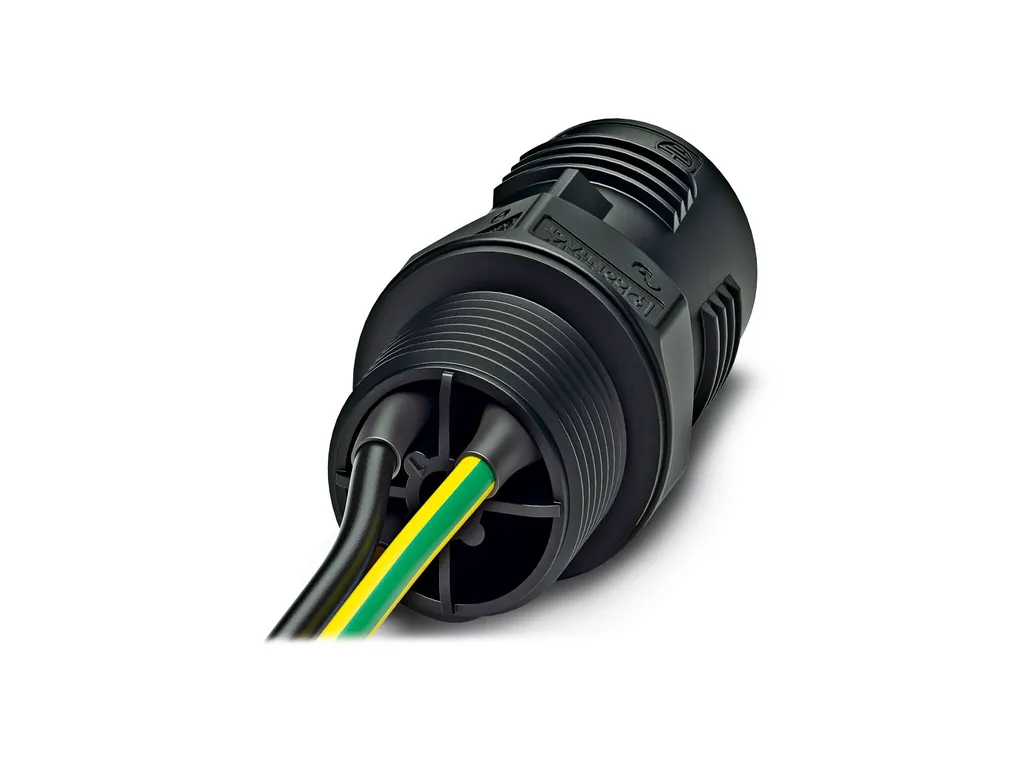

QPD W 3PE1,5 4-9 M20 FC BK - Panel feed-through

Panel feed-through, QUICKON connection, number of positions: 3+PE, 690 V, 15 A, black, with QUICKON nut, external cable diameter: 5 mm ... 9.5 mm, assembly thread: M20, Spade connection (For slip-on sleeves according to DIN 46247-2), 1.5 mm²

Cod. Articolo: 1414677 copia - copy

Cod. Fornitore: 1414677 copia - copy

PHOENIX CONTACT

Product properties	Type: QPD 4x1,5 Product type: Panel feed-through Product family: QPD Number of positions: 4 Connection profile: 3+PE Position marking: 1, 2, 3, PE Number of connections: 10 Number of connections per position: 1 Series: QPD Coding: Coding profile Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 1.5 mm² Conductor cross section solid: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Tightening torque Union nut: 8 Nm Tightening torque Locking nut: 5 Nm

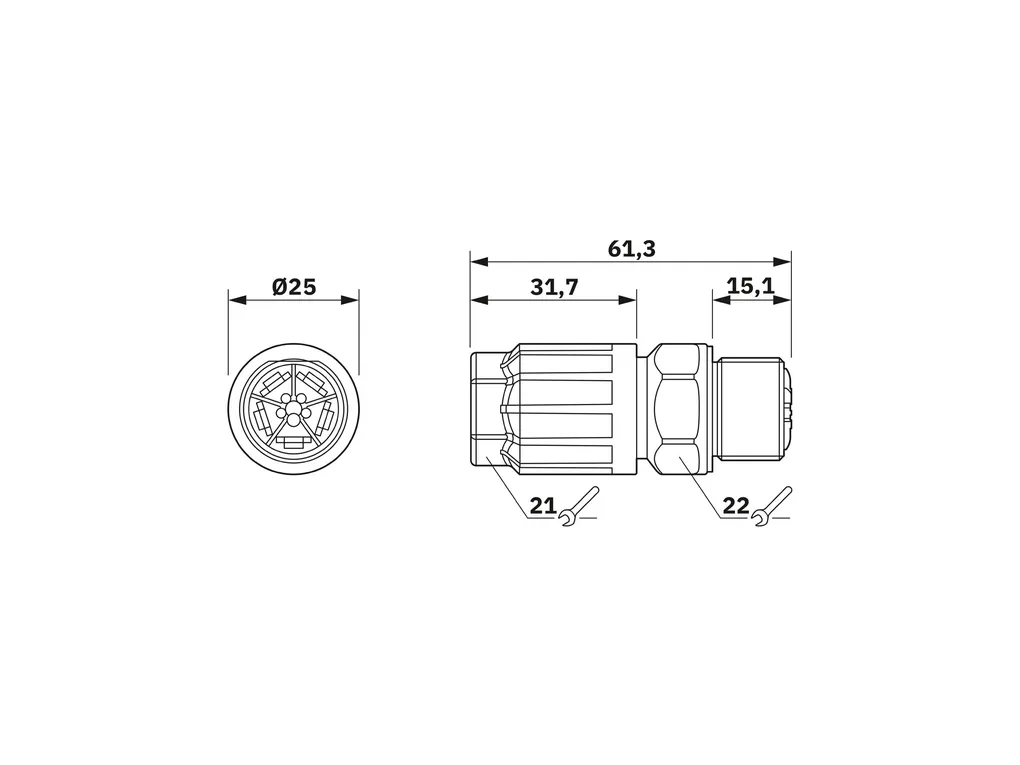

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6f9a5ceae7e01f4d9e6dace857fc7c8f/-S204x204-FJPG Width: 25 mm Height: 25 mm Length: 61.3 mm Diameter: 25 mm Dimensions of slip-on connection: 4.8 x 0.8 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 VÃAC 690 VÃDC Nominal current I_N: 15 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50
Material specifications	Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 5 mm ... 9.5 mm Wire diameter including insulation: 1.6 mm ... 3 mm Position marking: 1, 2, 3, PE Cable cross section: 1.5 mm² Material wire insulation: PVC/PE/TPE/rubber
Mounting	Mounting type: Front mounting M20 Connection method: Spade connection
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
