| Product properties | Type: T distributor Product type: Power distributor Product family: QPD Number of positions: 4 Connection profile: 3+PE Position marking: 1, 2, 3, PE Number of connections: 2 No. of cable outlets: 3 Series: QPD Coding: Coding profile Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Connection data | Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 1.5 mm² Conductor cross section solid: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Tightening torque Union nut: 8 Nm Tightening torque Locking nut: 5 Nm |

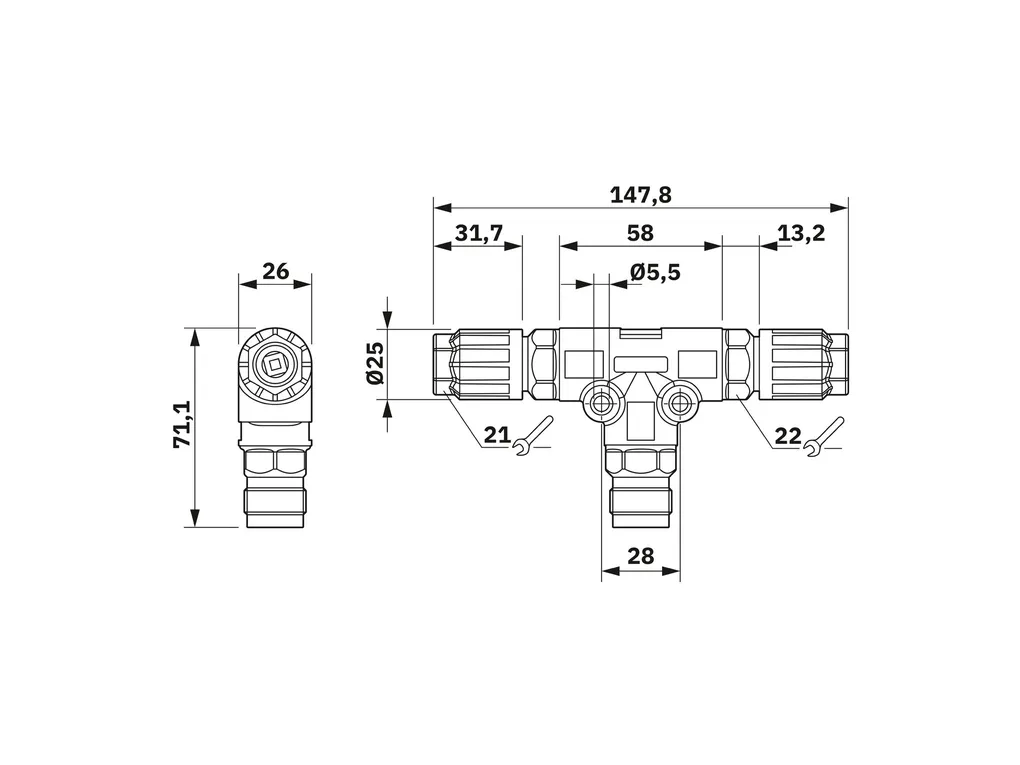

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ab4e4e9f0c252347bea4b6fe5720ab13/-S204x204-FJPG Width: 71.1 mm Height: 26 mm Length: 147.8 mm |
| Electrical properties | Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Contact resistance: < 3 mé rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage UN: 690 VÃAC 690 VÃDC Nominal current IN: 17.5 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: max. 50 (QUICKON connections max. 10) |
| Material specifications | Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE |
| Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 10 mm ... 13 mm Wire diameter including insulation: 1.6 mm ... 3 mm Position marking: 1, 2, 3, PE Material wire insulation: PVC /PE / rubber / TPE |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C |
