1414721 PHOENIX CONTACT -

Mounting	Wrench size: 19 mm
Product properties	Type: H-distributor Product type: Power distributor Product family: QPD Number of positions: 3 Connection profile: 2+PE Position marking: 1, 2, PE Number of connections: 3 No. of cable outlets: 4 Series: QPD Coding: Coding profile Insulation characteristics Overvoltage category: III Degree of pollution: 3
Connection data	Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 0.5 mm² ... 1.5 mm² Conductor cross section solid: 0.5 mm² ... 1.5 mm² Connection cross section AWG: 20 ... 16 Tightening torque Union nut: 8 Nm Wrench size Union nut: 19 mm

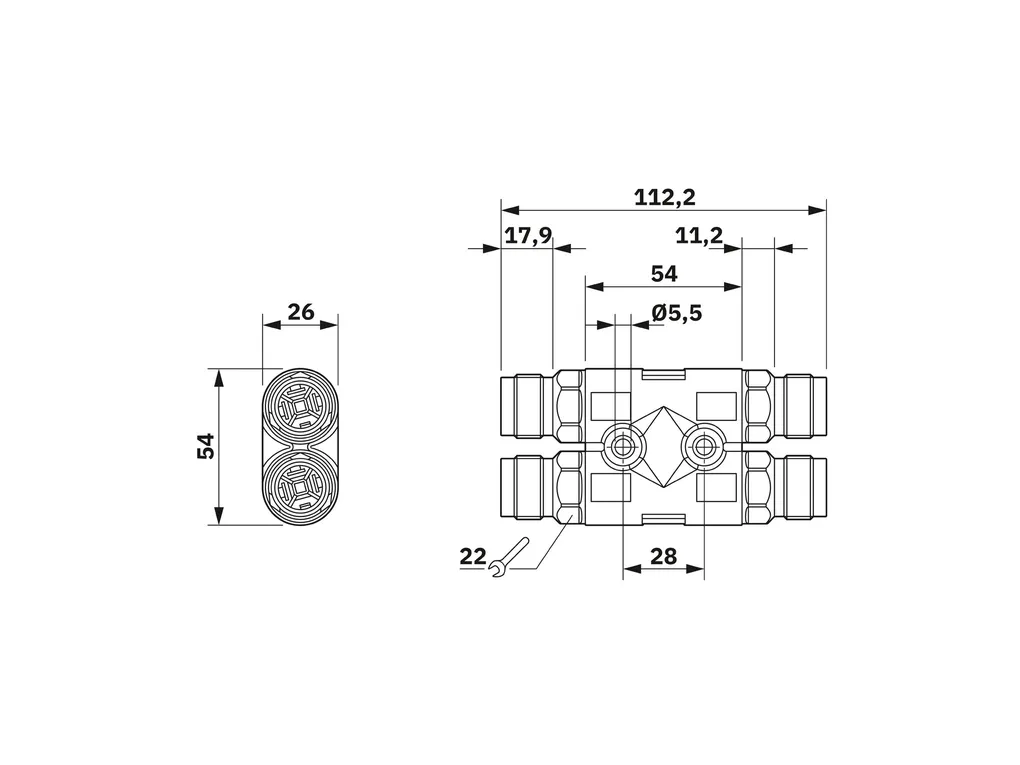

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/34bd5681d1d4bf439b877f999501d652/-S204x204-FJPG Width: 54 mm Height: 26 mm Length: 143.8 mm Wrench size for mounting: 19 mm
Electrical properties	Rated surge voltage (II/2): 8 kV Rated surge voltage (III/2): 8 kV Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Contact resistance: < 3 mÃ© rated voltage (II/2): 1000 V rated voltage (III/2): 1000 V Rated voltage (III/3): 690 V Nominal voltage U_N: 690 VÃAC 690 VÃDC Nominal current I_N: 17.5 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: max. 50
Material specifications	Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm Wire diameter including insulation: 1.6 mm ... 3 mm Position marking: 1, 2, PE Material wire insulation: PVC /PE / rubber / TPE
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K (Distance from the nozzle 150Ãmm) Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
