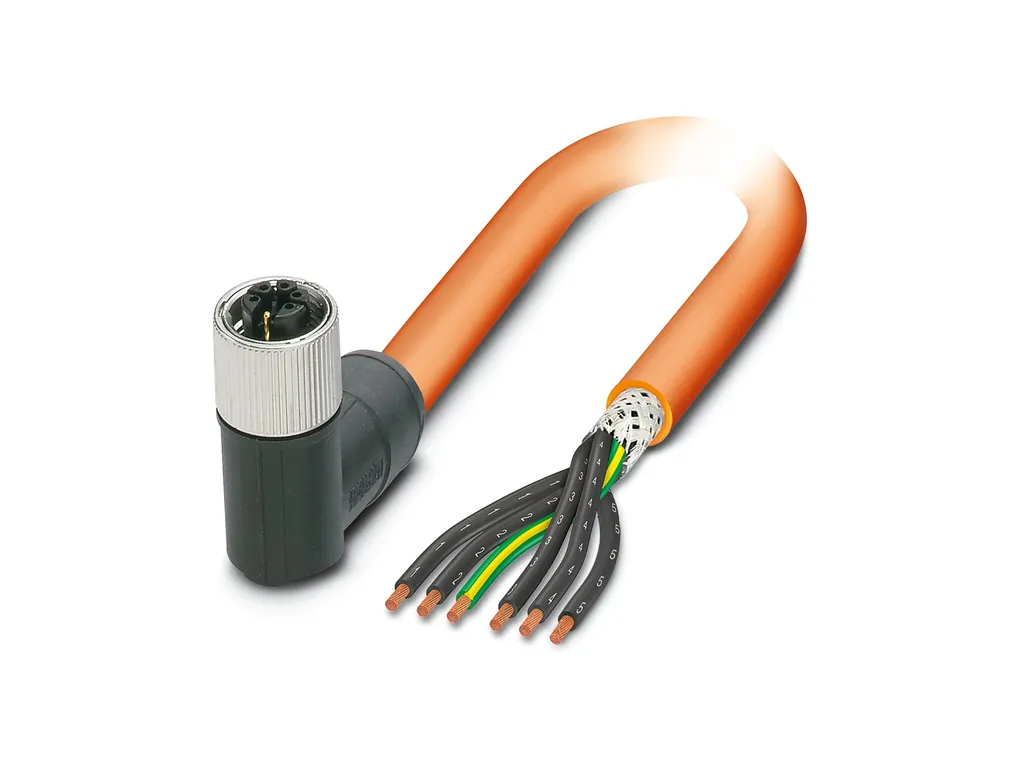

| Product properties | Product type: Power cable Number of positions: 6 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: M Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 690 VÃAC Nominal current IN: 8 A Protective circuit: unwired |
| Connector | Connection 1 Type: Plug angled M12 Coding type: M (Power) Connection 2 Type: free cable end |
| Cable/line | Cable length: 3 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e9458ae8f910c04d9ad4540d7b36199a/-S204x204-FJPG Cable weight: 220 kg/km UL AWM Style: 2570 / 10914 (80°C/1000 V) Number of positions: 6 Shielded: no Cable type: PVC blackÃ[PVC] Conductor cross section: 6x 1.5 mm² Wire diameter incl. insulation: 2.4 mm ñ0.05 mm External cable diameter: 9.75 mm ñ0.25Ãmm Outer sheath, material: PVC External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, black 3, black 4, black 5, green/yellow Thickness, insulation: ââ°¥ 0.36 mm Thickness, outer sheath: approx. 0.76 mm Max. conductor resistance: ââ°¤ 15 é/m (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 1000 VÃAC Test voltage: ââ°¥ 10000 VÃAC (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 2000000 Flame resistance: According to ULÃ758/1581 (Cable Flame) according to ULÃ758/1581 FT1 According to DINÃENÃ60332-1-2 Resistance to oil: according to DINÃENÃ60811-404, 168Ãh at 60ðC Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 (without preloading, as additional test in accordance with IEC 60529) Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
