| Product properties | Product type: Sensor/actuator cable Application: Standard Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 V AC 60 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: no Status display present: No |

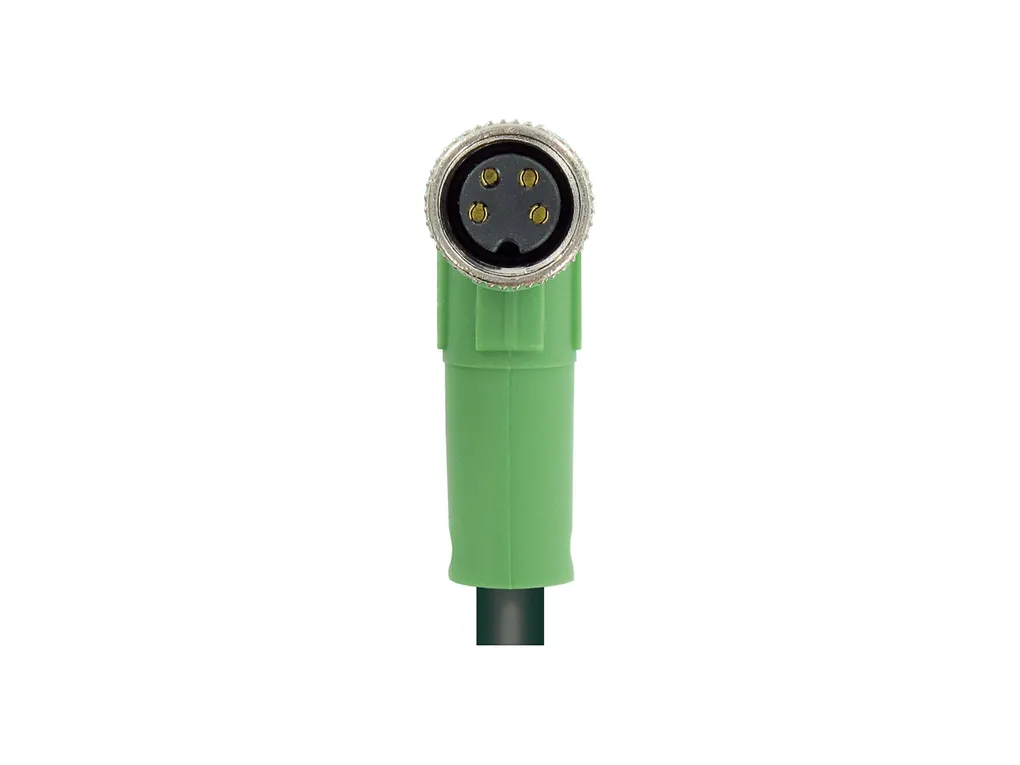

| Connector | Connection 1 Type: Plug straight M8 Number of positions: 4 Coding type: A Connection 2 Type: Socket angled M8 Number of positions: 4 Coding type: A |
| Cable/line | Cable length: 0.3 m PVC black [PVC] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9010/full/b1500?format=jpg Cable weight: 33 kg/km UL AWM Style: 2464 / 1729 (80 °C/300 V) Number of positions: 4 Shielded: no Cable type: PVC black [PVC] Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Conductor cross section: 4x 0.25 mm² (Signal line) Wire diameter incl. insulation: 1.17 mm ñ0.05 mm External cable diameter: 4.40 mm ñ0.15 mm Outer sheath, material: PVC External sheath, color: black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) ââ°¥ 0.76 mm (Outer cable sheath) Overall twist: 4 wires, twisted Max. conductor resistance: max. 79 é/km (at 20 °C) Insulation resistance: ââ°¥ 100 Mé*km (at 20 °C) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Smallest bending radius, fixed installation: 22 mm Flame resistance: As per UL-Style 2464 Resistance to oil: EN 60811-2-1 Ambient temperature (operation): -25 °C ... 80 °C (cable, fixed installation) -10 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) |
| Standards and regulations | Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
