1415919 PHOENIX CONTACT -

SAC-3P-10,0-PVC/A-1L-R - Sensor/actuator cable

Sensor/actuator cable, 3-position, free cable end, on Valve connector A, with 1 LED, connected with Freewheeling diode, cable length: 10 m

Cod. Articolo: 1415919 copia - copy

Cod. Fornitore: 1415919 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 3 Application: Standard No. of cable outlets: 1 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6.6 Contact surface material: Sn
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃDC Nominal current I_N: 2 A Protective circuit: Freewheeling diode
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: free cable end Connection 2 Type: Valve connector A Number of positions: 3 Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)

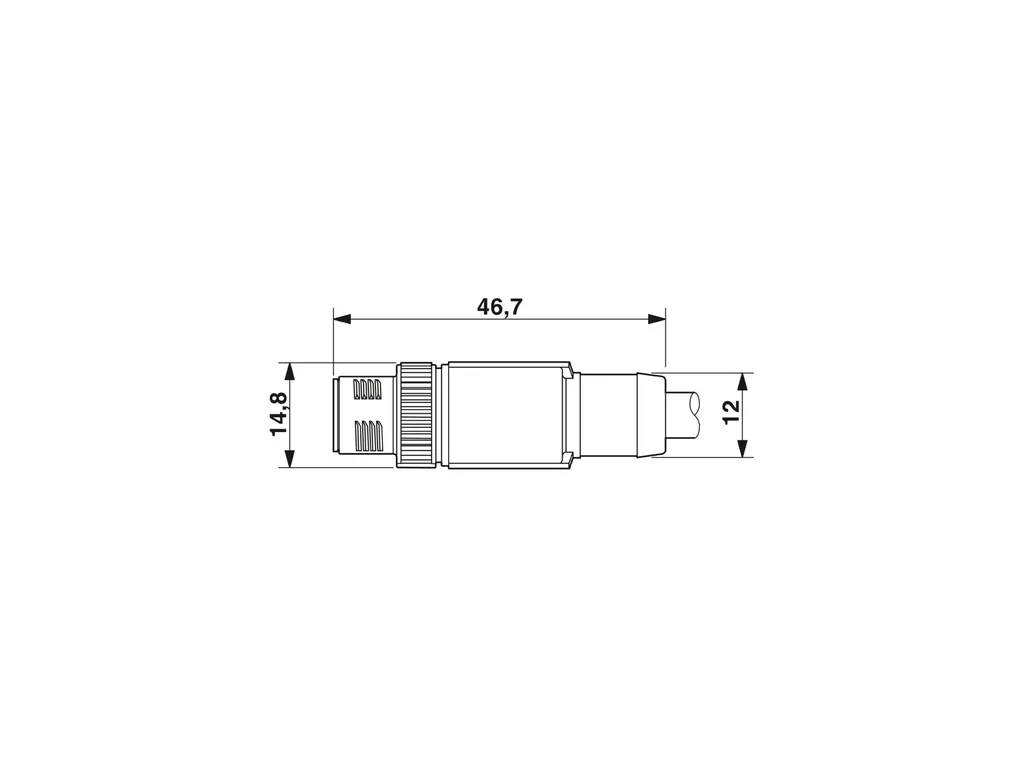

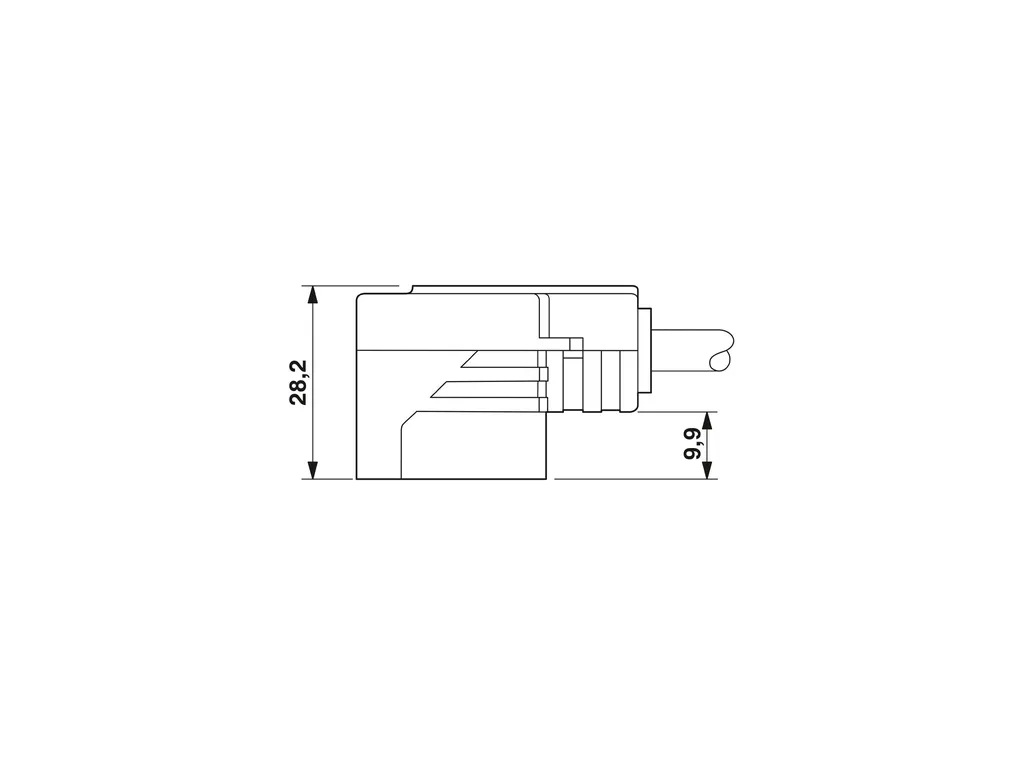

Cable/line	Cable length: 10 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Cable weight: 38.6 kg/km UL AWM Style: 2464 Number of positions: 3 Shielded: no Cable type: PVC blackÃ[PVC] Conductor structure signal line: 16x 0.20 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 1.5 mm Ã±0.05 mm External cable diameter: 4.8 mm Ã±0.2Ãmm Outer sheath, material: PVC External sheath, color: black RALÃ9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: 39 Ã©/km (at 20Ã°C) Insulation resistance: Ã¢Ã¢°¥ 20 MÃ©*km Nominal voltage, cable: 300 V Test voltage: 1200 V Minimum bending radius, fixed installation: 5 x D Flame resistance: DINÃVDEÃ0482 DINÃENÃ50265-2-1 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 85°C (valve plug)
Standards and regulations	Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803
