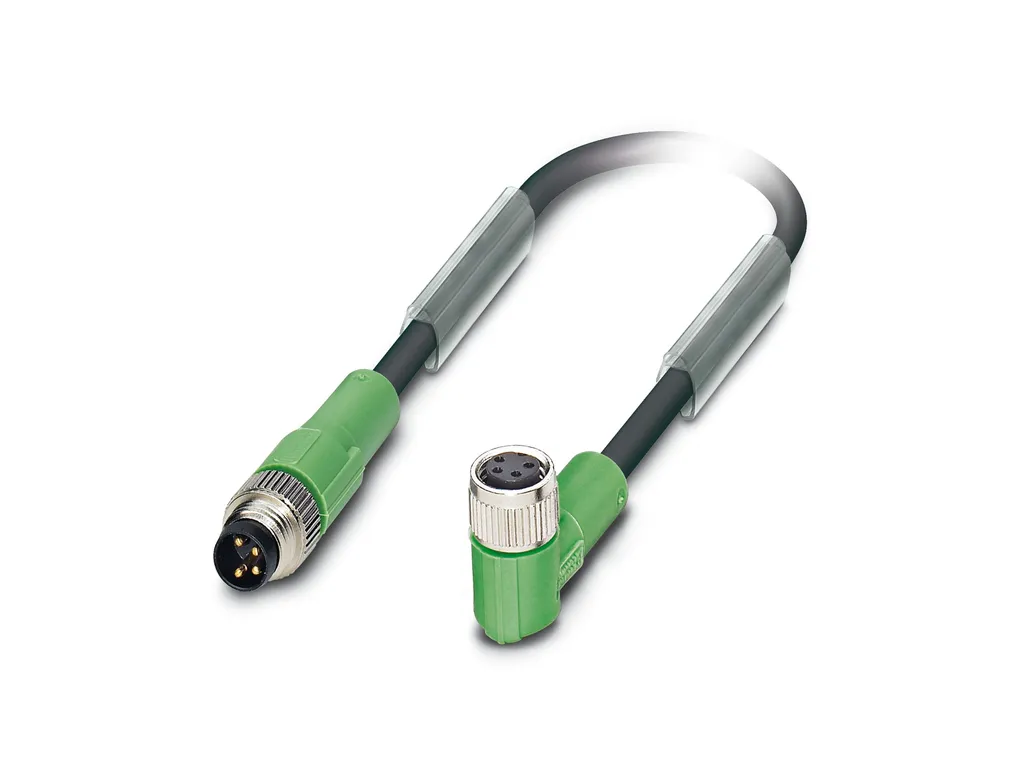

| Product properties | Product type: Sensor/actuator cable Application: Robots and drag chains Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 24 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: 3 LEDs Status display present: Yes |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |
| Cable/line | Cable length: 5 m PUR, halogen-free, highly flexible, welding-sputter resistant, orange [810] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/11398/full/b1500?format=jpg Note: Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments. UL AWM Style: 20549 (80 °C/300 V) Number of positions: 5 Shielded: no Cable type: PUR, halogen-free, highly flexible, welding-sputter resistant, orange [810] Conductor structure signal line: 42x 0.10 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² Wire diameter incl. insulation: 1.55 mm ñ0.05 mm (Signal line) External cable diameter: 6.90 mm ñ0.1 mm Outer sheath, material: PUR External sheath, color: orange RAL 2003 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: brown, white, blue, black, green-yellow Overall twist: 5 wires around filler to the core Max. conductor resistance: approx. 57 é/km Insulation resistance: ââ°¥ 20 Mé*km Nominal voltage, cable: 300 V (Peak value, not for high-power applications) Test voltage Core/Core: 3000 V (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 35 mm Smallest bending radius, movable installation: 69 mm Dynamic load capacity (bending): Max. bending cycles: 5000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s², Ambient temperature: ââ°¤ 60 °C Halogen-free: in accordance with DIN VDE 0472 part 815 Flame resistance: in acc. with UL FT-2 Other resistance: hydrolysis and microbe resistant Special properties: Sheath resistant to welding beads, can be recycled, matt, without adhesion, wear-resistant, flame resistant and self-extinguishing Free from silicone and cadmium Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (Cable, flexible installation) ââ°¤ 60 °C (cable, drag chain applications) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
