| Product properties | Product type: Circular connectors (device side) Sensor type: PROFINET Number of positions: 4 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Outer sheath, material: PUR Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 100 Mbps Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N Max. bending cycles: 3000000 |

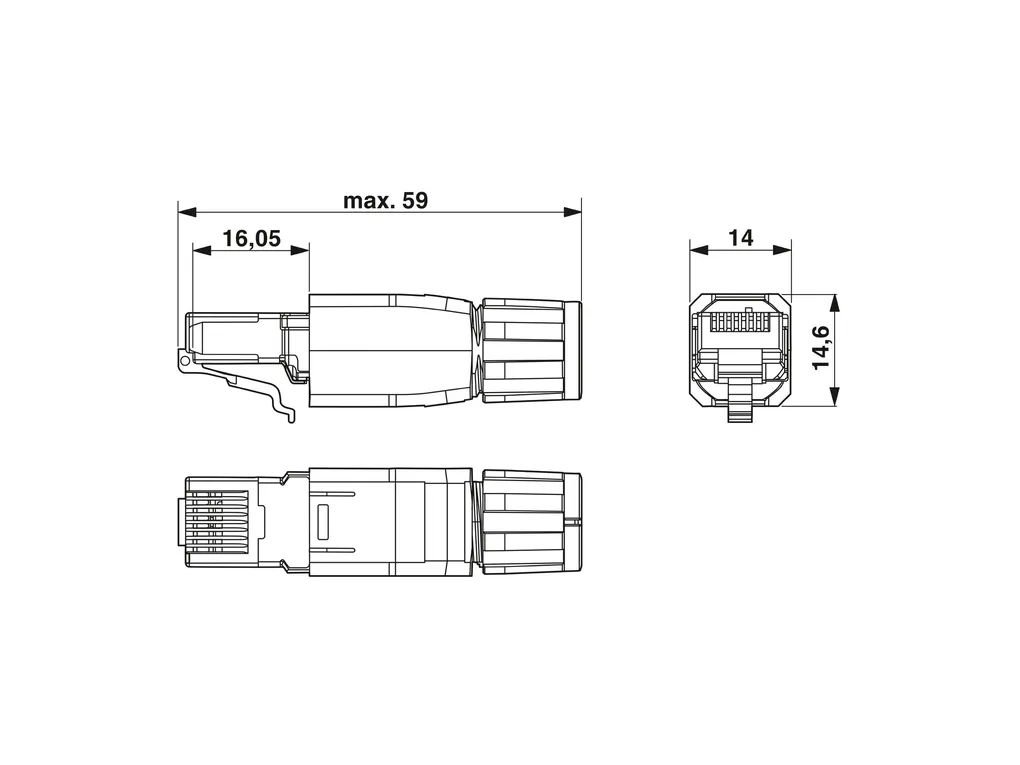

| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Degree of protection: IP20 Number of positions: 4 Connection 2 Type: Flush-type female connector straight M12 Shielded: yes Insertion/withdrawal cycles: > 100 Number of positions: 4 Degree of protection: IP67 |
| Cable/line | Cable length: 2.00 m PROFINET drag chain CAT5Ã[93C] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG Shielded: yes Cable weight: 61 kg/km Cable type: PROFINET drag chain CAT5 Short symbol: 2YH(ST)C11Y Cable type (abbreviation): 93C Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps EtherCATî CAT5 (IEC 11801), 100 Mbps Cable structure: 1x4xAWG22/7, SF/TQ External cable diameter: 6.5 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: green RAL 6018 Thickness, outer sheath: approx. 0.9 mm Material, inner sheath: FRNC Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Conductor cross section: 4x 0.34 mm² Material wire insulation: PE Wire diameter incl. insulation: 1.5 mm Single wire, color: white, yellow, blue, orange Overall twist: Star quad Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 85 % Nominal voltage, cable: 600 V (UL rating) Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Cable insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 20.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ15Ãé (at 1 ... 100 MHz) Loop resistance: ââ°¤ 120.00 é/km Signal runtime: 5.3 ns/m Signal speed: 0.66 c Tensile strength: ââ°¤ 150 N Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 7.5 x D Number of bending cycles: 3000000 Bending radius: 100 mm Traversing path: 10 m Traversing rate: 4 m/s Acceleration: 4 m/s² Torsion force: ñ 30°/m Damping: 2.1 dB (with 1 MHz) 4 dB (at 4 Ãà Hz) 6.3 dB (at 10 MHz) 8 dB (at 16 MHz) 9 dB (at 20ÃÃà Hz) 11.4 dB (at 31.25ÃÃà Hz) 16.5 dB (at 62.5ÃÃà Hz) 21.3 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz) 76 dB (at 4 Ãà Hz) 70 dB (at 10 MHz) 65 dB (at 16 MHz) 63 dB (at 20ÃÃà Hz) 60 dB (at 31.25ÃÃà Hz) 55 dB (at 62.5ÃÃà Hz) 50 dB (at 100 MHz) Halogen-free: yes Resistance to oil: in accordance with DINÃENÃ60811-2-1 Flame resistance: according to IEC 60332-1-2 Other resistance: UV resistant Special properties: Electrical properties in accordance with EN 50288-2-2 Ambient temperature (operation): -40°C ... 70°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 IP67 IP67/IP20 |
