1419001 PHOENIX CONTACT -

VS-08-RJ45-10G/Q - RJ45 connector

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6_A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet

Cod. Articolo: 1419001 copia - copy

Cod. Fornitore: 1419001 copia - copy

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Data connector (cable side) Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Shielded: yes Cable outlet: straight Positions/contacts: 8P8C Insulation characteristics Overvoltage category: I Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Contact resistance: < 20 mÃ© (Contact) < 100 mÃ© (shield) > 10 mÃ© (Wire Ã¢Ã¢¬Ã¢ IDC) 0.005 Ã© (Litz wires Ã¢Ã¢¬Ã¢ IDC) Frequency range: to 500 MHz Insulation resistance: > 500 MÃ© Nominal voltage U_N: 48 V Nominal current I_N: 1.75 A Contact resistance per contact pair: < 20 Ã© Transmission medium: Copper Transmission characteristics (category): CAT6_A Transmission speed: 10 Gbps Wave impedance: 100 Ã©
Connection data	Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 26 ... 24 (solid) 26 ... 24 (flexible) Conductor cross section: 0.14 mm² ... 0.22 mm² (solid) 0.14 mm² ... 0.22 mm² (flexible) Connection in acc. with standard: IEC 60603-7-51 Cable outlet, angle: 180

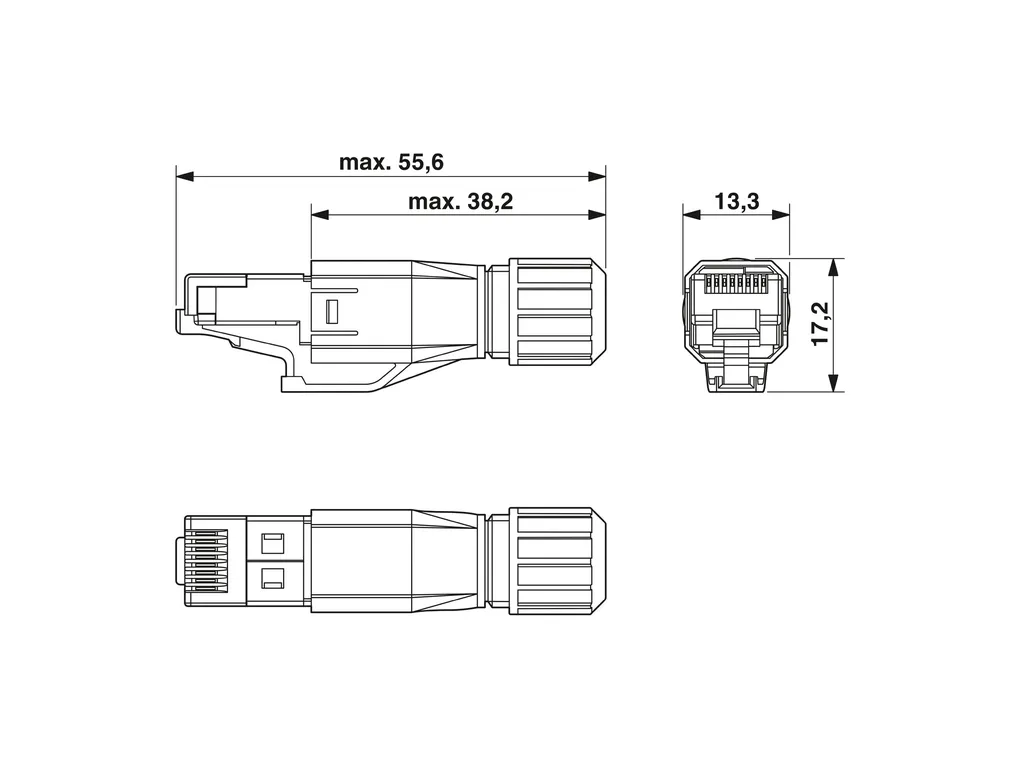

Dimensions	Width: 13.8 mm Height: 17.3 mm Length: 55.5 mm
Material specifications	Color: black Flammability rating according to UL 94: V2 Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: PC Material for screw connection: PA Housing material: Plastic
Cable/line	External cable diameter (): 4.5 mm ... 8 mm External cable diameter: 4.5 mm ... 8 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V Wave impedance: 100 Ã©
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N
Environmental and real-life conditions	Test specification Type of test: Vibration test Specification: IEC 60068-2-6 Frequency: 10-500 Hz Sweep speed: 1Ãoctave/min Amplitude: 0.35 mm Acceleration: 50 m/s² Test duration: 20 s Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C
Mounting	Mounting type: For field assembly Connection method: Insulation displacement connection
