| Product properties | Product type: Data cable preassembled Sensor type: CANopenî Number of positions: 5 Application: Standard No. of cable outlets: 1 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: CANopenî/DeviceNetâ⢠Signal type/category: CANopenî DeviceNetâ⢠|
| Signaling | Status display: No Status display present: No |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Transmission medium: Copper |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 (Plug) | SR (shield) | 1 (Socket) 2 (Plug) | RD (V+) | 2 (Socket) 3 (Plug) | BK (V-) | 3 (Socket) 4 (Plug) | WH (CAN_H) | 4 (Socket) 5 (Plug) | BU (CAN_L) | 5 (Socket) |

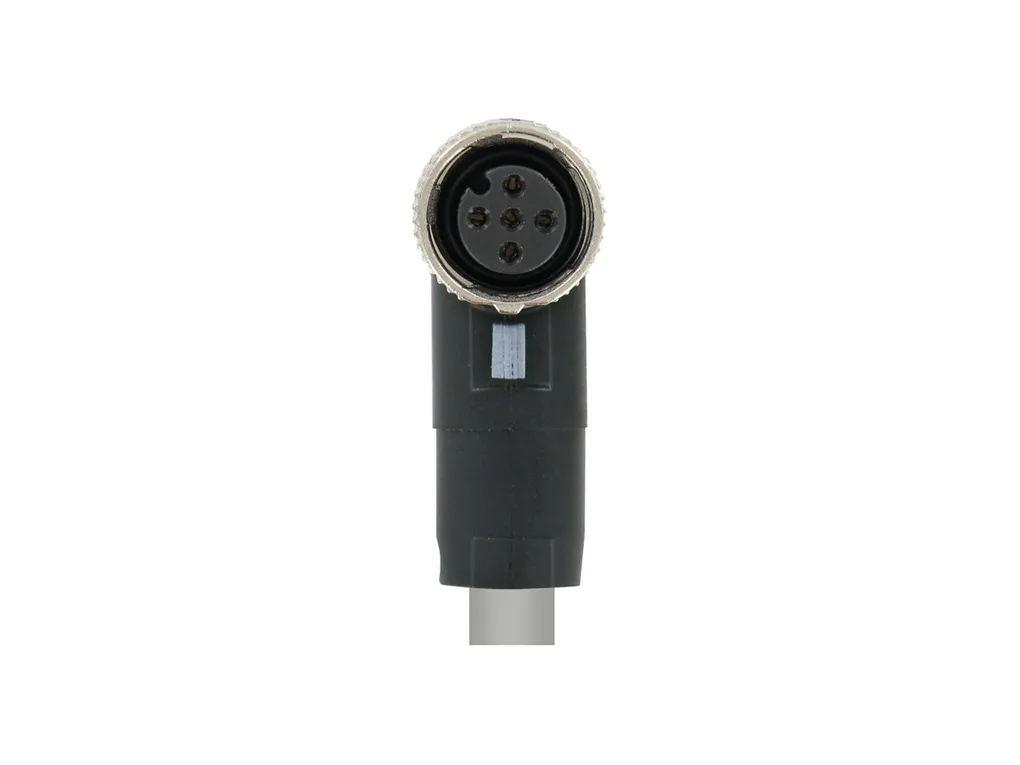

| Connector | Connection 1 Type: Plug straight M12 SPEEDCON Number of positions: 5 Coding type: A (Standard) Locking type: SPEEDCON Connection 2 Type: Socket angled M12 SPEEDCON Number of positions: 5 Coding type: A (Standard) Locking type: SPEEDCON |
| Cable/line | Cable length: 1 m CANopen Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/18b6c63bf01c224db44bee9488412896/-S204x204-FJPG Cable weight: 90 kg/km UL AWM Style: 21198 (80°C/300 V) Number of positions: 4 Shielded: yes Cable type: CANopenî/DeviceNetââ¢, PUR, grayÃ[923] Conductor structure: 2xAWG24/19+2xAWG22/19 Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Data cable) 2x 0.34 mm² (Power supply) 1x 0.34 mm² (Drain wire) Wire diameter incl. insulation: 1.95 mm ñ0.05 mm (Data cable) 1.4 mm ñ0.05 mm (Power supply) External cable diameter: 6.7 mm ñ0.3Ãmm Outer sheath, material: PUR External sheath, color: silver-grey RAL 7001 Conductor material: Tin-plated Cu litz wires Material wire insulation: Foamed PE (Data cable) PE (Power supply) Single wire, color: red-black, blue-white Twisted pairs: 2 cores to the pair Type of pair shielding: Plastic-coated aluminum foil, aluminum side outside Overall twist: 2 pairs around a drain wire in the center to the core Optical shield covering: 80 % Insulation resistance: ââ°¥ 5 Gé*km (Data cable) ââ°¥ 5 Gé*km (Power supply) Loop resistance: ââ°¤ 181.80 é/km (Data cable) ââ°¤ 114.80 é/km (Power supply) Wave impedance: 120 é ñ10Ã% (with 1 MHz) Cable capacity: nom. 40 nF/km (Data cable) Nominal voltage, cable: ââ°¤ 300 V (Peak value, not for high-power applications) Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 67 mm Max. bending cycles: 5000000 Shield attenuation: ââ°¤ 22.9 dB/km (with 1 MHz) ââ°¤ 16.4 dB/km (At 500 kHz) ââ°¤ 9.5 dB/km (At 125 kHz) Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 according to IEC 60754-1 Flame resistance: ULÃ1581, Sec.Ã1060 (FT-1) IEC 60332-1 Other resistance: Low adhesion Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) ââ°¤ 70°C (cable, drag chain applications) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
