PHOENIX CONTACT 1419160
PHOENIX CONTACT 1419160
PHOENIX CONTACTNon disponibile

VS-MSDBPS-OE-93K-LI/2,0 - Device connector, rear mounting

Device connector, rear mounting, Sercos CAT5, 4-position, PVC, Red RAL 3020, shielded, Pin, straight, M12-SPEEDCON, coding: D, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, Sercos III, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239239
Cod. Articolo: 1419160 copia - copy
Cod. Fornitore: 1419160 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50ÂV AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixÂContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Data cable preassembled
Sensor type: Sercos
Number of positions: 4
No. of cable outlets: 1
Shielded: yes
Coding: D
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
InterfacesSignal type/category: Sercos CAT5
Electrical propertiesRated surge voltage: 2.5 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 250 V
Nominal current IN: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Transmission medium: Copper
Transmission characteristics (category): CAT5
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Outer sheath, material: PVC
Connection dataConnection technology
Connection method: Cable connection
Conductor connection
Contact connection type: Crimp contacts
Connection method: Cable connection
Tightening torque: 2 Nm ... 3 Nm (Installation-side)
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: D
Connection 2
Head design: free cable end
Cable/lineCable length: 2 m
Sercos IIIÂ[93K]

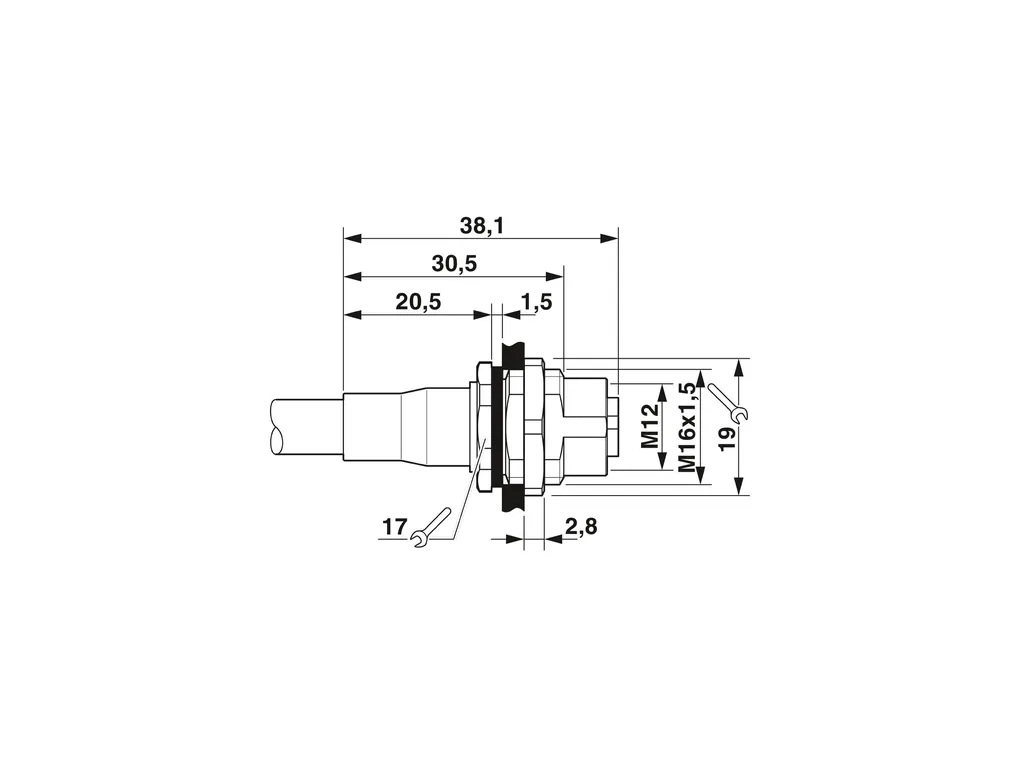

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4b34f8ad5d1bc342b90b879ccf8d3910/-S204x204-FJPG
Cable weight: 68 kg/km
UL AWM Style: 21694 (60°C / 600ÂV)
Number of positions: 4
Shielded: yes
Cable type: Sercos IIIÂ[93K]
Conductor structure: 1x4xAWG22/7, SF/TQ
Signal runtime: 5.3 ns/m
Conductor structure signal line: 7x 0.25 mm
AWG signal line: 22
Conductor cross section: 4x 0.34 mm²
Wire diameter incl. insulation: approx. 1.55 mm
External cable diameter: 6.5 mm ±0.2Âmm
Outer sheath, material: PVC
External sheath, color: signal red RAL 3020
Conductor material: Tin-plated Cu litz wires
Material wire insulation: PE
Single wire, color: white, yellow, blue, orange
Thickness, outer sheath: approx. 0.9 mm
Type of pair shielding: Aluminum-lined polyester foil
Overall twist: Star quad
Max. conductor resistance: ≤ 120 Ω/km
Insulation resistance: ≥ 0.5 GΩ*km
Coupling resistance: ≤ 20.00 mΩ/m (at 10 Hz)
Wave impedance: 100 Ω ±15ÂΩ (at 100 MHz)
Nominal voltage, cable: 600 V
Test voltage Core/Core: 2000 V (50ÂHz, 1Âmin.)
Test voltage Core/Shield: 2000 V (50ÂHz, 1Âmin.)
Minimum bending radius, fixed installation: 3 x D
Minimum bending radius, flexible installation: 7 x D
Flame resistance: according to ULÂ1685 (CSA FT 4)
Resistance to oil: Resistant to oil to a limited extent
Other resistance: UV resistant According to ULÂ1581, Section 1200
Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation)
-40°C ... 70°C (Cable, flexible installation)
Ambient temperature (installation): -20°C ... 60°C
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
