CUC-DST-GPME-S/DSSC15 - D-SUB sleeve housings

D-SUB sleeve housings, degree of protection: IP20, material: ABS, metal-plated, cable outlet: straight, housing size: 2, color: Bare metallic

Cod. Articolo: 1419710 copia - copy

Cod. Fornitore: 1419710 copia - copy

PHOENIX CONTACT

Caratteristiche Tecniche

Download

Caratteristiche Tecniche

Product properties	Type: D-SUB Product type: Sleeve housings No. of cable outlets: 1 Cable outlet: straight

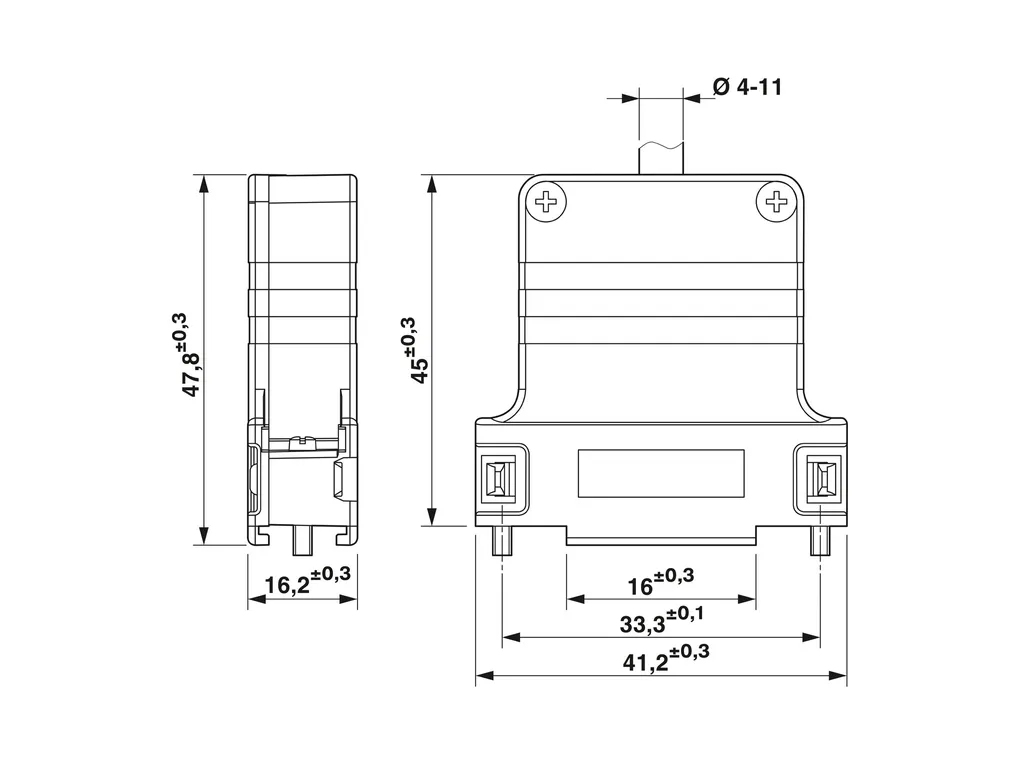

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/50e762c8e4010e4b9fe73d2163c29f85/-S204x204-FJPG Width: 41.2 mm Height: 16.2 mm Depth: 49.4 mm
Material specifications	Color: Bare metallic Flammability rating according to UL 94: V0 Housing surface material: metal-plated Housing material: ABS, metal-plated
Cable/line	External cable diameter (): 4 mm ... 11 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -35°C ... 95°C
Mounting	Mounting type: Screw locking mechanism
