| Product properties | Type: 3 HE Product type: Network distributor box Sensor type: Ethernet Number of positions: 12 No. of cable outlets: 0 Number of module slots: 6 Housing type: Component housing Protective cover: yes |
| Electrical properties | Attenuation: typ. 0.35 dB max. 0.6 dB Transmission medium: Multi-mode fiberglass |

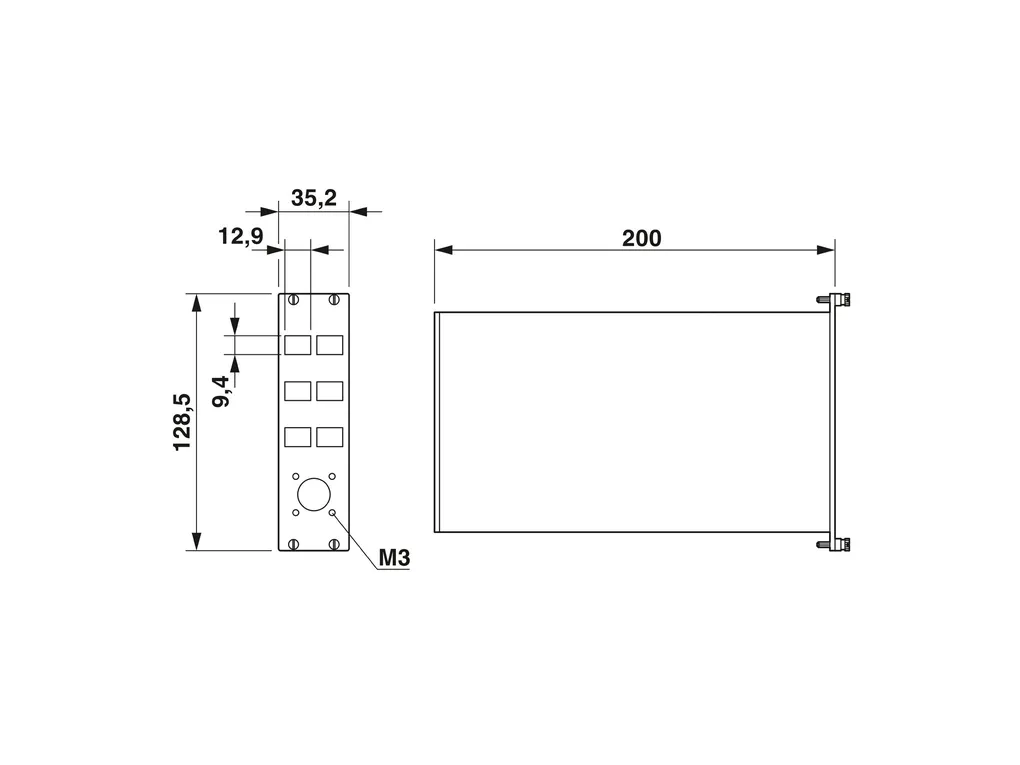

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/54dcb59893d4214a9db5ad48288402d4/-S204x204-FJPG Width: 35.2 mm Height: 128.5 mm Depth: 200 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Ferrule material: Zirconia ceramics Housing surface material: Powder-coated, gray Housing material: Aluminum alloy Outer sheath, material: LSFH |
| Cable/line | Cable type: Multimode fiberglass Fan out Outer sheath, material: LSFH Halogen-free: complying with IEC 60754-1/2 FO cable Number of fibers: 12 Fiber: 62.5/125Ãõm OM1 Fiber type: Multimode fiberglass 62.5/125Ãõm Attenuation: typ. 0.15 dB Transmission medium: Multi-mode fiberglass |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 500 (In the event of repeated cleaning) |
| Characteristics | Attenuation: typ. 0.35 dB |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 IP67 Ambient temperature (operation): -40°C ... 85°C (IEC 61300-2-22) |
| Mounting | Mounting type: Screw mounting |
