PHOENIX CONTACT 1420936
PHOENIX CONTACT 1420936
PHOENIX CONTACTNon disponibile

HC-EVO-B24-HLWD-PLBK - Housing

Sleeve housing B24, with double locking latch, material: PA, cable outlets: 1, straight/lateral, height: 63 mm, cable gland: none, Standard
Cod. Articolo: 1420936 copia - copy
Cod. Fornitore: 1420936 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: for contact inserts HC-B24, BB46, D64, DD108, M, K, HV10
Product propertiesType: B24
Product type: Housing with locking latch
Product family: HC-EVO-B
Application: Standard
No. of cable outlets: 1
Housing type: Sleeve housing
Shielded: no
Cable outlet: straight
Pg screw connection: none

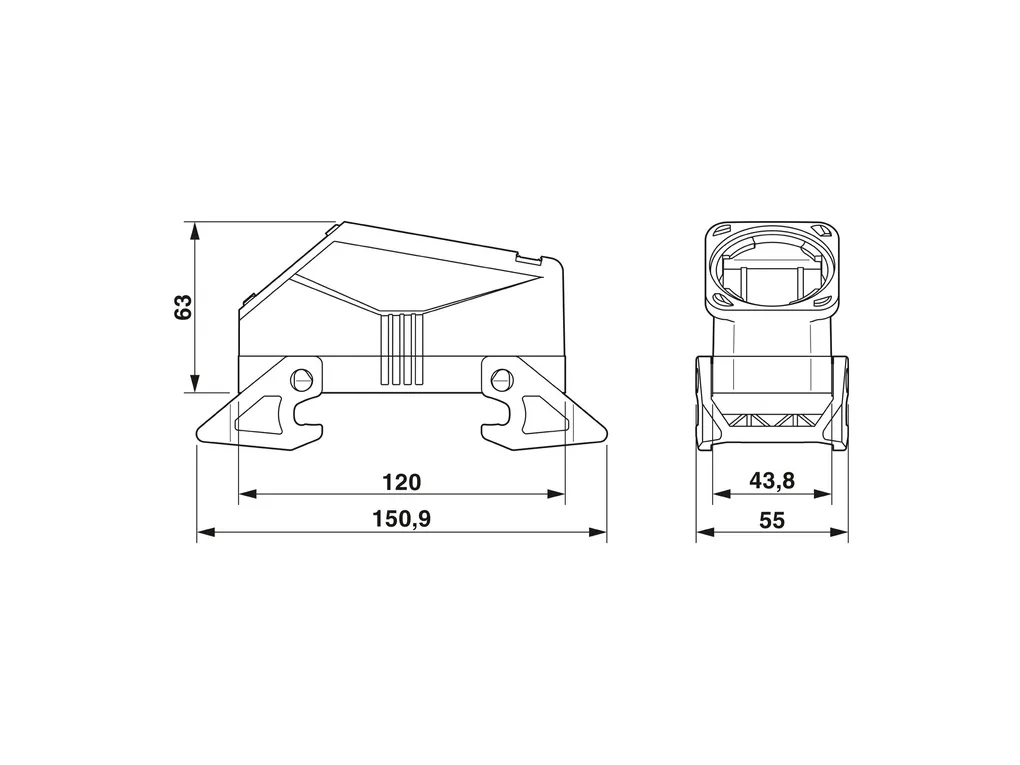

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1d3ef158adbc0a4a85f7c8e0805e1a20/-S204x204-FJPG
Width: 43.8 mm
Height: 63 mm
Length: 120 mm
Material specificationsFlammability rating according to UL 94: V0 (Housing)
V0 (Interlock)
Locking latch material: PA
Impact strength: IK09
Housing material: PA
Mechanical propertiesMechanical data
Locking type: Latch
MountingAssembly instructions: The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. It facilitates the creation of a straight or a side cable outlet. The EVO screw connection is mounted with the aid of, for example, a pipe wrench
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
Enclosure rating (NEMA): 12 (ULÂ50e)
Impact strength: IK09
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00354.pdf

Approvals_00547.pdf

Approvals_00548.pdf

Manufacturer_declaration_00223.pdf

Manufacturer_declaration_00321.pdf

Manufacturer_declaration_02435.pdf

Technical_drawing_14742.pdf
