Non disponibile
| Product properties | Product type: Sensor/actuator cable Application: Food processing industry Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 24 V DC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: 3 LEDs Status display present: Yes |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A |

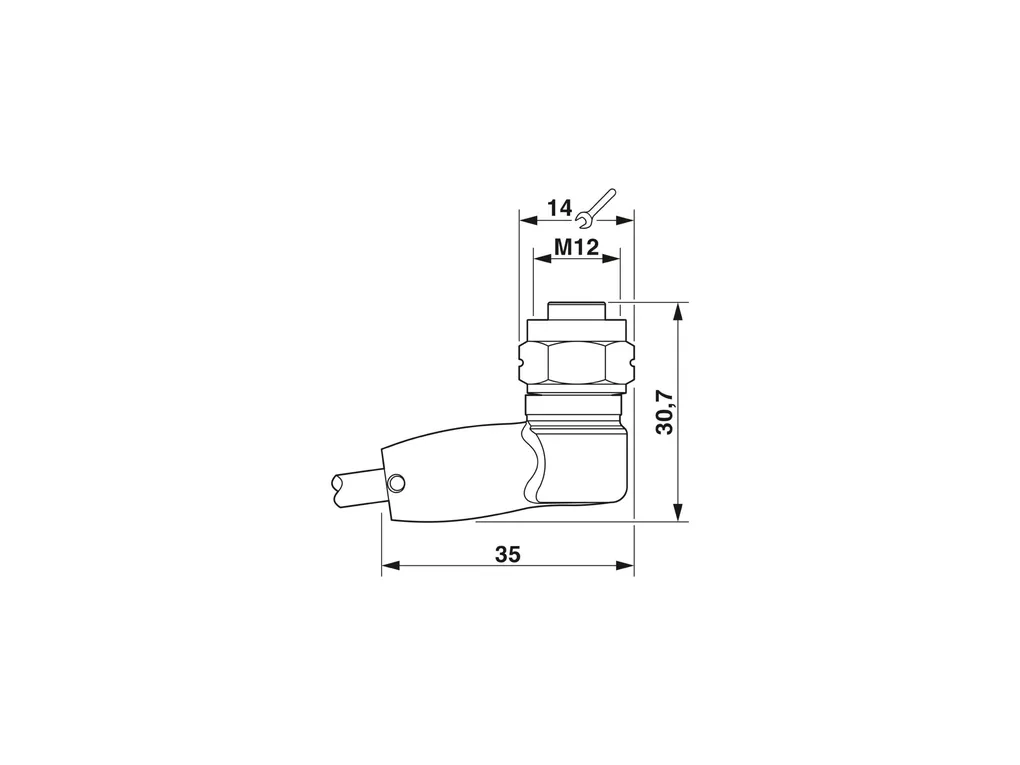

| Cable/line | Cable length: 1.5 m PVC gray [500] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9070/full/b1500?format=jpg Cable weight: 51 kg/km UL AWM Style: 2464 / 1729 (80 °C/300 V) Number of positions: 5 Shielded: no Cable type: PVC gray [500] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.26 mm ñ0.05 mm External cable diameter: 5.00 mm ñ0.15 mm Outer sheath, material: PVC External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black, green-yellow Thickness, insulation: ââ°¥ 0.23 mm (Core insulation) Thickness, outer sheath: ââ°¥ 0.76 mm Overall twist: 5 wires around filler to the core Max. conductor resistance: max. 57 é/km (at 20 °C) Insulation resistance: ââ°¥ 200 Mé*km (at 20 °C) Nominal voltage, cable: ââ°¤ 300 V Test voltage: ââ°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 25 mm Smallest bending radius, movable installation: 50 mm Flame resistance: As per UL-Style 2464 Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
