SAC-5P-M12MS/1,5-500/M12FR FB - Sensor/actuator cable

Sensor/actuator cable, 5-position, PVC, gray RAL 7001, Plug straight M12, coding: A, on Socket angled M12, coding: A, cable length: 1.5 m, with high-grade steel knurl

Cod. Articolo: 1421016 copia - copy

Cod. Fornitore: 1421016 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable Application: Food processing industry Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel
Electrical properties	Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 V AC 60 V DC Nominal current I_N: 4 A
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Signaling	Status display: no Status display present: No
Connector	Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A

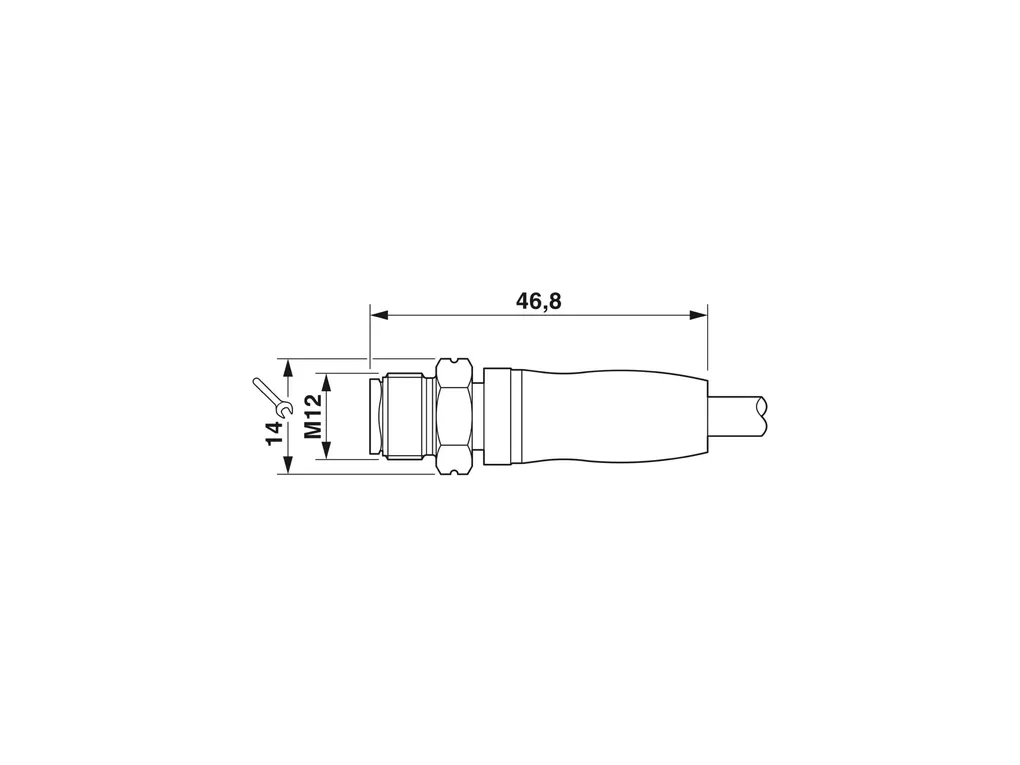

Cable/line	Cable length: 1.5 m PVC gray [500] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9070/full/b1500?format=jpg Cable weight: 51 kg/km UL AWM Style: 2464 / 1729 (80 °C/300 V) Number of positions: 5 Shielded: no Cable type: PVC gray [500] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 5x 0.34 mm² (Signal line) Wire diameter incl. insulation: 1.26 mm Ã±0.05 mm External cable diameter: 5.00 mm Ã±0.15 mm Outer sheath, material: PVC External sheath, color: gray RAL 7001 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black, green-yellow Thickness, insulation: Ã¢Ã¢°¥ 0.23 mm (Core insulation) Thickness, outer sheath: Ã¢Ã¢°¥ 0.76 mm Overall twist: 5 wires around filler to the core Max. conductor resistance: max. 57 Ã©/km (at 20 °C) Insulation resistance: Ã¢Ã¢°¥ 200 MÃ©*km (at 20 °C) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 3000 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 25 mm Smallest bending radius, movable installation: 50 mm Flame resistance: As per UL-Style 2464 Ambient temperature (operation): -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
