1421876 PHOENIX CONTACT -

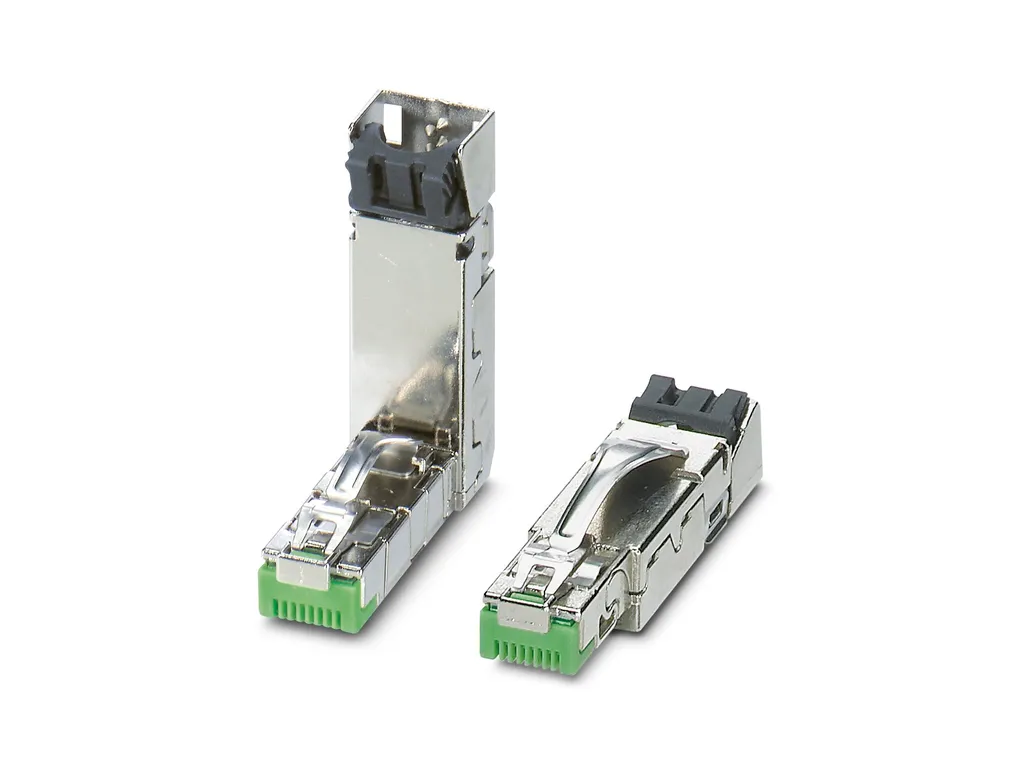

CUC-IND-C1ZNI-B/R4IE8 - RJ45 connector

RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Metal, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: angled, Ethernet

Cod. Articolo: 1421876 copia - copy

Cod. Fornitore: 1421876 copia - copy

PHOENIX CONTACT

Product properties	Type: RJ45 Product type: Data connector (cable side) Sensor type: Ethernet Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Shielded: yes Cable outlet: angled Positions/contacts: 8P8C Insulation characteristics Overvoltage category: I Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Contact resistance: < 20 mÃ© (Contact) < 100 mÃ© (shield) > 10 mÃ© (Wire Ã¢Ã¢¬Ã¢ IDC) 0.005 Ã© (Litz wires Ã¢Ã¢¬Ã¢ IDC) Frequency range: to 100 MHz Insulation resistance: > 500 MÃ© Nominal voltage U_N: 48 V Nominal current I_N: 1.75 A Contact resistance per contact pair: < 20 Ã© Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 1 Gbps Power transmission: PoE++
Connection data	Connection technology Connection method: Insulation displacement connection Connection cross section AWG: 26 ... 24 (solid) 26 ... 24 (flexible) Conductor cross section: 0.14 mm² ... 0.22 mm² (solid) 0.14 mm² ... 0.22 mm² (flexible) Connection in acc. with standard: In accordance with IEC 60603-7-1
Dimensions	Width: 13.65 mm Height: 40 mm Length: 37.95 mm
Material specifications	Material: Plastic Flammability rating according to UL 94: V0 Housing surface material: Ni Cable seal material: NBR Contact material: CuSn Contact surface material: Au/Ni Contact carrier material: PC Locking latch material: Stainless steel Housing material: Metal
Cable/line	External cable diameter (): 5 mm ... 9 mm External cable diameter: 5 mm ... 9 mm Wire diameter including insulation: Ã¢Ã¢°¤ 1.6 mm Test voltage Core/Core: 1000 V Test voltage Core/Shield: 1500 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Insertion force per signal contact: < 20.00 N Extraction force per signal contact: < 20 N
Environmental and real-life conditions	Test specification Type of test: Vibration test Specification: IEC 60068-2-6 Frequency: 10-500 Hz Sweep speed: 1Ãoctave/min Amplitude: 0.35 mm Acceleration: 50 m/s² Test duration: 20 s Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation) Ambient temperature (storage/transport): -40°C ... 70°C
Mounting	Mounting type: For field assembly Connection method: Insulation displacement connection
