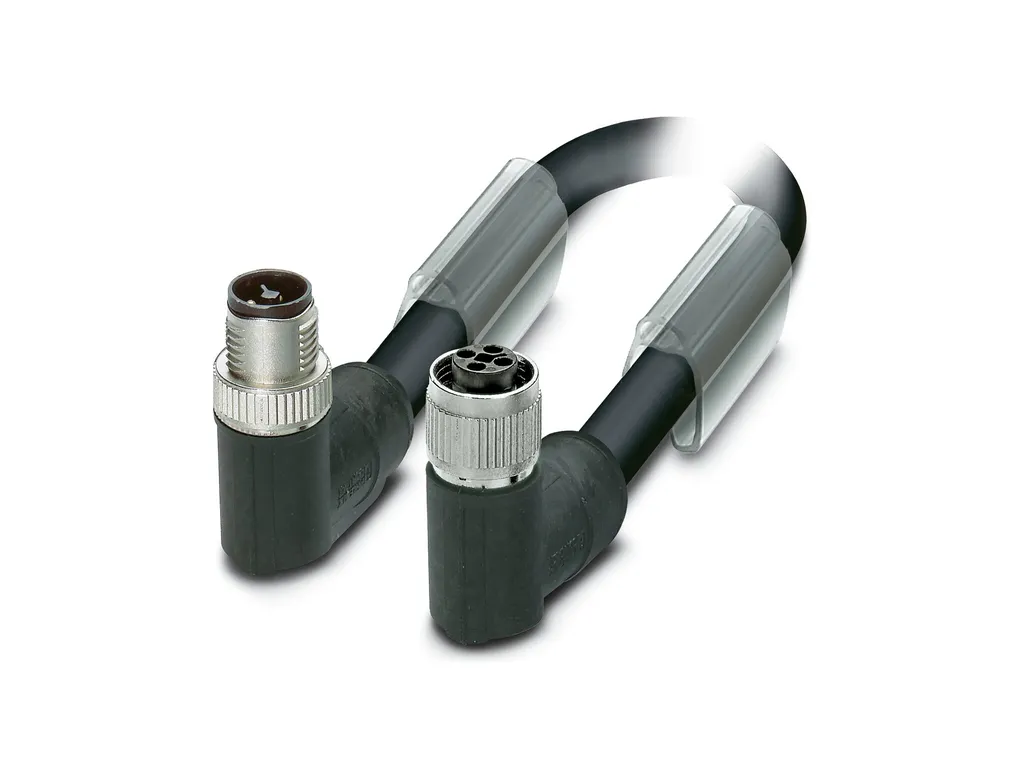

| Product properties | Product type: Power cable Number of positions: 3 Application: Power supply No. of cable outlets: 1 Coding: S Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 3 mé Insulation resistance: > 100 Mé Nominal voltage UN: 230 VÃAC 230 VÃDC Nominal current IN: 16 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Coding type: S (Power) |
| Cable/line | Cable length: 3 m Number of positions: 3 Shielded: no Outer sheath, material: PUR External sheath, color: black |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 (without preloading, as additional test in accordance with IEC 60529) Ambient temperature (operation): -25°C ... 105°C (Plug / socket) |
