1422210 PHOENIX CONTACT -

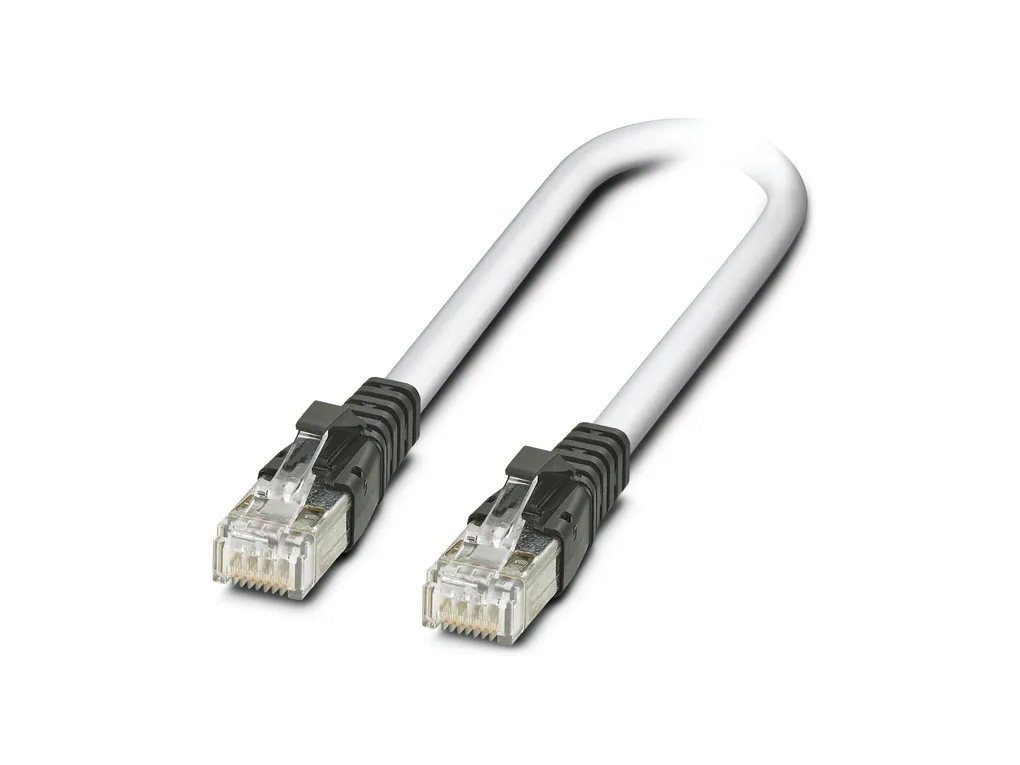

NBC-R4AC-10G/0,5-94F/R4AC-10G - Patch cable

Patch cable, CAT6_A, 4-pair, shielded, connection not crossed (Line), assembled at both ends with RJ45/IP20 connectors; outer sheath material: PUR; length: 0.5m

Cod. Articolo: 1422210 copia - copy

Cod. Fornitore: 1422210 copia - copy

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 Shielded: yes
Electrical properties	Rated voltage (III/3): 72 V (DC) Nominal voltage U_N: 48 V Nominal current I_N: 0.5 A Transmission medium: Copper Transmission characteristics (category): CAT6_A Transmission speed: 10 Gbps Wave impedance: 100 Ã©
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 200 Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N
Material specifications	Outer sheath, material: PUR Conductor material: Bare Cu litz wires
Connector	Connection 1 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 750 Degree of protection: IP20 Number of positions: 8 Connection 2 Type: Plug straight RJ45 Shielded: yes Insertion/withdrawal cycles: Ã¢Ã¢°¥ 750 Number of positions: 8 Degree of protection: IP20
Cable/line	Cable length: 0.50 m Ethernet 10 GbitÃ[94F] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0314c1656ba7d3438a5ae0749b98c42e/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 42 kg/km Cable type: Ethernet 10 Gbit Short symbol: 02YSC11Y Cable type (abbreviation): 94F Signal type/category: Ethernet CAT6_A, 10 Gbps Cable structure: 4x2xAWG26/7; S/FTP External cable diameter: 6.4 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Thickness, outer sheath: 0.65 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 1.04 mm Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined foil Overall twist: 4 pairs for core Shielding: Tinned copper braided shield Optical shield covering: 70 % Nominal voltage, cable: Ã¢Ã¢°¤ 100 V Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable insulation resistance: Ã¢Ã¢°¥ 500 MÃ©*km Wave impedance: 100 Ã© Ã±5ÃÃ© (at 100 MHz) Loop resistance: Ã¢Ã¢°¤ 290.00 Ã©/km Cable capacity: 47 nF/km Signal runtime: 5.13 ns/m Tensile strength: Ã¢Ã¢°¤ 100 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.1 dB (with 1 MHz) 5.7 dB (at 4 ÃÃHz) 8 dB (at 8ÃÃÃHz) 8.9 dB (at 10 MHz) 11.2 dB (at 16 MHz) 12.6 dB (at 20ÃÃÃHz) 14.1 dB (at 25ÃMHz) 15.8 dB (at 31.25ÃÃÃHz) 22.5 dB (at 62.5ÃÃÃHz) 28.7 dB (at 100 MHz) 41.4 dB (at 200 MHz) 46.6 dB (at 250ÃMHz) 51.4 dB (at 300ÃMHz) 60.1 dB (at 400ÃMHz) 67.9 dB (at 500ÃMHz) Near end crosstalk attenuation (NEXT): 75.3 dB (with 1 MHz) 66.3 dB (at 4 ÃÃHz) 61.8 dB (at 8ÃÃÃHz) 60.3 dB (at 10 MHz) 57.2 dB (at 16 MHz) 55.8 dB (at 20ÃÃÃHz) 54.3 dB (at 25ÃMHz) 52.8 dB (at 31.25ÃÃÃHz) 48.4 dB (at 62.5ÃÃÃHz) 45.3 dB (at 100 MHz) 40.8 dB (at 200 MHz) 39.3 dB (at 250ÃMHz) 38.1 dB (at 300ÃMHz) 38.1 dB (at 400ÃMHz) 38.1 dB (at 500ÃMHz) Power-summated near end crosstalk attenuation (PSNEXT): 72.3 dB (with 1 MHz) 63.3 dB (at 4 ÃÃHz) 58.8 dB (at 8ÃÃÃHz) 57.3 dB (at 10 MHz) 54.2 dB (at 16 MHz) 52.8 dB (at 20ÃÃÃHz) 51.3 dB (at 25ÃMHz) 49.9 dB (at 31.25ÃÃÃHz) 45.4 dB (at 62.5ÃÃÃHz) 42.3 dB (at 100 MHz) 37.8 dB (at 200 MHz) 36.3 dB (at 250ÃMHz) 35.1 dB (at 300ÃMHz) 33.3 dB (at 400ÃMHz) 31.8 dB (at 500ÃMHz) Return attenuation (RL): 20 dB (with 1 MHz) 23 dB (at 4 ÃÃHz) 24.5 dB (at 8ÃÃÃHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃÃHz) 24.2 dB (at 25ÃMHz) 23.3 dB (at 31.25ÃÃÃHz) 20.7 dB (at 62.5ÃÃÃHz) 19 dB (at 100 MHz) 16.4 dB (at 200 MHz) 15.6 dB (at 250ÃMHz) 15.6 dB (at 300ÃMHz) 15.6 dB (at 400ÃMHz) 15.6 dB (at 500ÃMHz) Shield attenuation: Ã¢Ã¢°¥ 80 dB (at 30 ... 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Flame resistance: according to IEC 60332-1-2 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C (RJ45 connector)
