| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 4 No. of cable outlets: 1 Number of slots: 1 Shielded: yes Cable outlet: straight |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Nominal voltage UN: 48 V Nominal current IN: 1 A Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002) Transmission speed: 100 Mbps |
| Mechanical properties | Mechanical data Insertion force per signal contact: 50.00 N Extraction force per signal contact: 30 N |
| Material specifications | Flammability rating according to UL 94: V2 Outer sheath, material: PUR Conductor material: Bare Cu litz wires |

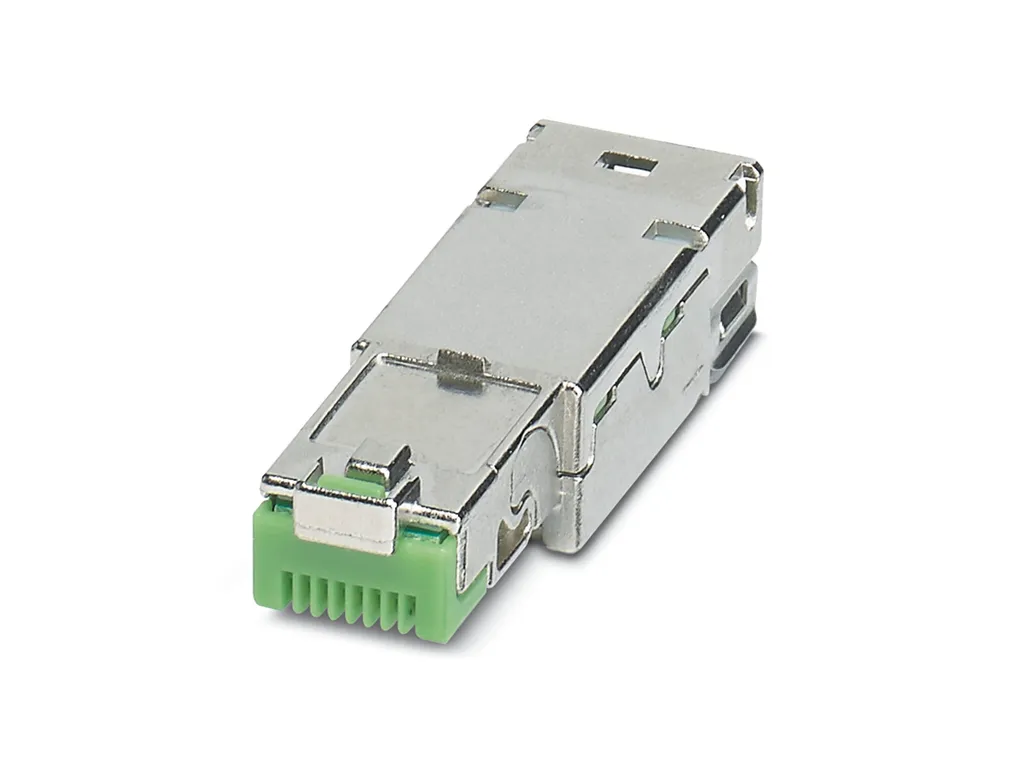

| Connector | Connection 1 Type: Plug straight RJ45 Shielded: yes Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: ââ°¥ 750 750 Degree of protection: IP20 Number of positions: 4 Connection 2 Type: Plug straight RJ45 Shielded: yes Handle color: gray Material: CuSn (Contact) Ni/Au (Contact surface) PC (Contact carriers) PA (Housing) Insertion/withdrawal cycles: ââ°¥ 750 Number of positions: 4 Degree of protection: IP20 |
| Cable/line | Cable length: 50.00 m Ethernet flexible CAT5, 2-pairÃ[93E] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7fe2dbaea8a70742b151e6eb6516da5e/-S204x204-FJPG Shielded: yes UL AWM Style: 20963 (80°C/30 V) Cable weight: 42 kg/km Cable type: Ethernet flexible CAT5, 2-pair Short symbol: 02YS(ST)C11Y Cable type (abbreviation): 93E Signal type/category: Ethernet CAT5 (IEC 11801), 100 Mbps Cable structure: 2x2xAWG26/7, SF/UTP External cable diameter: 6.4 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Thickness, outer sheath: 1.2 mm Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 2x 2x 0.14 mm² Material wire insulation: Foamed PE Wire diameter incl. insulation: 0.98 mm Single wire, color: white/orange-orange, white/green-green Twisted pairs: 2 cores to the pair Overall twist: Two pairs with two fillers to the core Shielding: Aluminum-coated foil, tinned copper braided shield Optical shield covering: 70 % Current carrying capacity of cable: 2 A (according to DINÃVDEÃ0891-1) Nominal voltage, cable: ââ°¤ 100 V (Peak value, not for high-power applications) Test voltage Core/Core: 700 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 700 V (50ÃHz, 1Ãmin.) Cable insulation resistance: ââ°¥ 500 Mé*km Coupling resistance: ââ°¤ 100.00 mé/m (at 10 MHz) Wave impedance: 100 é ñ5Ãé (at 100 MHz) Loop resistance: ââ°¤ 290.00 é/km Cable capacity: approx. 45 nF/km (at 1 kHz) Signal runtime: 5.3 ns/m Tensile strength: ââ°¤ 80 N Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Damping: 3.2 dB (with 1 MHz) 6 dB (at 4 Ãà Hz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃÃà Hz) 17.1 dB (at 31.25ÃÃà Hz) 24.8 dB (at 62.5ÃÃà Hz) 32 dB (at 100 MHz) Near end crosstalk attenuation (NEXT): 65.3 dB (with 1 MHz) 56.3 dB (at 4 Ãà Hz) 50.3 dB (at 10 MHz) 47.2 dB (at 16 MHz) 45.8 dB (at 20ÃÃà Hz) 42.9 dB (at 31.25ÃÃà Hz) 38.4 dB (at 62.5ÃÃà Hz) 35.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 Ãà Hz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃÃà Hz) 39.9 dB (at 31.25ÃÃà Hz) 35.4 dB (at 62.5ÃÃà Hz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 Ãà Hz) 24.1 dB (at 8ÃÃà Hz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃÃà Hz) 23.6 dB (at 31.25ÃÃà Hz) 21.5 dB (at 62.5ÃÃà Hz) 20.1 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Resistance to oil: in accordance with EN 60811-2-1 Flame resistance: according to IEC 60332-1-2 in acc. to UL VW1 in accordance with UNÃECE-RÃ118.03 Ambient temperature (operation): -20°C ... 80°C (Cable, flexible installation) -40°C ... 80°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 70°C (RJ45 connector) |
