| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |

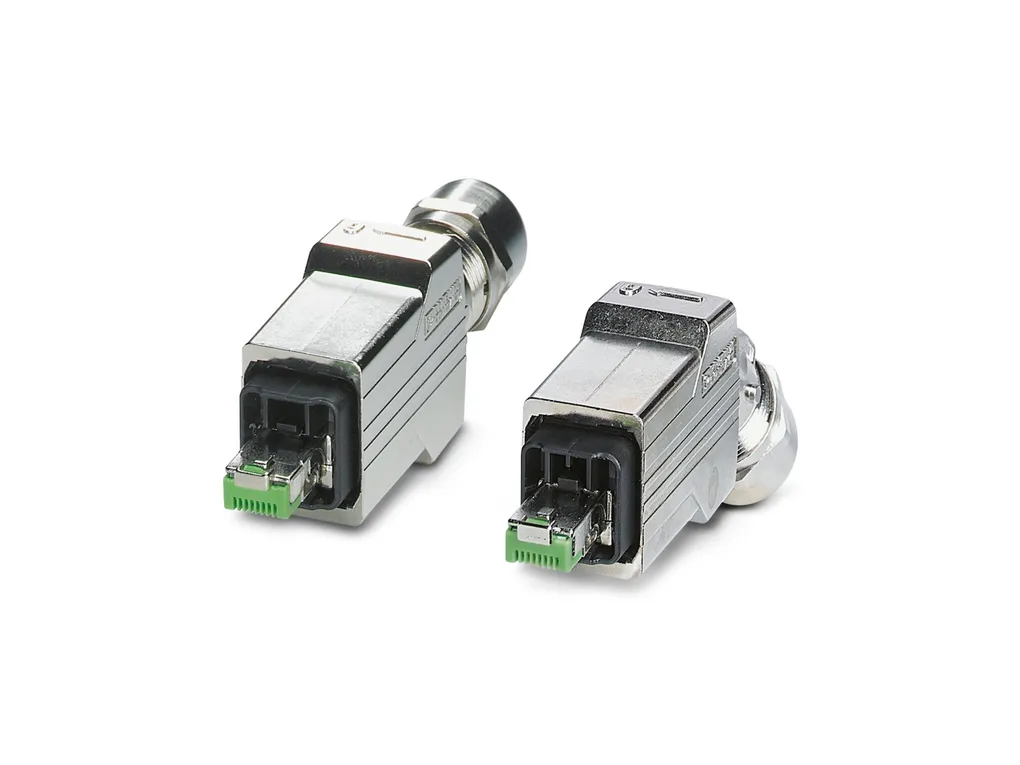

| Product properties | Type: RJ45 VersionÃ14 Product type: Data connector (cable side) Number of positions: 8 Connection profile: RJ45 No. of cable outlets: 1 Cable outlet: angled Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Rated current: 1.75 A Frequency range: to 100 MHz Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 1 Gbps Power transmission: PoE++ |
| Connection data | Connection technology Connection method: IDC fast connection Connection technology: QUICKON connection Connection cross section AWG: 26 ... 24 (solid) 26 ... 24 (flexible) Conductor cross section: 0.14 mm² ... 0.23 mm² (solid) 0.14 mm² ... 0.25 mm² (flexible) |
| Dimensions | Width: 22 mm Height: 50 mm Length: 80 mm |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Housing surface material: nickel-plated Housing material: Metal |
| Cable/line | External cable diameter (): 5.5 mm ... 10 mm External cable diameter: 5.5 mm ... 10 mm Cable cross section: 0.14 mm² |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 750 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -10°C ... 40°C |
| Mounting | Connection method: IDC fast connection |
