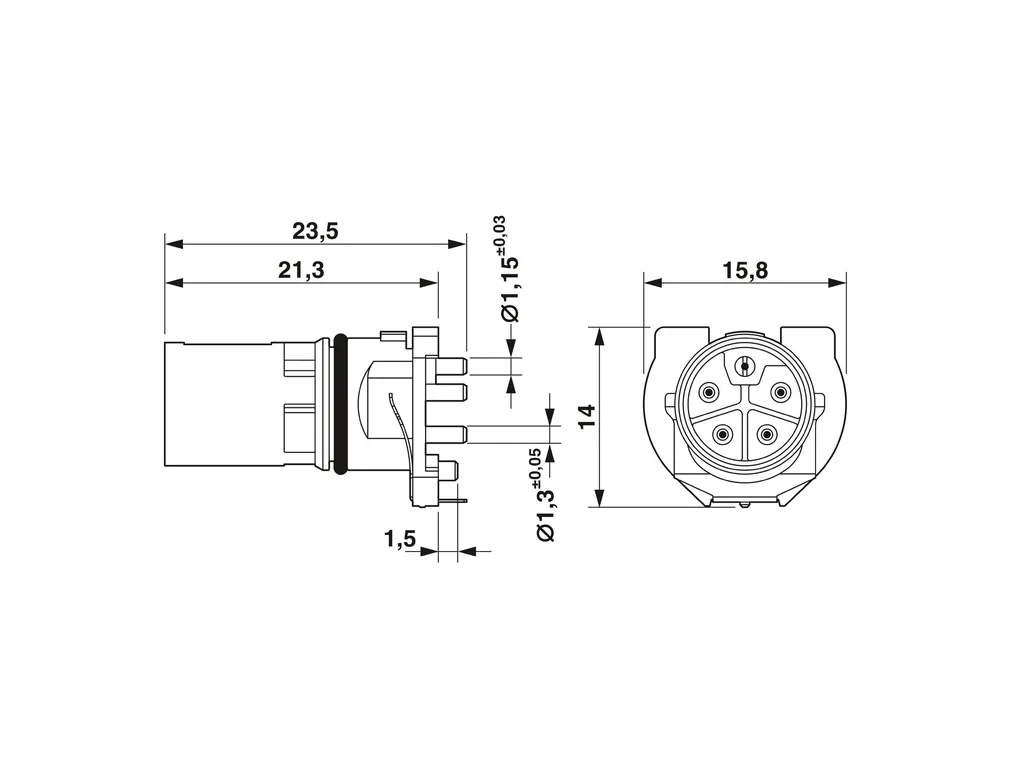

1423413 PHOENIX CONTACT -

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Product properties	Product type: Contact insert Sensor type: Power Number of positions: 5 Application: Power Shielded: yes Coding: L Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 1.5 kV Nominal voltage U_N: 63 V Nominal current I_N: 14 A
Interfaces	Signal type/category: Power
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 4T
Connector	Connection 1 Head design: Pin Head cable outlet: straight Coding: L
Cable/line	Signal type/category: Power
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Environmental and real-life conditions	Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) IP67, when plugged in Ambient temperature (operation): -25°C ... 105°C -40°C ... 105°C (without mechanical actuation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 Note: In line with
Mounting	Mounting type: PCB mounting Connection method: THR solder connection
Packaging specifications	Delivery state: with assembly pad
