1423475 PHOENIX CONTACT -

Product properties	Product type: Circular connectors (device side) Sensor type: Ethernet Number of positions: 4 Shielded: yes Insulation characteristics Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V2
Electrical properties	Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 (IEC 11801:2002)

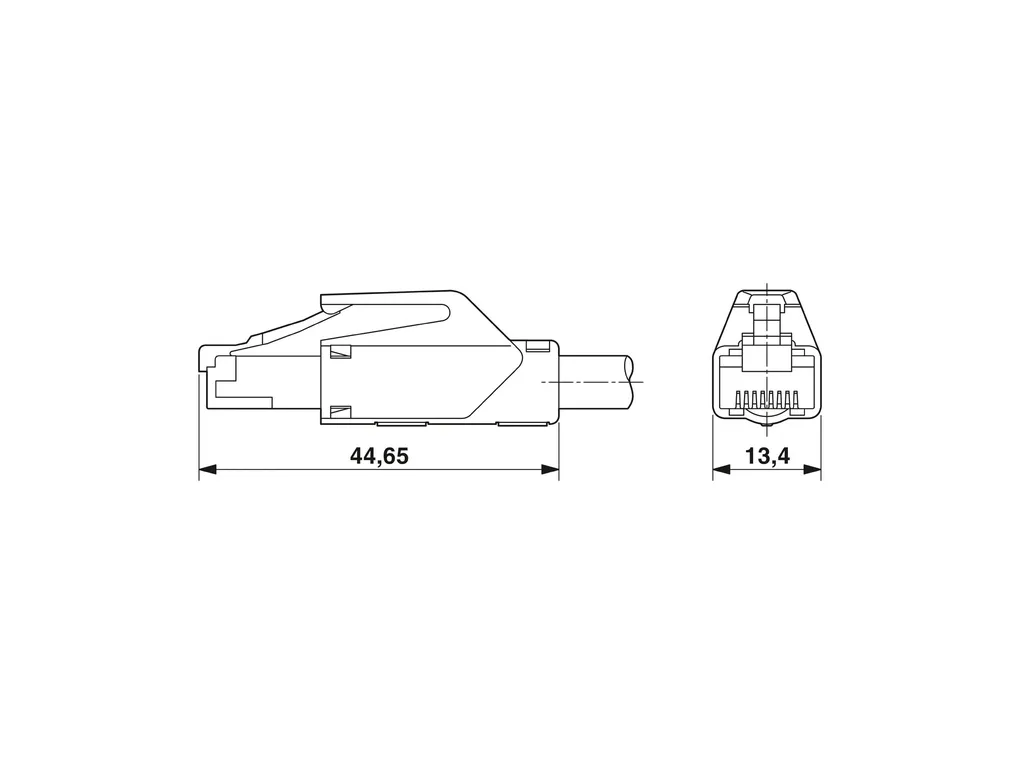

Connector	Connection 1 Type: Flush-type female connector straight M12 Connection 2 Type: Plug straight RJ45
Cable/line	Cable length: 0.20 m EthernetÃ[93E] Shielded: yes Cable weight: 42 kg/km Cable type: Ethernet Cable type (abbreviation): 93E Signal type/category: Ethernet CAT5 (IEC 11801:2002) Cable structure: 2x2xAWG26/7 PIMF External cable diameter: 6.7 mm Outer sheath, material: PUR External sheath, color: water blue RALÃ5021 Conductor material: Bare Cu litz wires Conductor structure signal line: 7x 0.15 mm AWG signal line: 26 Conductor cross section: 2x 2x 0.14 mm² Material wire insulation: Cell PE Wire diameter incl. insulation: Ã¢Ã¢°¤ 1.05 mm Single wire, color: white/orange-orange, white/green-green Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined polyester foil Overall twist: Two pairs with two fillers to the core Shielding: Tinned copper braided shield Nominal voltage, cable: max. 125 V Test voltage, cable: 1000 V Cable resistance: Ã¢Ã¢°¤ 150 Ã©/km Cable insulation resistance: Ã¢Ã¢°¥ 5 GÃ©*km Coupling resistance: 5.00 mÃ©/m (at 10 MHz) Wave impedance: 100 Ã© Ã±5Ã% (at 100 MHz) Working capacitance: 42 pF Signal speed: 0.72 c Tensile strength: 30 N (for installation) 10 N (in accordance with installation) Smallest bending radius, movable installation: 34 mm Shield attenuation: 60 dB (up to 1000 MHz) Halogen-free: complying with IEC 60754-1/2 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Concentration of fumes: in accordance with IEC 61034-1/2 Flame resistance: complying with IEC 60332-2-2 Other resistance: Microbe resistance as per VDE 0282 section 10 Hydrolysis resistance as per DIN 53504 Special properties: Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -10°C ... 50°C (Cable, flexible installation) -40°C ... 70°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation)
