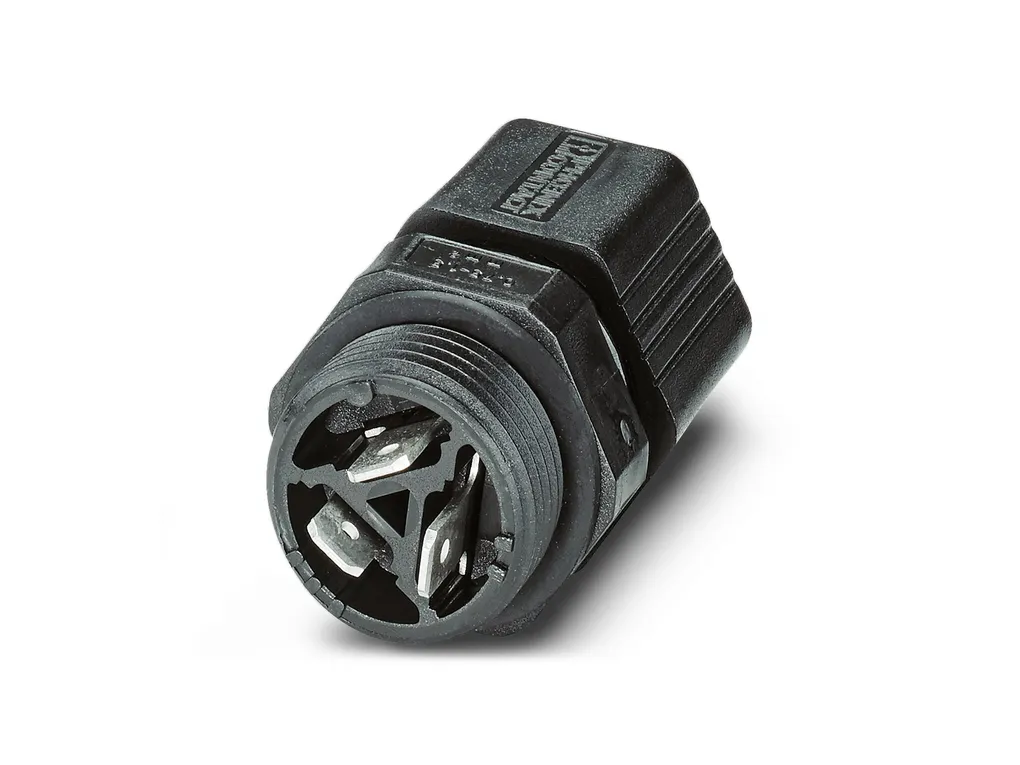

1424032 PHOENIX CONTACT -

Product properties	Type: QPD 4x2,5 Product type: Installation pressure nut Product family: QPD Number of positions: 4 Position marking: 1, 2, 3, 4 Number of connections: 10 Series: QPD Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage (II/2): 6 kV Rated surge voltage (III/2): 6 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A rated voltage (II/2): 1000 V rated voltage (III/2): 690 V Rated voltage (III/3): 690 V Nominal current I_N: 20 A
Connection data	Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 Conductor connection Conductor cross section flexibel: 1 mm² ... 2.5 mm² Conductor cross section solid: 1 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Tightening torque Union nut: 7 Nm

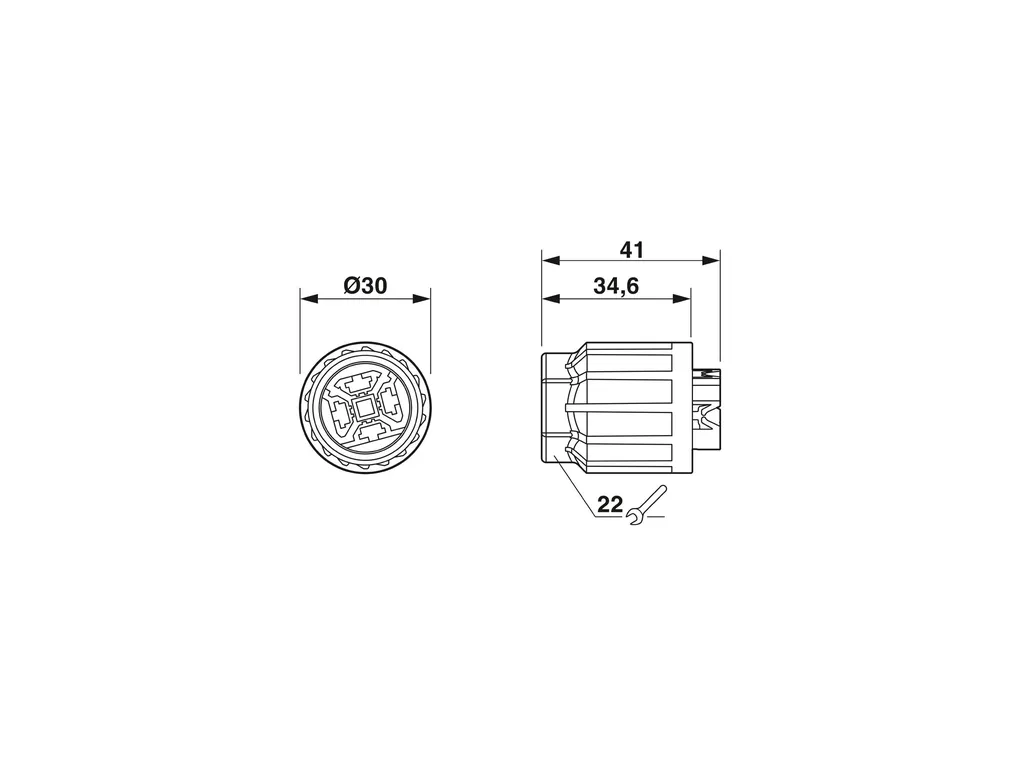

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c2ca772b262d3a4a8103dbdb83c2df38/-S204x204-FJPG Width: 30 mm Height: 30 mm Length: 40 mm Diameter: 30 mm
Material specifications	Material: PA Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE Contact carrier material: PA
Cable/line	Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 9 mm ... 14 mm Wire diameter including insulation: 2 mm ... 3.6 mm Position marking: 1, 2, 3, 4 Material wire insulation: PVC /PE / rubber / TPE
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C
