| Product properties | Product type: Data cable preassembled Number of positions: 2 Application: Standard |
| Electrical properties | Attenuation: ââ°¤ 2 dB (at 650Ãnm) ââ°¤ 1.5 dB (with 850 nm) Transmission medium: PCF fiber Transmission speed: 100 Mbps |
| Mechanical properties | Tensile strength short-term/long-term: 800 N / 100 N |
| Material specifications | Ferrule material: Zirconia ceramics Outer sheath, material: PVC |
| Dimensions | External dimensions External diameter min.: 6.7 mm External diameter max.: 7.7 mm Mechanical characteristics Ferrule diameter: 2.50 mm |

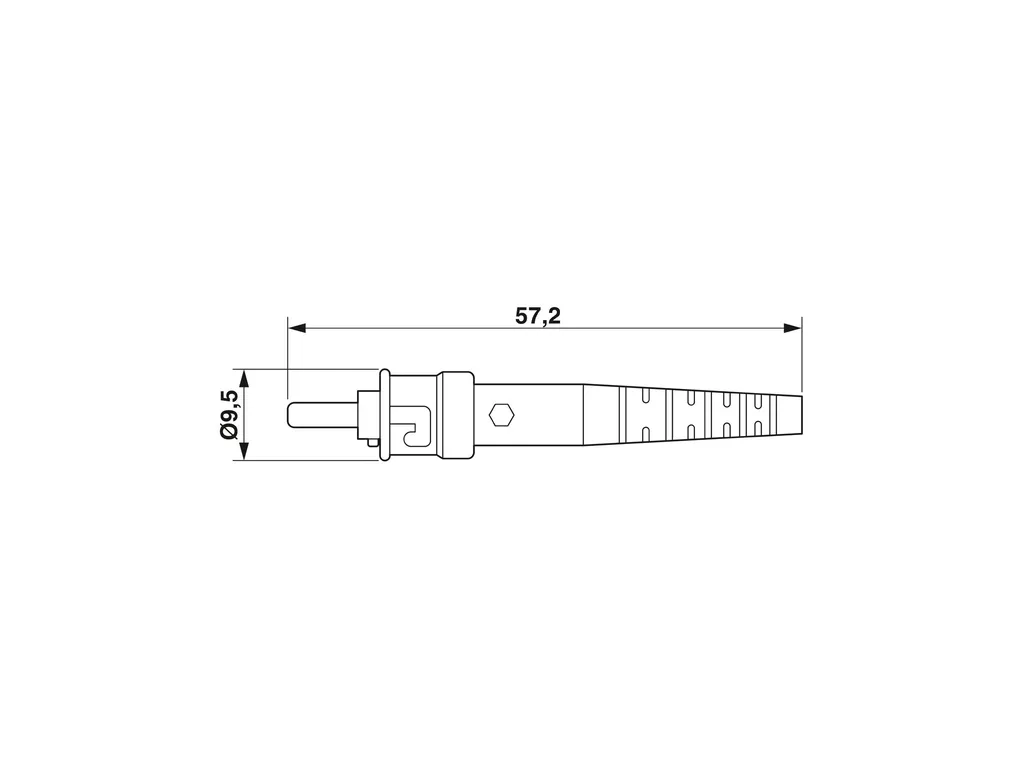

| Connector | Connection 1 Type: Plug straight SC-RJ Degree of protection: IP20 (SC-RJ) Connection 2 Type: Plug straight B-FOC (ST) Degree of protection: IP20 |
| Cable/line | Cable length: 0.80 m Cable weight: 45 kg/km Short symbol: AT-V(ZN)YY 2K200/230 HCS External cable diameter: 7.2 mm Outer sheath, material: PVC External sheath, strain relief elements: Non-metallic, aramide fiber Single wire, number of litz wires: 2 Single wire, material: PVC Individual wire diameter: 2.2 mm ñ0.1Ãmm Tensile strength short-term/long-term: 800 N / 100 N Lateral pressure short term: 500 N/cm Lateral pressure, long-term: 300 N/cm Bending radius, single element: 30 mm (Short-term) Bending radius, entire cable: 70 mm (Short-term) 660 nm: 10 dB/km 850 nm: 8 dB/km Resistance to oil: very good oil and chemical resistance Behavior in fire: Flame-resistant as per IEEE and IEC 60 332-3 test type C FO cable Number of fibers: 2 Fiber: 200/230Ãõm Fiber type: PCF fiber A3C Cable, attenuation: 10ÃdB/km (650Ãnm), 8ÃdB/km (at 850Ãnm) Transmission medium: PCF fiber |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20, IP20 Ambient temperature (operation): -30°C ... 70°C Ambient temperature (storage/transport): -40°C ... 70°C Ambient temperature (assembly): -5°C ... 50°C Ambient temperature (installation): -5°C ... 50°C Resistance to oil: yes |
| Standards and regulations | Flame resistance: yes, in accordance with IEC 60332-1-2 and in accordance with IEC 60332-3-22 Cat A Resistance to oil: yes |
