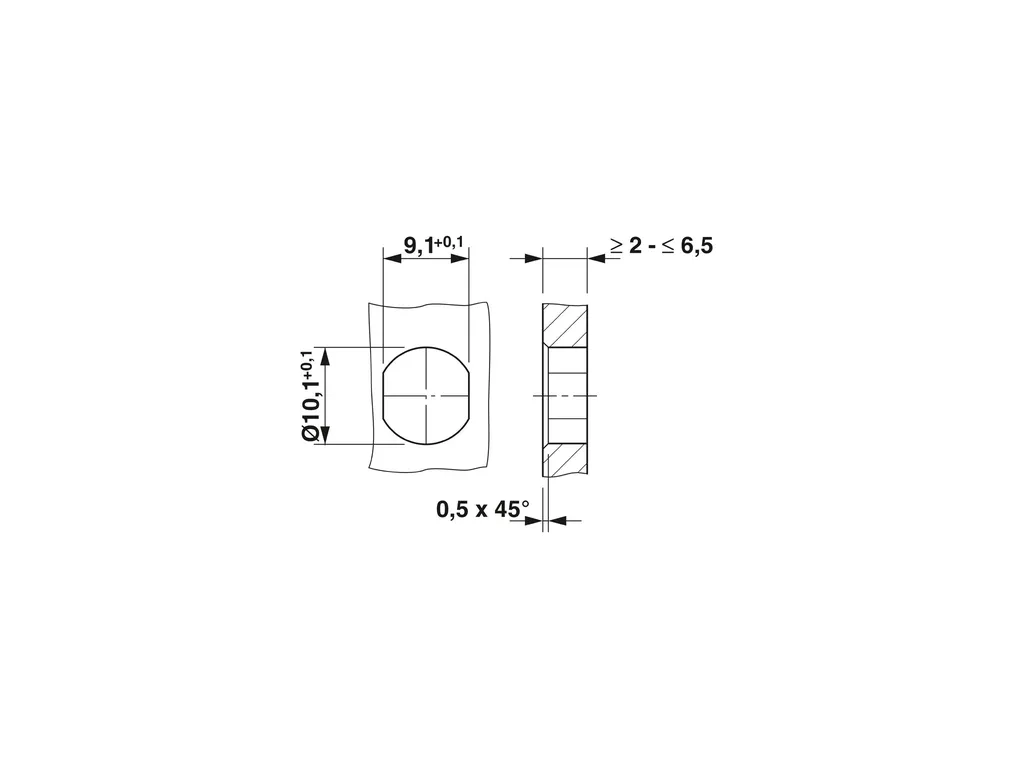

| Mounting | Mounting type: Rear mounting M10 With flat nut Assembly instructions: With flat nut Connection method: Solder pins |
| Product properties | Product type: Circular connectors (device side) Number of positions: 5 Shielded: yes Coding: B Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Contact material: Cu alloy Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 3 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 3 A |
| Connection data | Conductor connection Connection method: Solder pins Contact connection type: Socket |
| Connector | Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M8 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C |
| Standards and regulations | M8 Standard designation: M8 connector Standards/specifications: IEC 61076-2-104 |
