1424242 PHOENIX CONTACT -

SACC-DSI-M8MS-5CON-M8-L180 DN - Device connector, rear mounting

Device connector, rear mounting, 5-position, Pin, straight, M8, coding: B, Rear mounting, M8 x 1, Wave soldering, coding: B - inverse

Cod. Articolo: 1424242 copia - copy

Cod. Fornitore: 1424242 copia - copy

PHOENIX CONTACT

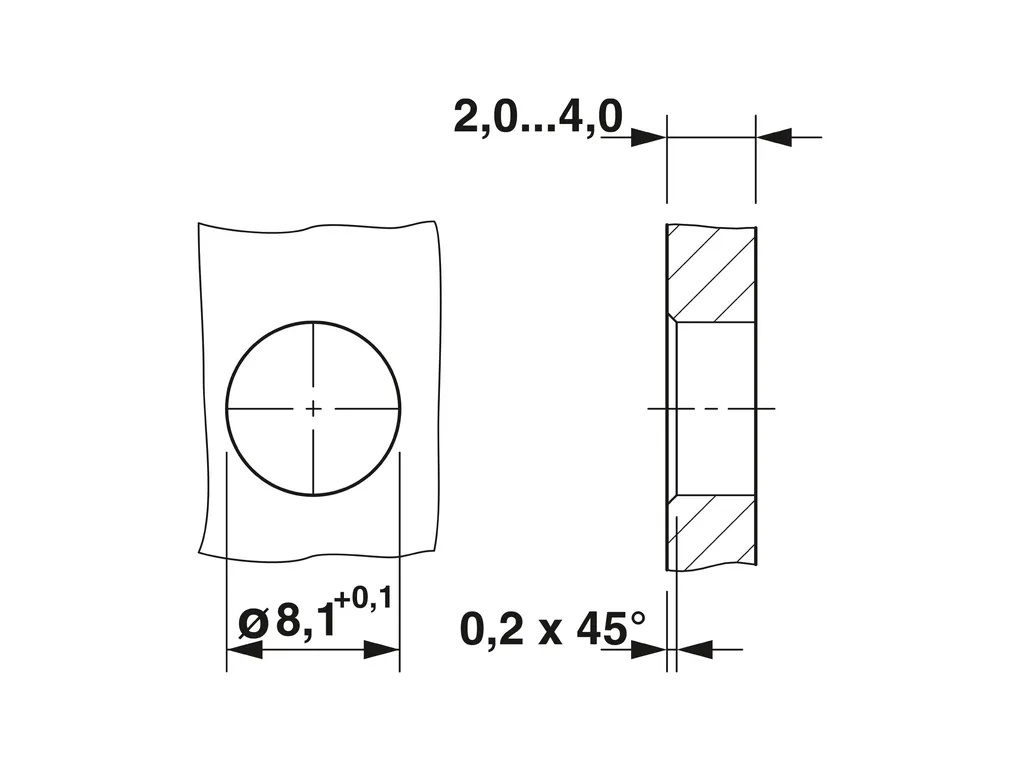

Mounting	Mounting type: Rear mounting M8 x 1 With flat nut Assembly instructions: With flat nut Connection method: Wave soldering
Product properties	Product type: Circular connectors (device side) Number of positions: 5 Shielded: yes Coding: B Thread type: M8 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Contact material: Cu alloy Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 3 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 30 VÃAC 30 VÃDC Nominal current I_N: 3 A
Connection data	Conductor connection Connection method: Wave soldering Contact connection type: Pin
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M8 Coding: B
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C
Standards and regulations	Standard designation: M8 connector Standards/specifications: IEC 61076-2-104
