| Product properties | Product type: T-distributor Sensor type: PROFIBUS DP Number of positions: 5 No. of cable outlets: 2 Shielded: yes Coding: B Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Electrical properties | Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 1 A (Contact 2 and 4) 4 A (Contact 1 and 3) Transmission medium: Copper |
| Interfaces | Signal type/category: PROFIBUS DP, 12 Mbps |
| Signaling | Status display: No Status display present: No |

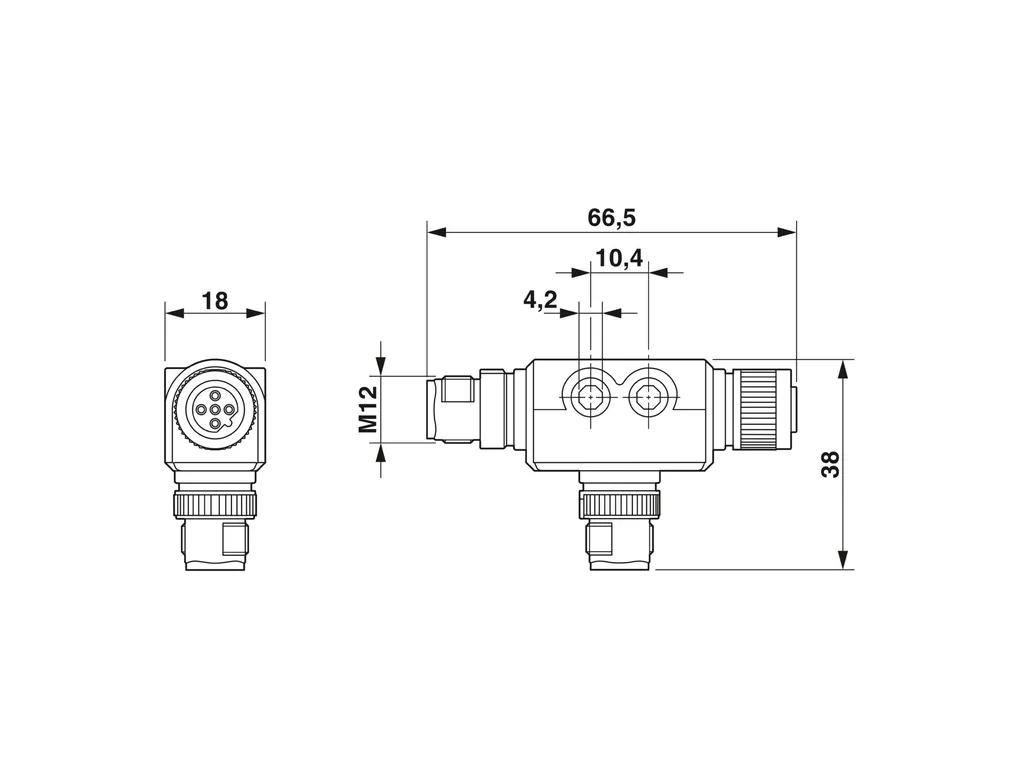

| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22468/full/b250?format=jpg Height: 18 mm Length: 66.5 mm |
| Material specifications | Material: PBT PA Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: PBT Contact material: CuZn (pin) / CuSn (socket) Contact surface material: Ni/Au Material for screw connection: Zinc die-cast, nickel-plated |
| Connector | Connection 1 Type: Socket straight M12 Coding type: B Connection 2 Type: Plug straight M12 Coding type: B |
| Cable/line | Signal type/category: PROFIBUS DP, 12 Mbps |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: according to IEC 61076-2-101 |
