| Product properties | Product type: Power cable Number of positions: 4 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: L Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 63 VÃDC Nominal current IN: 12 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Coding type: L (Power) |

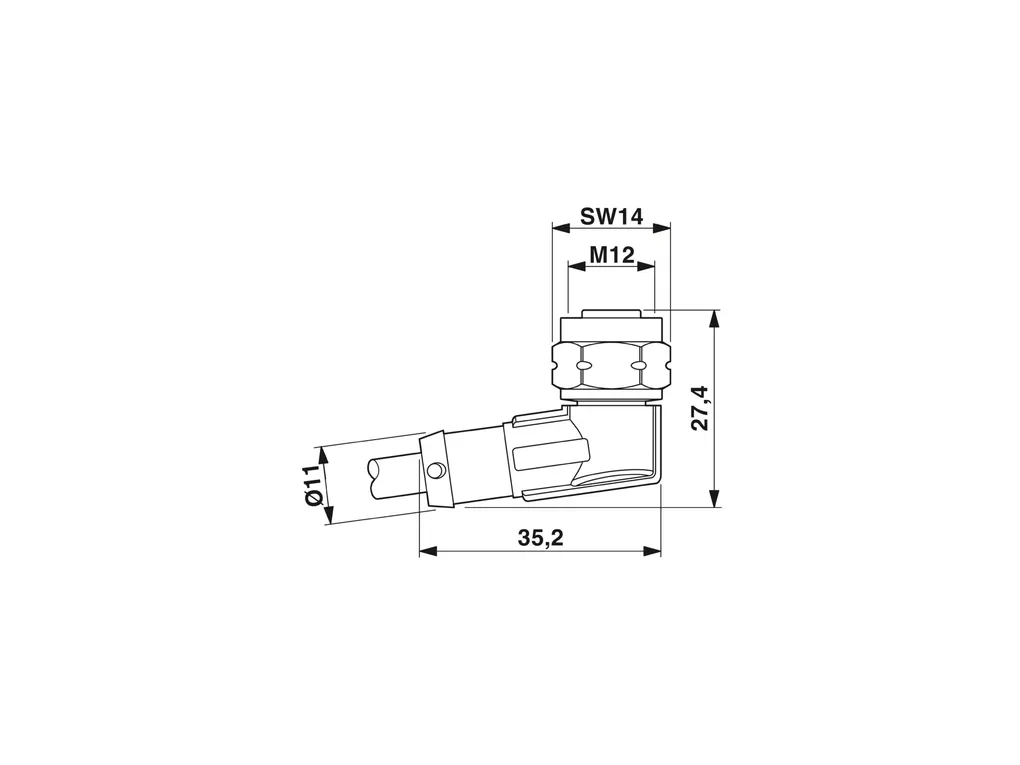

| Cable/line | Cable length: 10 m PVC 1.5Ãmm² blackÃ[110] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/04fecc310a8a9344868613bd6ccb8ab7/-S204x204-FJPG UL AWM Style: 20233 / 10493 (80°C/300 V) Number of positions: 4 Shielded: no Cable type: PVC 1.5Ãmm² blackÃ[110] Conductor cross section: 4x 1.5 mm² Wire diameter incl. insulation: 2.35 mm ñ0.05 mm External cable diameter: 7.55 mm ñ0.25Ãmm Outer sheath, material: PVC External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, white, blue, black Thickness, insulation: ââ°¥ 0.25 mm Thickness, outer sheath: approx. 1.3 mm Max. conductor resistance: ââ°¤ 13 é/km (at 20ðC) Insulation resistance: ââ°¥ 1 Gé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC (Spark test) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 2000000 Flame resistance: According to ULÃ758/1581 (Cable Flame) according to ULÃ758/1581 FT1 According to DINÃENÃ60332-1-2 Resistance to oil: according to DINÃENÃ60811-404, 168Ãh at 60ðC Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
