SAC-5P-20,0-547/FR SCO BK - Sensor/actuator cable

Sensor/actuator cable, 5-position, PVC, yellow, free cable end, on Socket angled M12, coding: A, cable length: 20 m

Cod. Articolo: 1425124 copia - copy

Cod. Fornitore: 1425124 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable Number of positions: 5 Application: Standard, U.S. cables No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: TPU GF Material for screw connection: Zinc die-cast, nickel-plated Outer sheath, material: PVC
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 10 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Protective circuit: unwired
Signaling	Status display: No Status display present: No
Connection data	Conductor connection Tightening torque: 0.4 Nm (M12 connector)
Connector	Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 Number of positions: 5 Coding type: A

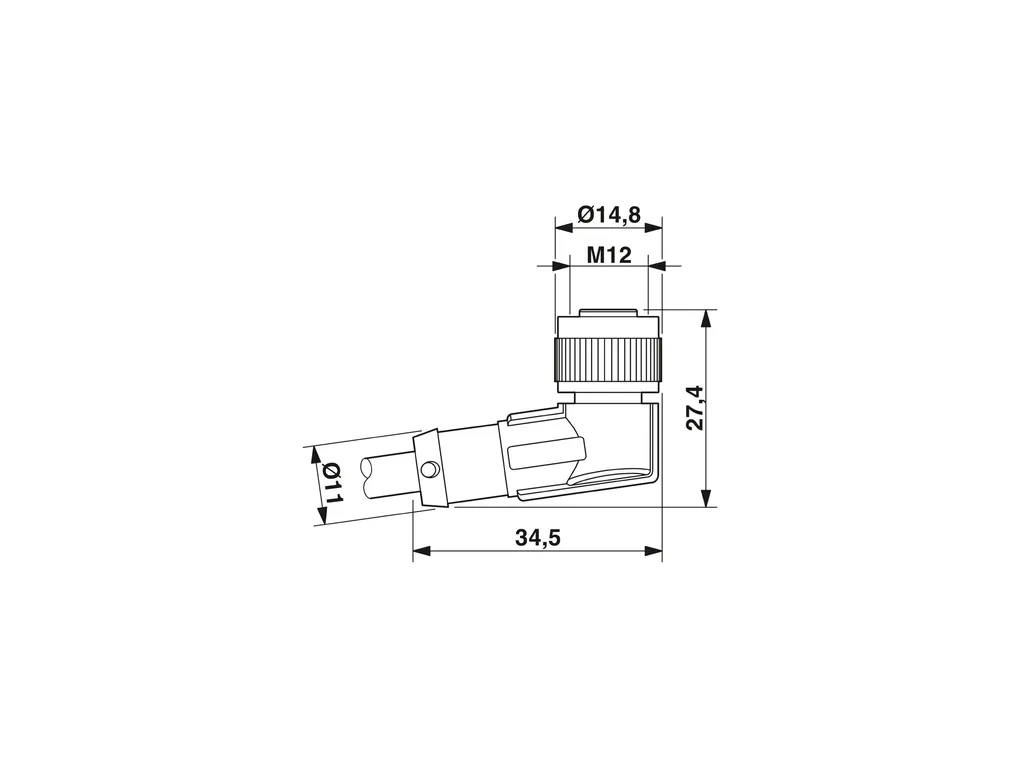

Cable/line	Cable length: 20 m PVC AWGÃ18 yellowÃ105°CÃ[547] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/56149fb3698c494f9194d5a685dff32b/-S204x204-FJPG UL AWM Style: 2517 (105Ã°C / 300ÃV) Number of positions: 5 Shielded: no Cable type: PVC AWGÃ18 yellowÃ105°CÃ[547] Conductor structure signal line: 41x 0.16 mm AWG signal line: 18 Wire diameter incl. insulation: 1.7 mm Ã±0.03Ãmm External cable diameter: 6.6 mm Ã±0.2Ãmm Outer sheath, material: PVC External sheath, color: yellow Conductor material: Tin-plated Cu litz wires Material, filler: PP Material wire insulation: PVC Single wire, color: brown, white, blue, black, gray Overall twist: 5 wires around filler to the core Nominal voltage, cable: 300 V Minimum bending radius, fixed installation: 8 x D Flame resistance: FT4 Special properties: C(UL) CMX OUTDOOR-CMG 105Ã°C UL ITC/PLTC 105Ã°C CSA AWM I/II A/B FT4 105Ã°C / 300ÃV Ambient temperature (operation): -30°C ... 105°C (cable, fixed installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP68 Ambient temperature (operation): -25°C ... 90°C (Plug / socket)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
