1425147 PHOENIX CONTACT -

SAC-5P-M12MS/1,5-92X/M12FSSHOD - Bus system cable

Bus system cable, CANopen^®, DeviceNetÃ¢â¢, 5-position halogen-free, shielded, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 1.5 m, for outdoor applications, with high-grade steel knurl

Cod. Articolo: 1425147 copia - copy

Cod. Fornitore: 1425147 copia - copy

PHOENIX CONTACT

Product properties	Product type: Data cable preassembled Sensor type: CANopen^Ã® Number of positions: 5 Application: External areas No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Degree of pollution: 3
Interfaces	Bus system: CANopen^Ã®/DeviceNetÃ¢Ã¢¢ Signal type/category: CANopen^Ã® DeviceNetÃ¢Ã¢¢
Signaling	Status display: No Status display present: No
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A Protective circuit: unwired Transmission medium: Copper
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100
Material specifications	Flammability rating according to UL 94: V0 Seal material: FPM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel
Connector	Connection 1 Type: Plug straight M12 Number of positions: 5 Coding type: A (Standard) Connection 2 Type: Socket straight M12 Number of positions: 5 Coding type: A (Standard)

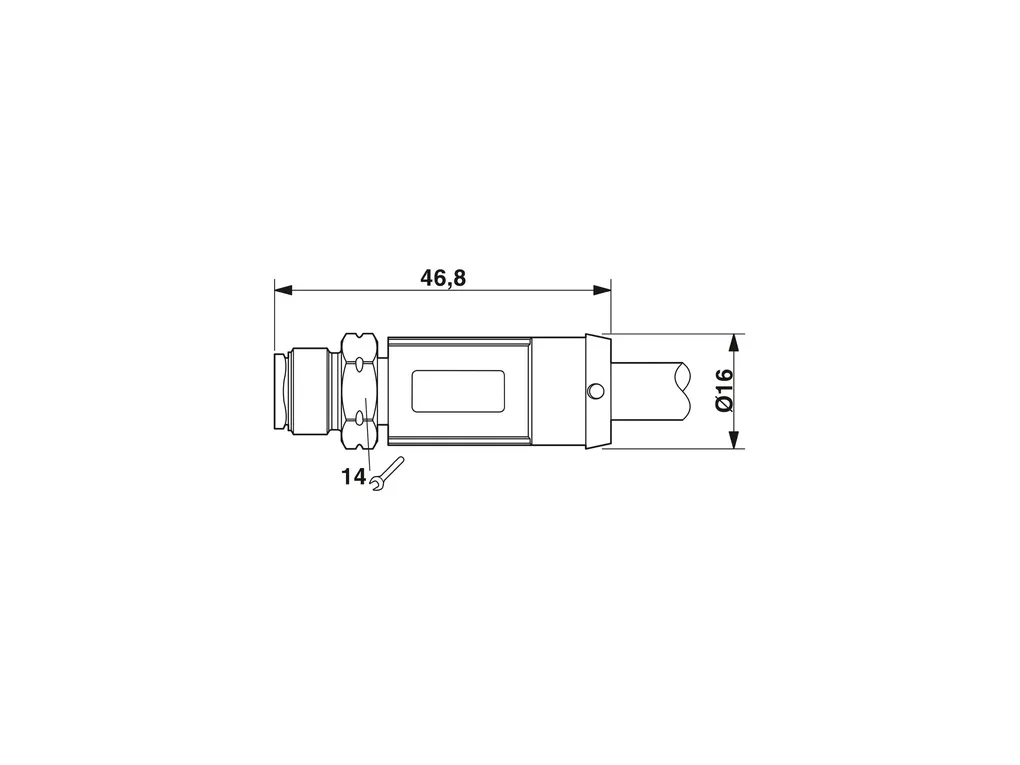

Cable/line	Cable length: 1.5 m CANopen Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1e68ea1d8c29454c8e7e36d658f91c6e/-S204x204-FJPG Cable weight: 70 kg/km UL AWM Style: 21281 (80°C/300 V) Number of positions: 4 Shielded: yes Cable type: CANopen^Ã®/DeviceNetÃ¢Ã¢¢ outdoor installation, FRNC, blackÃ[92X] Conductor structure: 2xAWG24/19+2xAWG22/19 Signal runtime: 4.46 ns/m Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Signal) 2x 0.34 mm² (Power) 1x 0.38 mm² (Drain wire) Wire diameter incl. insulation: 1.9 mm (Signal) 1.4 mm (Power) External cable diameter: 6.9 mm Ã±0.3Ãmm Outer sheath, material: FRNC External sheath, color: black Conductor material: Tin-plated Cu litz wires Material wire insulation: PE Single wire, color: red-black, blue-white Thickness, insulation: 0.6 mm (Signal) 0.3 mm (Power) Thickness, outer sheath: 1.15 mm Twisted pairs: 2 cores to the pair Type of pair shielding: Aluminum-lined foil Overall twist: 2 pairs around a drain wire in the center to the core Optical shield covering: 70 % Max. conductor resistance: 90 Ã©/km (Signal) 55 Ã©/km (Power) Insulation resistance: Ã¢Ã¢°¥ 200 MÃ©*km (at 20Ã°C) Wave impedance: 120 Ã© Ã±12ÃÃ© (f = 1 MHz) Working capacitance: 39.8 nF (at 1 kHz, core/core) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Halogen-free: yes Flame resistance: According to IEC 60332-3-25 (Cat. D) Resistance to oil: yes Other resistance: UV resistant Ambient temperature (operation): -40°C ... 105°C Ambient temperature (installation): -40°C ... 105°C
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP68 Ambient temperature (operation): -40°C ... 105°C (Plug / socket) -40°C ... 85°C (On sudden changes in temperature (according to IEC 60512-11-4))
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
