| Product properties | Product type: Sensor/actuator cable Number of positions: 12 Application: Standard No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Material of grip body: TPU, hardly inflammable, self-extinguishing Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 30 VÃAC 30 VÃDC Nominal current IN: 1.5 A Protective circuit: unwired |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |

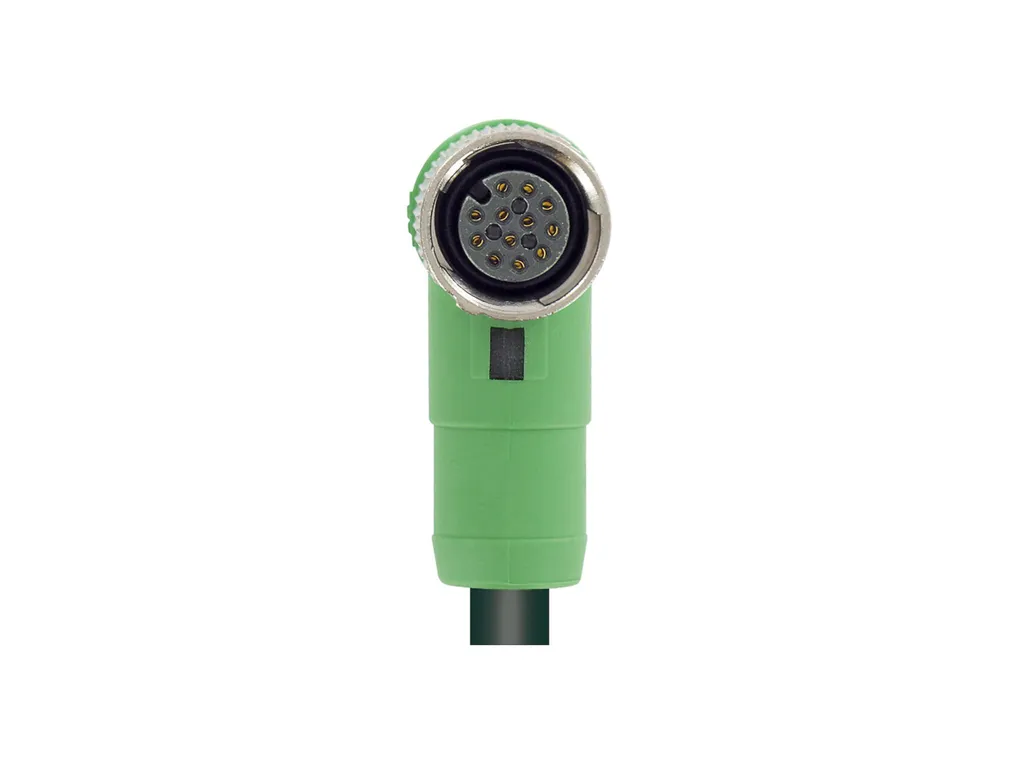

| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket angled M12 SPEEDCON Number of positions: 12 Coding type: A Locking type: SPEEDCON |
| Cable/line | Cable length: 10 m Black PUR/PVC twisted pairÃ[35T] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/97f04793c00c884ea3682368c5f96ea1/-S204x204-FJPG Cable weight: 87 kg/km UL AWM Style: 20233 / 1061 (80°C/300 V) Number of positions: 12 Shielded: yes Cable type: Black PUR/PVC twisted pairÃ[35T] Conductor structure signal line: 18x 0.10 mm AWG signal line: 26 Conductor cross section: 12x 0.14 mm² (Signal line) Wire diameter incl. insulation: 1 mm ñ0.05 mm (Signal line) External cable diameter: 8.5 mm ñ0.2Ãmm Outer sheath, material: PUR External sheath, color: black RALÃ9005 Conductor material: Tin-plated Cu litz wires Material wire insulation: PVC Single wire, color: white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue Twisted pairs: 2 cores to the pair Overall twist: Six pairs around the filler to the core Optical shield covering: 85 % Max. conductor resistance: ââ°¤ 142 é/km (at 20ðC) Insulation resistance: ââ°¥ 10 Mé*km (at 20ðC) Nominal voltage, cable: 42 VÃAC Test voltage: 1500 VÃAC Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 2000000 Flame resistance: According to DINÃENÃ60332-1-2 According to VW-1 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: hydrolysis and microbe resistant in accordance with ENÃ50396 Special properties: Flexible cable conduit capable Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
