| Notes | General: Further products with variable cable type and variable cable length can be found in the accessories section |
| Product properties | Product type: Data cable preassembled Sensor type: FOUNDATION Fieldbus Number of positions: 3 Application: Process technology No. of cable outlets: 1 Shielded: yes Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Bus system: FOUNDATION Fieldbus Signal type/category: FOUNDATION Fieldbus, 31.25 kbps |
| Signaling | Status display: No Status display present: No |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 48 VÃAC 60 VÃDC Nominal current IN: 4 A Transmission medium: Copper |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR |
| Connection data | Pin assignment Contact | Color (signal designation) | Contact (optional): 1 (Plug) | BU (DATA-) 2 (Plug) | OG (DATA+) 3 (Plug) | SR (shield) |
| Connector | Connection 1 Type: Plug straight M12 Number of positions: 3 Coding type: A (Standard) Material: CuSn (Contact) Ni/Au (Contact surface) TPU GF (Contact carriers) TPU, hardly inflammable, self-extinguishing (Grip) Stainless steel (Screw connection) Ambient temperature (operation): -25°C ... 90°C Connection 2 Type: free cable end |

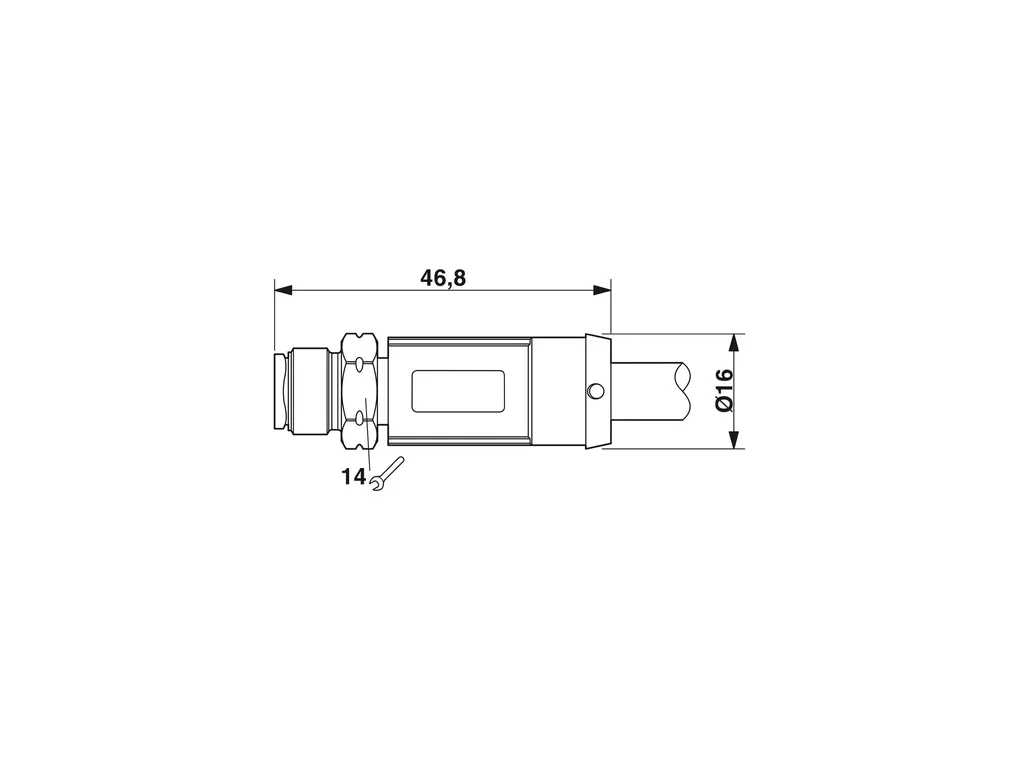

| Cable/line | Cable length: 10 m FOUNDATION Fieldbus orangeÃ[960] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/53fdd1e616df3741873337c2fd15c293/-S204x204-FJPG Cable weight: 56.552 kg/km Number of positions: 2 Shielded: yes Cable type: FOUNDATION Fieldbus orangeÃ[960] Conductor structure: 2xAWG18/7 + 1xAWG20/7 Signal speed: 0.66 c Conductor structure signal line: 7x 0.40 mm AWG signal line: 18 Conductor cross section: 2x 0.75 mm² (Signal line) 1x 0.5 mm² (Drain wire) Wire diameter incl. insulation: 2.24 mm ñ0.05 mm External cable diameter: 7.5 mm ñ0.25Ãmm Outer sheath, material: PVC External sheath, color: orange RALÃ2003 Conductor material: Tin-plated Cu litz wires Material wire insulation: PO (Signal line) Single wire, color: blue, orange Thickness, insulation: 0.5 mm Thickness, outer sheath: 1 mm Twisted pairs: 2 cores to the pair Overall twist: One pair with one drain wire and fillers for core Optical shield covering: 100 % Max. conductor resistance: ââ°¤ 19.35 é/km (Signal line) 26 é/km (shield) Cable capacity: 147 pF/m (at 1 kHz, core/shield) ââ°¤ 3.94 pF/m (capacitance unbalance) Working capacitance: 78 nF (at 1 kHz) Cable impedance: 100 é ñ20Ã% (At 31.25 kHz) Nominal voltage, cable: 300 V Smallest bending radius, fixed installation: 75 mm Tensile strength: 260 N Shield attenuation: 3 dB/km (at 39 kHz) Flame resistance: ULÃ1685 (CSA FT 4) ULÃ1685 (vertical tray) ULÃ1666 (riser) Special properties: UL standards PLTC-ER and ITC Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K |
