1435357 PHOENIX CONTACT -

SAC-3P-MR/ 1,5-PUR/B-1L-Z SCO - Sensor/actuator cable

Sensor/actuator cable, 3-position halogen-free, Plug angled M12, coding: A SPEEDCON, with 1 LED, connected with Z diode, on Valve connector B (10mm), with 1 LED, connected with Z diode, cable length: 1.5 m

Cod. Articolo: 1435357 copia - copy

Cod. Fornitore: 1435357 copia - copy

PHOENIX CONTACT

Product properties	Product type: Sensor/actuator cable with valve connector Number of positions: 3 Application: Standard No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: III Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: TPU Material housing valve plug: TPU Material of grip body: TPU Contact material: CuSn Contact surface material: Ni/Au Sn Contact carrier material: TPU GF Valve plug contact insert material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 24 VÃAC 24 VÃDC Nominal current I_N: 4 A Protective circuit: Z diode Valve connector characteristics Fixing screws: M3 x 29 Pulse power: 40 W (at 100ÃÃµs square-wave pulse) Terminal voltage: 70 V (at 2ÃmA constant current) Reverse voltage: 50 V
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢Ã¢°¥ 100 (M12 connector)
Signaling	Status display: 1 LED Status display present: Yes
Connector	Connection 1 Type: Plug angled M12 SPEEDCON Number of positions: 3 Coding type: A Locking type: SPEEDCON Connection 2 Type: Valve connector B (10Ãmm) Number of positions: 3 Material: CuSn (Contact) Sn (Contact surface) PA 6.6 (Contact carriers) TPU (Housing)

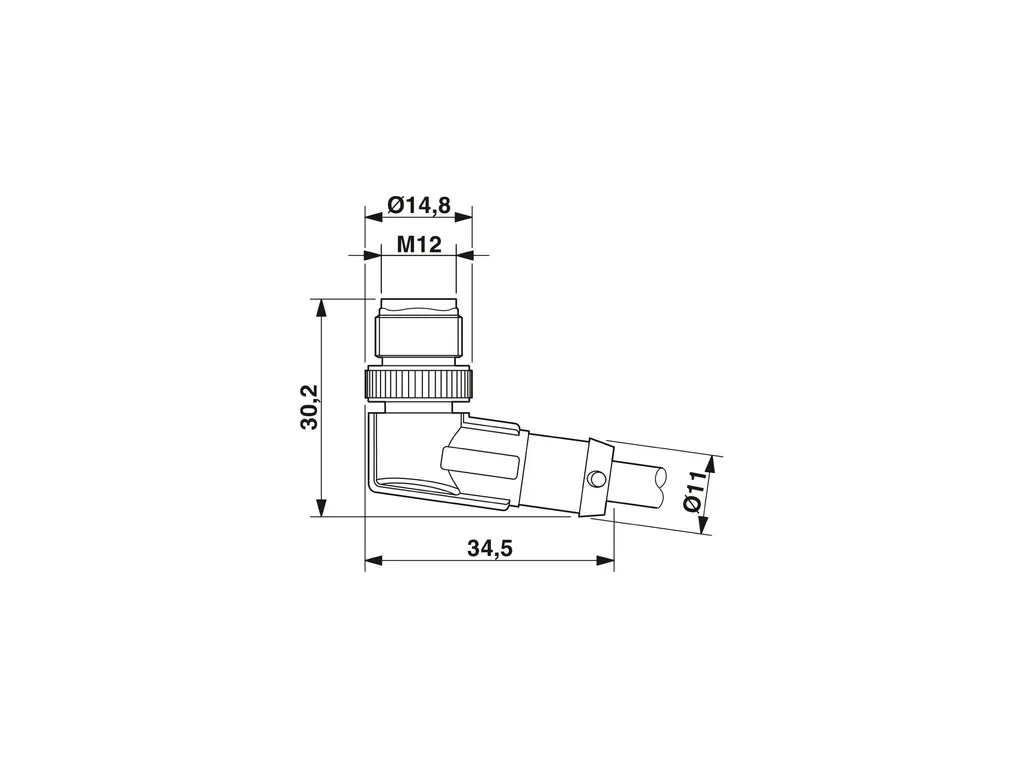

Cable/line	Cable length: 1.5 m PUR halogen-free blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ec2739db2b7a449beeded92db81a494/-S204x204-FJPG Cable weight: 30 kg/km UL AWM Style: 20549 Number of positions: 3 Shielded: no Cable type: PUR halogen-free blackÃ[PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 3x 0.5 mm² Wire diameter incl. insulation: 1.5 mm Ã±0.05 mm (Signal line) External cable diameter: 4.5 mm Ã±0.2Ãmm Outer sheath, material: PUR External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, green/yellow Overall twist: 3 wires, twisted Max. conductor resistance: 39 Ã©/km (at 20Ã°C) Insulation resistance: min. 20 MÃ©*km Nominal voltage, cable: Ã¢Ã¢°¤ 300 V Test voltage: Ã¢Ã¢°¥ 1200 V Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 22.5 mm Smallest bending radius, movable installation: 45 mm Max. bending cycles: 15000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃVDEÃ0482 According to DINÃENÃ50265-2-1 Resistance to oil: in accordance with DIN EN 60811-2-1 Other resistance: largely oil-resistant partly UV-resistant in accordance with DINÃENÃISOÃ4892-2-A Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -20°C ... 85°C (valve plug) -40°C ... 80°C (cable, fixed installation) -15°C ... 80°C (Cable, flexible installation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803
