1437232 PHOENIX CONTACT -

SACB-8/16-L-C SCO OTB - Distributor box

Distributor box, application: Standard, connection method: M12-SPEEDCON-socket Metal, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: Yes, pnp; master cable connection: Rear plug-in spring connection 270°, shielding: no

Cod. Articolo: 1437232 copia - copy

Cod. Fornitore: 1437232 copia - copy

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 8 Coding: A LED: yes
Material specifications	Material: Die-cast zinc PBT PUR Seal material O-ring: NBR Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: tin-plated

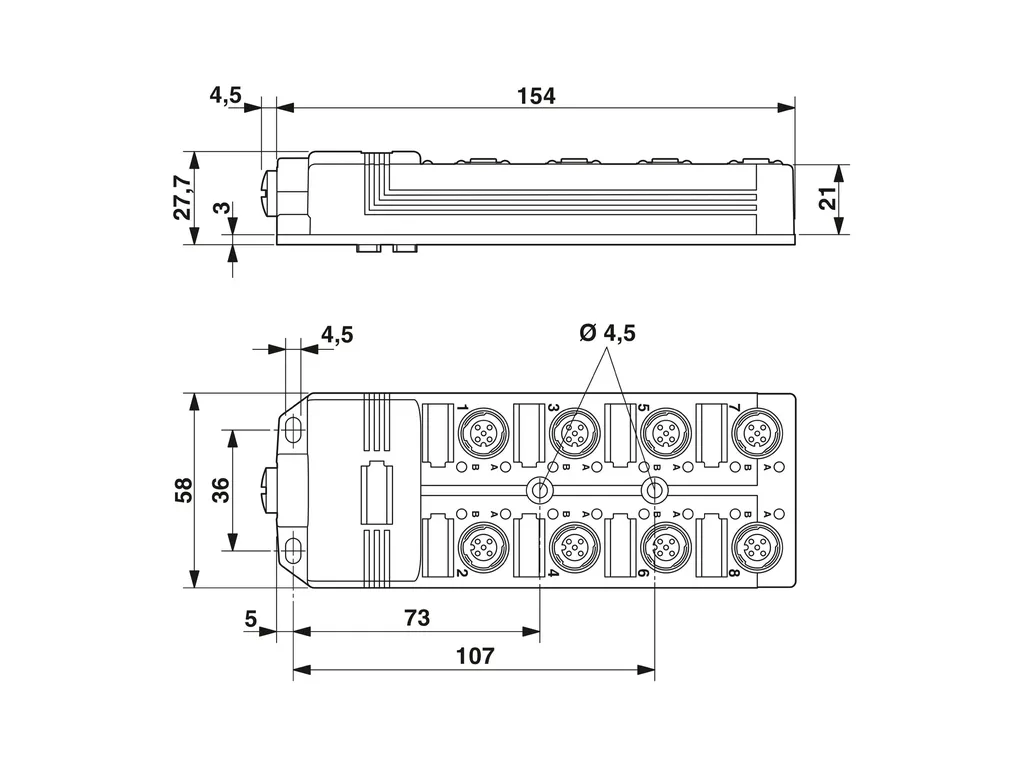

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/985b60c5fd17a24b94c59c953216ad33/-S204x204-FJPG Width: 58 mm Height: 28 mm Length: 159 mm
Connection data	Conductor connection Connection method: Rear plug-in spring connection Stripping length: 9 mm Conductor cross section Flexible signal line: 0.14 mm² ... 1.5 mm² Conductor cross section Flexible power supply: 0.14 mm² ... 1.5 mm² Connection cross section AWG Flexible signal line: 26 ... 16 Connection cross section AWG Flexible power supply: 26 ... 16 Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)Ã=Ã1 / 4 1 / 2 (B)Ã=Ã1 / 2 2 / 4 (A)Ã=Ã2 / 4 2 / 2 (B)Ã=Ã2 / 2 3 / 4 (A)Ã=Ã3 / 4 3 / 2 (B)Ã=Ã3 / 2 4 / 4 (A)Ã=Ã4 / 4 4 / 2 (B)Ã=Ã4 / 2 5 / 4 (A)Ã=Ã5 / 4 5 / 2 (B)Ã=Ã5 / 2 6 / 4 (A)Ã=Ã6 / 4 6 / 2 (B)Ã=Ã6 / 2 7 / 4 (A)Ã=Ã7 / 4 7 / 2 (B)Ã=Ã7 / 2 8 / 4 (A)Ã=Ã8 / 4 8 / 2 (B)Ã=Ã8 / 2 1-8 / 1 (+ 24 V)Ã=ÃU_N 1-8 / 3 (0 V)Ã=Ã0 V 1-8 / 5 (PE)Ã=ÃPE
Signaling	Status display present: Yes
Electrical properties	Max. operating voltage U_max: 30 VÃDC Local diagnostics: Supply voltage Green LED Status display I/O Yellow LED Nominal voltage U_N: 24 VÃDC Rated current, total: 8 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12-SPEEDCON-socket Connection method: Rear plug-in spring connection Stripping length (signal): 9 mm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
Environmental and real-life conditions	Ambient conditions Degree of protection: IP54 (with sealed mounting holes) Ambient temperature (operation): -30°C ... 80°C Ambient temperature (storage/transport): -30°C ... 90°C
