1437533 PHOENIX CONTACT -

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢Ã¢¬¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢Ã¢¬¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. Ã¢Ã¢¬¢ The products are suitable for applications in plant, controller, and electrical device engineering. Ã¢Ã¢¬¢ When operating the connectors in outdoor applications, they must be separately protected against environmental influences. Ã¢Ã¢¬¢ Assembled products may not be manipulated or improperly opened. Ã¢Ã¢¬¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢Ã¢¬¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢Ã¢¬¢ For operating voltages > 50ÃV AC, conductive connector housings must be grounded Ã¢Ã¢¬¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢Ã¢¬¢ Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product Ã¢Ã¢¬¢ Only use tools recommended by PhoenixÃContact Ã¢Ã¢¬¢ Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products Ã¢Ã¢¬¢ Ensure that the protective or functional ground has been properly connected. Ã¢Ã¢¬¢ VDE 0100/1.97 Ã§ 411.1.3.2 and DIN EN 60 204/11.98 Ã§ 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢Ã¢¬¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Mounting	Mounting type: Rear mounting Connection method: Cable connection
Product properties	Product type: Circular connectors (device side) Sensor type: CANopen^Ã® Number of positions: 5 No. of cable outlets: 1 Shielded: yes Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Outer sheath, material: PUR
Electrical properties	Rated surge voltage: 1.5 kV Insulation resistance: 100 MÃ© Nominal voltage U_N: 48 VÃAC 60 VÃDC Nominal current I_N: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) Transmission medium: Copper
Connection data	Conductor connection Connection method: Cable connection Contact connection type: Socket Tightening torque: 2 Nm 3 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: A Connection 2 Head design: free cable end

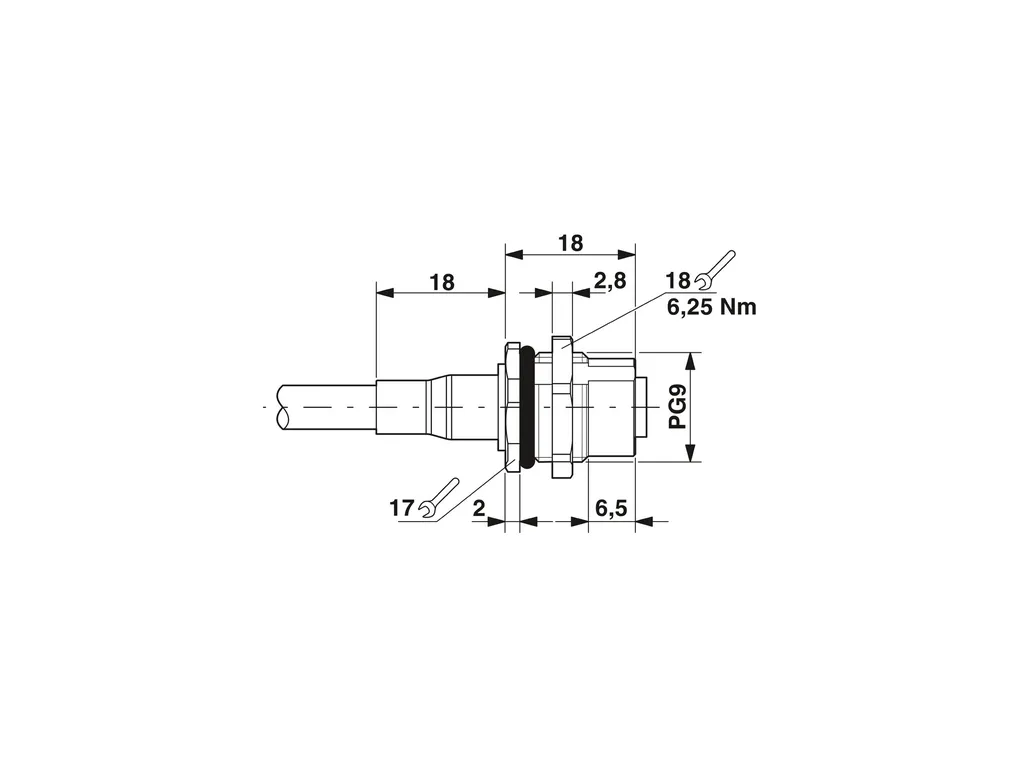

Cable/line	Cable length: 1 m CANopen Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fc78069afd463243880387c2e14a096e/-S204x204-FJPG Cable weight: 90 kg/km UL AWM Style: 21198 (80°C/300 V) Number of positions: 4 Shielded: yes Cable type: CANopen^Ã®/DeviceNetÃ¢Ã¢¢, PUR, violetÃ[920] Conductor structure: 2xAWG24/19+2xAWG22/19 Conductor structure signal line: 19x 0.13 mm AWG signal line: 24 Conductor cross section: 2x 0.25 mm² (Data cable) 2x 0.34 mm² (Power supply) 1x 0.34 mm² (Drain wire) Wire diameter incl. insulation: 1.95 mm Ã±0.05 mm (Data cable) 1.4 mm Ã±0.05 mm (Power supply) External cable diameter: 6.7 mm Ã±0.3Ãmm Outer sheath, material: PUR External sheath, color: red lilac RAL 4001 Conductor material: Tin-plated Cu litz wires Material wire insulation: Foamed PE (Data cable) PE (Power supply) Single wire, color: red-black, blue-white Twisted pairs: 2 cores to the pair Type of pair shielding: Plastic-coated aluminum foil, aluminum side outside Overall twist: 2 pairs around a drain wire in the center to the core Optical shield covering: 80 % Insulation resistance: Ã¢Ã¢°¥ 5 GÃ©km (Data cable) Ã¢Ã¢°¥ 5 GÃ©km (Power supply) Loop resistance: Ã¢Ã¢°¤ 181.80 Ã©/km (Data cable) Ã¢Ã¢°¤ 114.80 Ã©/km (Power supply) Wave impedance: 120 Ã© Ã±10Ã% (with 1 MHz) Cable capacity: nom. 40 nF/km (Data cable) Nominal voltage, cable: Ã¢Ã¢°¤ 300 V (Peak value, not for high-power applications) Test voltage Core/Core: 2000 V (50ÃHz, 1Ãmin.) Test voltage Core/Shield: 2000 V (50ÃHz, 1Ãmin.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 10 x D Smallest bending radius, fixed installation: 34 mm Smallest bending radius, movable installation: 67 mm Max. bending cycles: 5000000 Shield attenuation: Ã¢Ã¢°¤ 22.9 dB/km (with 1 MHz) Ã¢Ã¢°¤ 16.4 dB/km (At 500 kHz) Ã¢Ã¢°¤ 9.5 dB/km (At 125 kHz) Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 according to IEC 60754-1 Flame resistance: ULÃ1581, Section 1060 and ULÃ2556, Section 9.3 (FT1) ULÃ1581, Section 1100 and ULÃ2556, Section 9.1 (HFT/FT2) IEC 60332-1-2 in accordance with ISOÃ6722-1 5.22 (UN ECE-R 118.01) Other resistance: Low adhesion Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -30°C ... 70°C (Cable, flexible installation) -20°C ... 60°C (for installation) -20°C ... 60°C (cable, drag chain applications)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation)
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
