| Product properties | Product type: Sensor/actuator cable with valve connector Number of positions: 5 Application: Standard No. of cable outlets: 1 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: TPU Material housing valve plug: TPU Contact material: CuSn Valve plug contact insert material: PA 6 Contact surface material: Sn |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 24 VÃDC Nominal current IN: 4 A Protective circuit: unwired Valve connector characteristics Fixing screws: M3 x 29 |
| Signaling | Status display: 2 LEDs Status display present: Yes |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Valve connector AD (pressure switch) Material: CuSn (Contact) Sn (Contact surface) PA 6 (Contact carriers) TPU (Housing) |

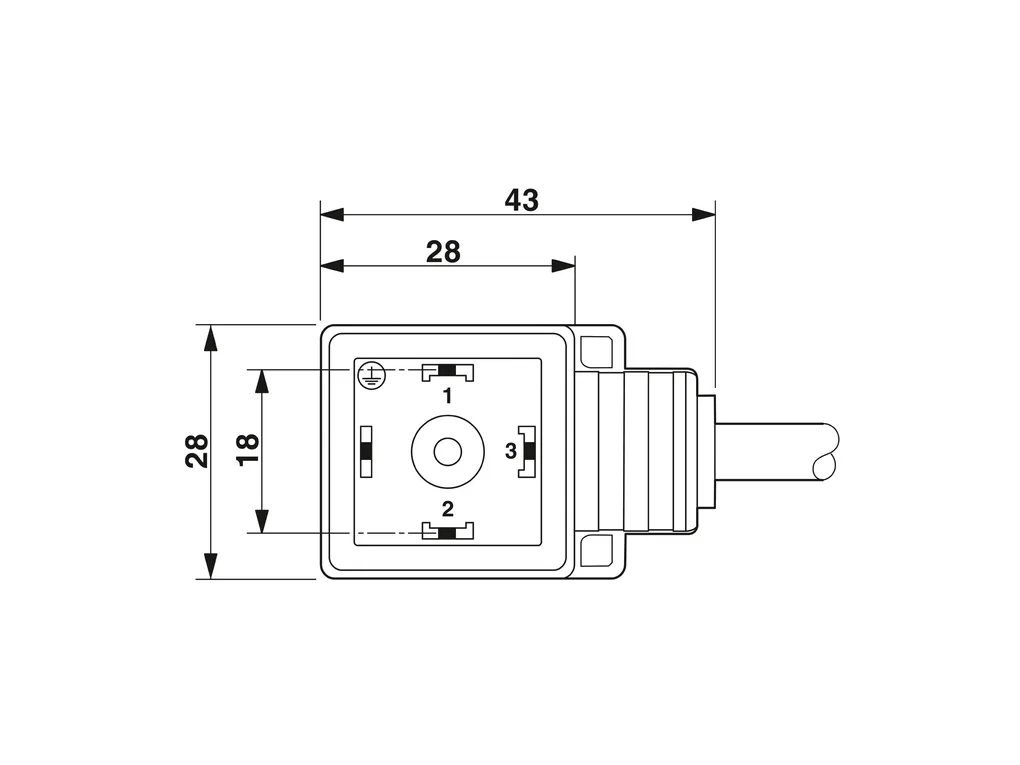

| Cable/line | Cable length: 10 m PVC blackÃ[PVC] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/371531fbb95b0a459b23de0c650e5458/-S204x204-FJPG Cable weight: 58.7 kg/km UL AWM Style: 2464 Number of positions: 5 Shielded: no Cable type: PVC blackÃ[PVC] Conductor structure signal line: 16x 0.20 mm AWG signal line: 20 Conductor cross section: 5x 0.5 mm² Wire diameter incl. insulation: 1.5 mm ñ0.05 mm External cable diameter: 5.6 mm ñ0.2Ãmm Outer sheath, material: PVC External sheath, color: black Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: black 1, black 2, black 3, black 4, green/yellow Overall twist: 5 cores, twisted Max. conductor resistance: 39 é/km (at 20ðC) Insulation resistance: ââ°¥ 20 Mé*km Nominal voltage, cable: 300 V Test voltage: 1200 V Minimum bending radius, fixed installation: 5 x D Flame resistance: DINÃVDEÃ0482 DINÃENÃ50265-2-1 Resistance to oil: largely oil-resistant Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 85°C (valve plug) -25°C ... 80°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) |
| Standards and regulations | Valve connector Standard designation: Valve connector Standards/specifications: ENÃ175301-803 |
